58CBM 50 Tons Aluminum Semi Trailer Trucks Stainless Steel For Lpg Transport
58CBM 50tons aluminum fuel tank semi trailer stainless steel lpg tank trailers for lpg transport
All specification and design can be customized !
We can provide main LPG/LNG products as below:
1)LPG/LNG storage tank volume from 5m3 to 200m3
2)LPG/LNG semi trailer from 24m3 to 60m3
3) LPG/LNG transporation truck from 5.5m3 to 35.5m
4)LPG /LNG Skid Station:20m3 to 60m3
| Technical Parameter for China Liquid Propane Gas Transport 3 Axle 35CBM LPG Trailer | |
| Function | Transport LPG, Butane, Propane etc |
| Fluid property | flammable |
| Diemension: | |
| Truck size | 8613*2500*3700 mm |
| Wheelbase | 5720+1320 mm |
| Rear track | 1840/1840 mm |
| Total mass | 24T |
| Curb weight | 11.4T |
| Loading mass | 14T |
| Tanker: | |
| Tanker volume | 35000L |
| Tanker material | Carbon steel Q345R |
| Tanker thickness | 12mm |
| Tanker diameter | 2100mm |
| Tanker design pressure | 1.77Mpa |
| Tanker temperature | -19 to 55 |
| Chassis: | |
| Steel spring NO | -/7/7 Pcs |
| Axle | 3pcs FUWA/BPW brand 13T |
| Landing Gear | Jost 28T |
| Tyres No | 8+1Pcs,4 tubeless |
1. Above parameters is just for your reference, The specific configuration of LPG tank trailer can be adjustable as per your request.
2. We can customize different kinds of LPG tank trailer as per your requirement. Pls contact us freely if any interests.

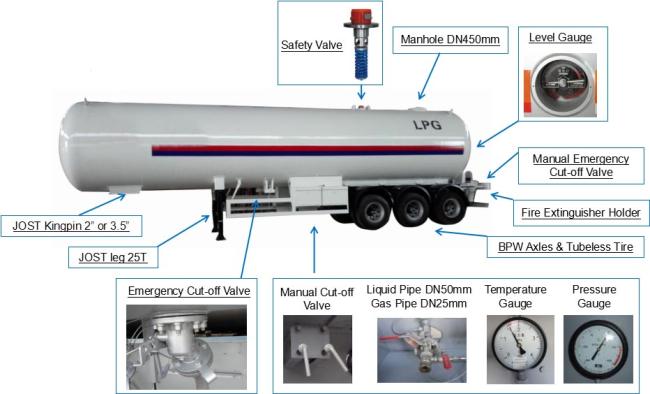

Our LPG tank trailer adopt famous brand spare parts, for example:
1. Chassis: China best quality Q345B-T700 support stronger trailer skeleton
2. Axle: FUWA or BPW axle, support trailer durable.
3. Tire: Triangle brand or other brand tire support LPG tanker trailer running safety and smoothly.
4. King pin: JOST detachable type support durable and fast and easy replace.
