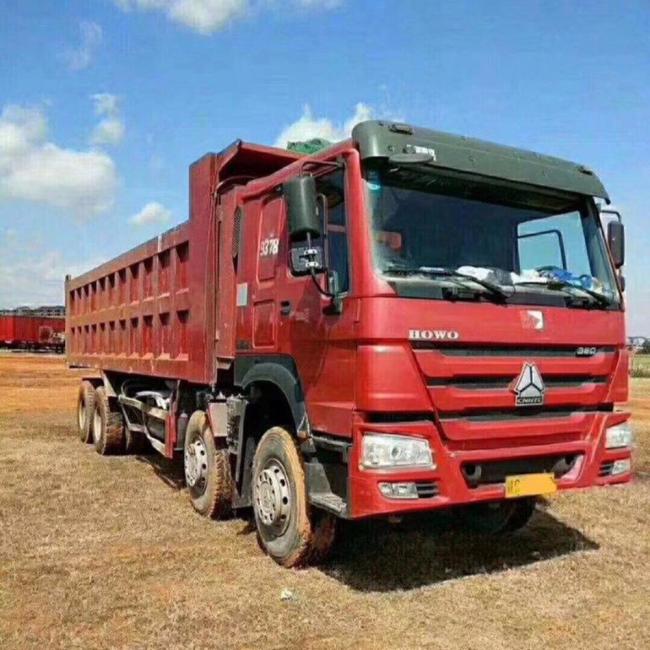

SINOTRUK HOWO Heavy Duty Truck Trailers 371hp 6x4 8545*2496*3450mm
SINOTRUK HOWO 371hp 6x4 new dump truck for sale in Djibouti
1)Engine power:371HP
2)Dimention:8545*2496*3450mm
3)Drive type:6*4
HOWO6x4dump truck,HW76 cab(one bed,air conditioning),WD615.47 SINOTRUK engine
371HP,HW15710 Transmission,8098 Steering system,12.00R20 Tyre.
HOWO DUMP TRUCK SPECIFICATION
| Dimension(Lx W xH)(unloaded)(mm) | 8545×2496×3450 | ||||
| Cargo body size (LxWxH) (mm) | 5600x2300x1500 Sand body,Front lifting(HYVA149), side 6mm bottom 8mm | ||||
Approaching angle/Departure angle(°) | 19/23 | ||||
| Overhang(front/rear) (mm) | 1500/1870 | ||||
| Wheel base (mm) | 3825+1350 | ||||
| Max speed(km/h) (km/h) | 75 | ||||
| Curb weight(kg) | 12270 | ||||
| Loading Weight(kg) | 12600 | ||||
| Total weight (kg) | 25000 | ||||
Engine | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |||
| Fuel type | Diesel | ||||
| Power, max(kw/rpm) | 273/2200 | ||||
| Emission | EUROIII | ||||
| Fuel tanker capacity(L) | 300 | ||||
| Transmission | Model | HW15710 | |||
| Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Steering system | Model | 8098,Right drive. | |||
| Front axle | Steering with double T-cross section beam | ||||
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels | ||||
| Tyre | 12.00R20 | ||||
Electrical system | Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
Cab | HOWO76 cab(one bed,air conditioning), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
