25t Sinotruck HOWO 6X4 Dump Truck / 20cbm Tipper Truck for Sale 25t Sinotruck HO
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
25t Sinotruck HOWO 6X4 Dump Truck / 20cbm Tipper Truck for Sale
Product Description
| Cabin | ZZ3257N4347A | ||
| HW76 cab. Original luxury Volvo cab with one bunk and an A/C. Photo for your reference. | |||
| Vehicle Main Dimensions | L×W×H(mm) | 9525×2500×3450 | |
| Wheel base(front/rear) (mm) | 4325+1350 | ||
| Wheel track (mm) | Rear 1830 | ||
| Approach/Departure angle(°) | 19/21 | ||
| Front / Rear Overhang(mm) | 1500 / 2070 | ||
| Weight in KGS | Tare Weight(kg) | 12400 | |
| Loading Capacity(kg) | 30000 | ||
| Front axles loading capacity(kg) | 1×8000 | ||
| Rear axles loading capacity(kg) | 33000 | ||
| Max.Drinving Speed (km/h) | 75 | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.69 | ||
| Type | 6-cylinder in-line with water cooling; 4-stroke direct injection; Turbo-charging and inter-cooling |
||
| Displacement(ml) | 9726 | ||
| Power (kw) | 247 | ||
| Horse Power(HP) | 336 HP | ||
| Emission Standard | Euro II | ||
| Front Axle | HF9 drum axle. | ||
| Rear Axle | HC16 design overall cast steel axle. | ||
| Gearbox | HW15710. 10 block transmission,10 forwards&2reverse. | ||
| Clutch | Reinforced diaphragm spring clutch, diameter 430mm | ||
| Steering Gear | ZF8098,original made in German. Power steering, hydraulic steering with power assistance. | ||
| Fuel Tank(L) | 300L | ||
| Tire | Eleven units of 12.00R20 Radial tires.(Include one set of spare wheel) | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Dump Body Thickness | Side | 6mm in high tensile strength steel Q345B | |
| Front | 6mm in high tensile strength steel Q345B | ||
| Bottom | 8mm in high tensile strength steel Q345B | ||
| Dump Body Size | L×W×H | 6500mm×2300mm×1500mm | |
| Tipping Hydraulics | Tipping Type | Front tipping type | |
| Tipping System | One set of local brand hydraulics system | ||

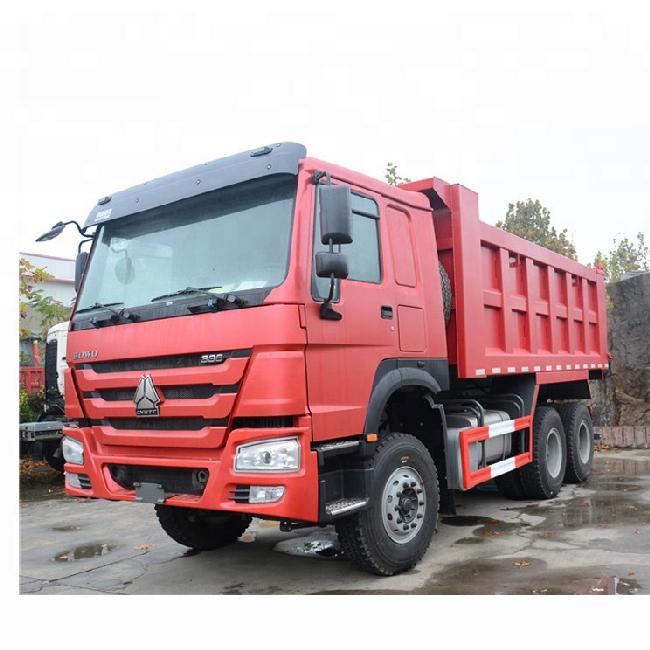

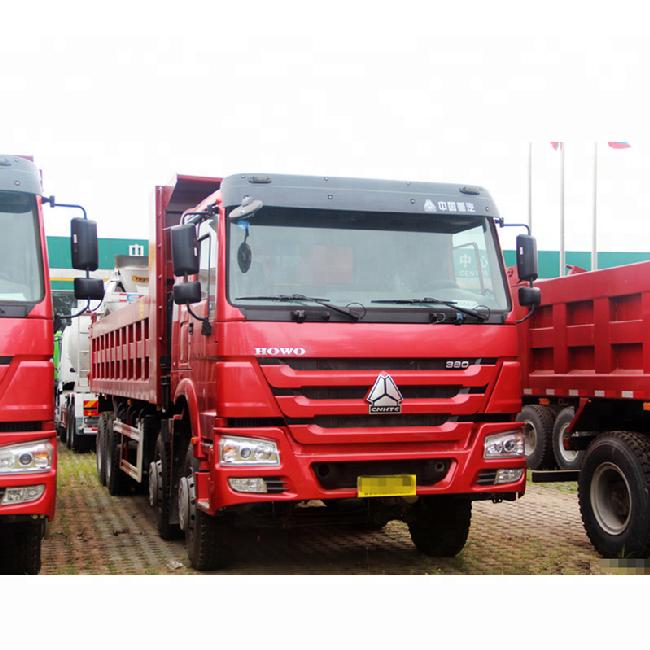

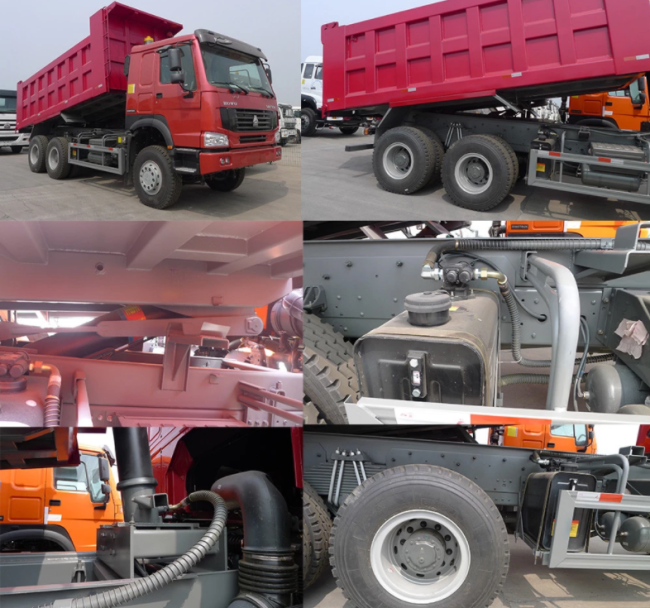

Photos
Our Services
One-step Service,Make You More at Ease:
Professional Production Team:
More Than 300 Experienced Workers,Provide Clients High Assembling for Fast Quality Delivery
Customize:
Professional Design Team Provide Suitable Programs and Customized
Parts Support:
Abundant Parts Supply Provide Lasting Support for Worldwide Clients

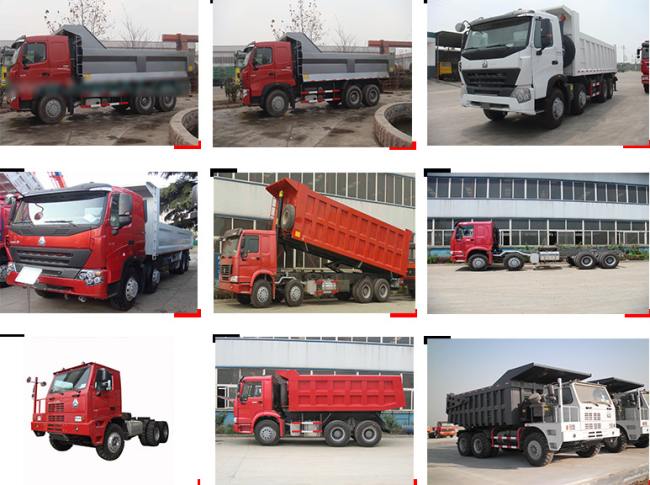

Similar Products
