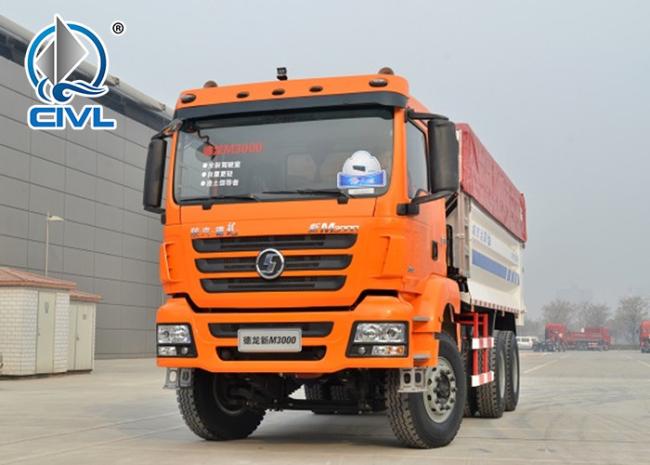

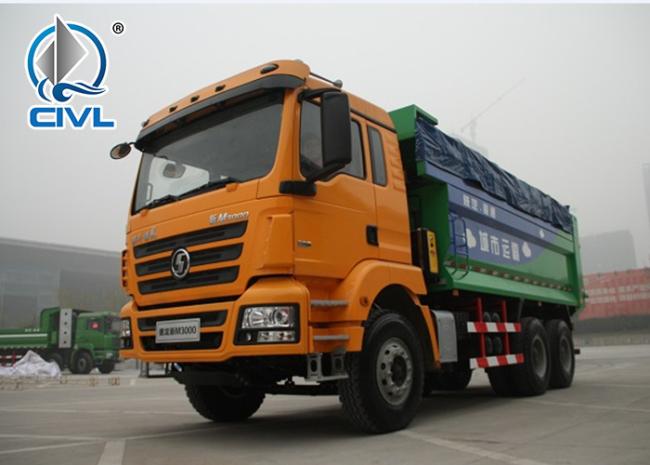

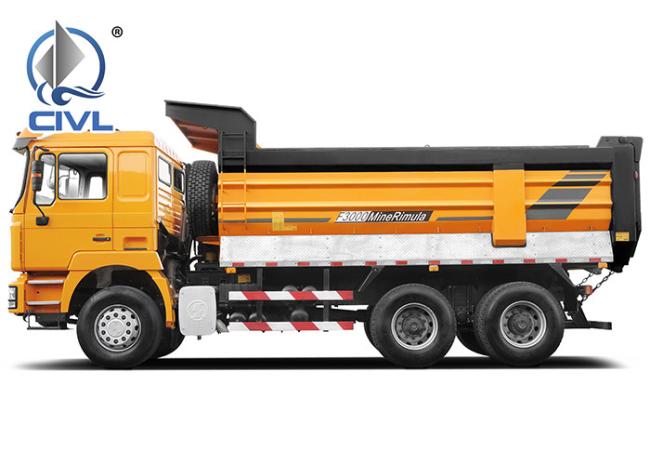

6x4 10 Wheels Shackman Heavy Duty Dump Truck For Mine Manual Transmission
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
Heavy trucks sinotruk howo 6x4 10 wheels Shackman dump trucks for Mine
Product Uses
Dump truck in civil engineering, often combined with excavators, loaders, conveyor and other construction machinery to constitute loading, transport, unloaded production line. It can be used in earthwork, transporting gravel, bulk material handling and transportation work.
Advantages
Dump truck is lifting and self unloading cargo vehicles by hydraulic or mechanical means .
- Comfortable and safe driving spaces, where men work pleasant
- Everyone loves the high salaries of truck
- they can listen to music in the cockpit of trucks.
Product Description
| 6X4 DUMP TRUCK LHD / RHD | ||
| Cabin | HW70 standard cab / HW76 lengthened cab, basic equipment: no / one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle,four points floating air spring suspension and shock absorbers for off-highway vehicle;transverse stability installation,double locking safety belt and external sun shade for various mode. | |
| Engine | Horse power: | 266HP(196KW) |
| Displacement: | 9.726 (L) liter | |
| Max torque: | 1100Nm | |
| Cylinder diameter / stoke: | 126mm/130mm | |
| WD615.62 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG | ||
| Gear box | Model: | HW13710 |
| Speed: | 10drive, 2reverse. Max torque:1390NM | |
| HW13710 SINOTRUK 10 speed manual type transmission, the first shift gear ratio: 14.08, small ratio grade difference and big first shift ratio produce an excellent performance on start up Gear ratio:1=14.08, 2=10.47, 3=7.82, 4=5.82, 5=4.35, 6=3.24, 7=2.41, 8=1.80, 9=1.34, 10=1, R1=12.67, R2=2.91 | ||
| Front axle | 1xHF9, 9 ton axle load, rigid stub axle with double T- cross section and dish /drum brake. | |
| Rear axle | 2 x HC16 / AC16, HC16 heavy casting hub reduction drive axle with super loading ability, excellent performance on start-up with heavy load and slope climbing. AC16 heavy casting hub reduction drive axle, with super loading ability, excellent performance on start-up with heavy load and slope climbing. | |
| Steering | ZF8098 power steering, hydraulic steering with power assistance. | |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. | |
| Brake | Service brake: Dual circuit compressed air brake. | |
| Parking brake: Spring energy, storage air-break brake. | ||
| Engine brake: Engine exhausted gas brake. | ||
| Electric Equipment | Operating voltage: | 24V negative grounded |
| Battery voltage: | 12V/165Ah,cigar lighter | |
| Tire & Rim | 11.00-20; 12.00-20; 11.00R20; 12.00R20; 295/80R22.5; 315/80R22.5 | |
| Overall dimension | 7,934 / 7,634 / 7,545 X 2,496 X 3,170 (L X W X H)(mm) | |
| Dump Box Dimension | 5,600 X 2,300 X 1,200 / 1,400 / 1,500 (mm) | |
| Total Mass | 25,000(Kg) | |
| Curb Weight | 12,230 / 12,170(kg) | |
| Maximum Speed | 75(km/h) | |
| Color | White, red, yellow, green, blue. | |
