14-16m Aerial Platform Working Truck , Overhead Working Truck 4X2

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Within 35 days

Brand: CIVL

Product Description

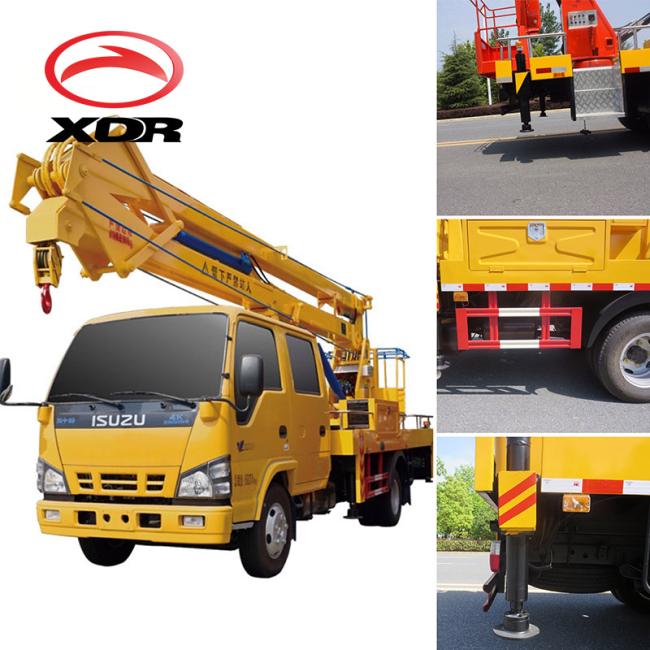

Japan brand 14-16m aerial platform working truck, 14-16m overhead working truck

Specification of QL High Altitude Operation Truck 14-16m
Item	Specification	Item	Specification
General
Truck Name	QL High Altitude Operation Truck	Overall Dimension (mm)	6880x1980x3100
Truck Model	QL1070A5HWY	Wheel Base (mm)	3360
Traction System	4 x 2	Gross Weight (kg)	6080
Cab Capacity	1+1+3	Curb Weight (kg)	5755
Transmission	manual	Front Wheel Tread (mm)	1504
Chassis Brand	QL	Rear Wheel Tread (mm)	1425
Tyre Model	7.00-16 14PR; 7.00R16 14PR	Approach Angle (°)	24
Quantity of Tyre	6	Departure Angle (°)	16
Quantity of Axles	2	Front Overhang (mm)	1015
Max Speed (km/h)	110	Rear Overhang (mm)	2155
Chassis
Chassis Model	QL1070A5HWY	Leaf Spring	8/6+5
Engine (Motor)
Brand	QL	Type of Fuel	Diesel
Model	4KH1CN5HS	Displacement (ml)	2999
Power (kw)	96	Emission Standard	Euro 4
Equipments
Max Operation Height (m)	14-16	Arm Rotation Angle	360°
Max Operation Radius (m)	7.2 (360°)	Arm Rotating Speed (r/min)	0-2
Operation Stage Dimension (mm)	1100x570x1000	Support Legs	4 H-shap legs(2 front & 2 rear)
Operation Stage Rating Loading Weight (kg)	200	Operation Control System	Electrically hydraulic control
Hook Loading Weight (kg)	≥1000	Type of Working Arm	3 section arms
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
