10 Wheels 6x4 20m3 Fuel Liquid Tanker Truck , Oil Tanker Lorry Color Customization Oil Tanker Vehicle

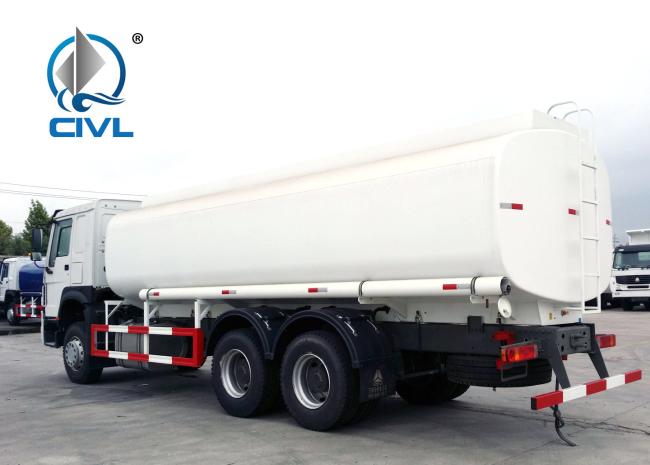

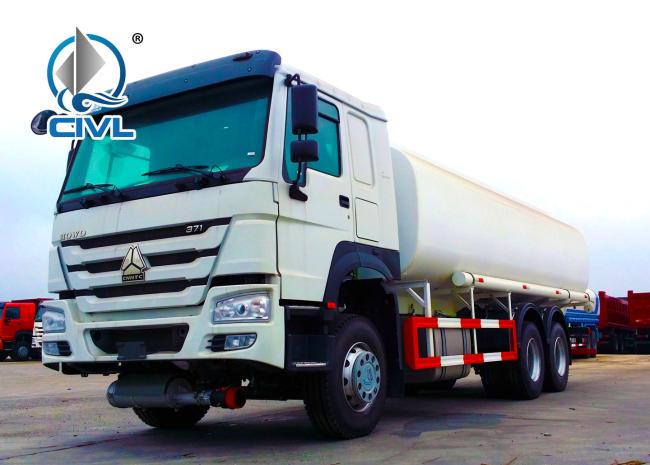

SINOTRUK HOWO 6x4 20000liters Oil Tank Transport Fuel Tanker Truck

Description:

The fuel tank truck is also called Mobile Fuel Truck, oil loading truck, oil trucks, etc. It is mainly used for storage of oil and oil transporting.

This fuel tank truck has been equipped with computer fuel dispenser. It could be used as the mobile filling station. Then the truck is very with great flexibility.

According to different needs, it is always used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places where there is no filling station.

The fuel tank truck has brought great convenience for people who have to get the station for the truck. And it actually can be called as the mobile filling station.

Specifications:

Engine

Make and model WD615.47

Type……….Diesel 4-stroke direct injection engine,6-cylinder in-line with water cooling, turbo-charging & intercooling

Displacement ……………………9.726 liters

Maximum output…………………………… 371HP@2200rpm(213KW@2200rpm)

Max . torque……1160NM@1300-1600rpm

Min.fuel consumption………….....198g/kwh

Cluth

model……………………………...￠430

Type……single-plate dry clutch,mechanically operating with air assisted.

Plate diameter……………………..￠430mm

Gear box

Model……………………...............HW19710

No.of speeds…………..10 forward,2 reverse

Forward ratio…14.36,10.66,7.88,5.82,4.38,3.28,2.44,1.8,1.33,1

Reverse ratio…………………14.01,3.2

Front axle

Type……..Rigid stub axle with double T-cross members

Max.load……………………………...7000kg

Tandem axle

Type………………Pressed axle housing, single reduction with planetary wheel redactor

Ratio…………………………………...5.73

Max.load……………………….2X16000kg

Front suspension……..9 semi-elliptic leaf springs with shock absorbers

Frame

Type……….parallel ladder with U-profiles and riveted cross members

Steering

Model……………………………...…ZF8098

Rotio…………………………………...20.2

Pump max.pressure………………13000Kpa

Fuel tank capacity……………………...300L

Wheels and tires

Rim………………………………….8.00-20

Tire………………………………..12.00R20

No.of tires………………………………..10

Spare wheel carrier….with one spare wheel

Brakes

Service brake..Dual circuit pneumatic brake

Parking brake…..Spring energy,compressed air operating on rear wheels

Auxiliary brake………engine exhaust brake

Cabin

All-steel forward control, 70°hydraulically tiltable to the front, 3-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial , hydraulically damped adjustable driver’s seat & rigid

adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap,with stereo radio/cassette recorder.

Optional equipment…….safety belt,air conditioner

Capability………………………...3 persons

Electric equipment

Operating voltage….24V,negative grounded

Starter…………………………….24V,5.4kw

Alternator…………………………28V,756w

Batteries……………………..2X12v,165Ah

Cigar-lighter, horn headlamp, fog light,reverse light.

Instrument panel

Active check control with indicators,with this instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant

Front wheel alignment

Camber…………………………………1°

Caster…………………………………..3°

King pin inclination……………………1°

Toe-in (measured at the wheel diameter ￠648mm with cross-ply tyre)……….3-4.5mm

Overall dimension (length X width X height) ………………9950x2496x3350mm

Wheelbase……………………4600+1350mm

Track

Front…………………………...……2022mm

Rear……………………………...….1830mm

Approach angle…………………………16°

Departure angle……………………...…12°

Front overhang……………………1500mm

Rear overhang……………………..2900mm

Mass parameter

Dead weight…………………….…..11360kg

Pay loading………………………....13510kg

Gross combination weight………....25000kg

Fuel Body options

Body…………………………..…20000L

Body capacity depends upon the density of the material.

Performance

Driving type……………………………..6X4

Maximum driving speed(km/h)…….75km/h

Turning circle diameter……………….16.5m

Fuel consumption………………40L/100km

Max.body tipping angle……………….52°

Product brief introduction:

• Made of national standard WISCO carbon steel plate, 4.2mm thickness, seal 5mm thickness.

Effective tank volume from 1000L to Maximum 30000L.

• Optional equipped with sea valve, oil pump, refueling system and measurement system.

• Mainly for transportation of petrol, diesel and edible oil, etc, and also for fuel retailer.

Product advantages:

• High quality. High strength carbon steel, advanced welding technology, optional Aluminium alloy.

•High safety. Front exhaust pipe, sea valve,interior anti-wave plate,

Aluminium anti-skid net.
