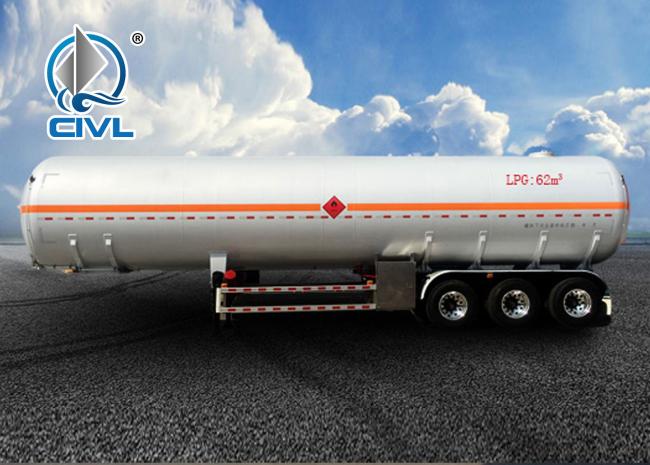

62m3 LPG Trailer Semi Trailer Trucks Stainless Steel For Lpg Transport Liquefied Gas
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Within 30 days
Brand:
CIVL
Product Description
62m3 LPG trailer Semi Trailer Trucks Stainless Steel For Lpg Transport
All specification and design can be customized !
We can provide main LPG/LNG products as below:
1)LPG/LNG storage tank volume from 5m3 to 200m3
2)LPG/LNG semi trailer from 24m3 to 60m3
3) LPG/LNG transporation truck from 5.5m3 to 35.5m
4)LPG /LNG Skid Station:20m3 to 60m3
Technical Parameter
| Model | CIVL9405GYQ | |||||||
| Medium | LPG | |||||||
| Brand | CIVL | |||||||
| Main parameter | Parameter | Main parameter | Parameter | |||||
| G.V.W(kg) | 40000 | Wheel base(mm) | 7390+1310+1310 | |||||
| Kerb weight(kg) | 13960 | Track(F/R)(mm) | -/1820/1820/1820 | |||||
| Pay loading(kg) | 26040 | Suspension(F/R)(mm) | -/1990 | |||||
| Whole dimension (mm) | 13750x2500x3995 | Approach/Departure angle(°) | -/15 ° | |||||
| Tank length(mm) | 13280 | Axle no.s | 3 | |||||
| Tank capacity(m³) | 62 | Tyre no.s | 12 | |||||
| Valid capacity(m³) | / | Tyre model | 12R22.5 12PR | |||||
| Tank inner diameter(mm) | φ2480 | Speed(kmh) | 60(straight) 20(turning) | |||||
| Working pressure(Mpa) | ≤1.60 | Tank material | XG630DR | |||||
| Design pressure(Mpa) |
1.61
|
Tank thickness(mm) | 9.2 | |||||
| Water test pressure(Mpa) | 2.1 | Headseal material | XG630DR | |||||
| Air tightness test pressure(Mpa) |
1.61
|
Headseal thickness(mm) | 10.5 | |||||
| Safety valve open pressure(Mpa) | 1.69~1.72 | Corrosion allowance(mm) | 1 | |||||
| Working temperature(℃) | -40~50 |
Heat treatment
|
Overall stress relief heat treatment in furnace | |||||
| Design temperature(℃) |
-40/50
50
|
|||||||
|
Safety device
|
||||||||
|
Tight emergency cut break valve
|
Model | Liquid | QGJ43F-25-19S |
Safety valve
|
Model | A412F-25-15B | ||
| Air | QGJ43F-25-14 | |||||||
| Nominal pressure | PN 2.5 MPa | Type |
Built in full swing spring Safety valve |
|||||
| Nominal dia | Liquid | DN80 | Nominal pressure | / | ||||
| Air | DN25 | Nominal diameter | DN80 mm | |||||
| Operate type | Manual / air pressure | Open pressure | 1.69-1.72 MPa | |||||
| Closing time | ≤5s | Reseating pressure | ≥1.53MPa | |||||
| Fusion temperature | 75±5 ℃ | Relieving pressure | ≤1.93MPa | |||||
| Liquid position meter | Model | ZGM2480/25-2 | Pressure gauge | Model | YN-100 Ⅱ | |||
| Type | Rotary | Measure range | 0-4.0 MPa | |||||
| Accuracy | 1.6 级 | |||||||
| Nominal pressure | PN 2.5 MPa | Loading device | Joint type | Fast joint | ||||
| Measuring range | 0～2480 mm | Model | Liquid | YKA-25P DN50 | ||||
| Accuracy | Class 2.5 | Air | YKA-25P DN25 | |||||
KINDLY NOTE:
1. Above parameters is just for your reference, The specific configuration of LPG tank trailer can be adjustable as per your request.
2. We can customize different kinds of LPG tank trailer as per your requirement. Pls contact us freely if any interests.
Description:
As a mature and famed manufacturer of semi-trailer in China. We are specialized in
this field for many years.
Huge domestic and overseas trailer market enable us to develop advanced semi-trailer technology, manufacture technique as well as efficient management. During China Semi-trailer and Dump trailer years of practice in this field, a number of high-qualified semi-trailer technical talents, staffs and workers have grown up helping us gain a good reputation in semi-trailer manufacturing and exporting from customers both at home and abroad. Our trailer has entered East Europe, Middle East, and Africa markets.
Made in China, assembly in local, our products include: Car Carrier Trailer,Flatbed Trailer,Low Bed Trailer,Dump Trailer,Canvas Trailer,Bulk Cement Trailer,Cement Mixer Trailer,Tank Trailer,Vacuum Tank Trailer, and more. Over these ten years, our semi-trailer projects have proven successful in regions like UAE and Saudi Arabia. All the main part of the trailer will be prefabricated in our manufacturing base in China. After shipment, our qualified and experienced assembly team will go to oversea customers' workshop for assembly. Local workers will also be trained during the flatbed trailer assembly.
ag: utility semi-trailer, van semi trailer, cargo semi trailer, side wall semi trailer,LPG tank trailer,LPG transport tanker, Liquefied gas truck
drop side semi trailer, cargo trailer, box trailer,container semi-trailer, flat container semi-trailer, flat bed trailer, flat bed semi trailer, semi trailer,
straight frame trailer,platform semi trailer,skeleton semi-trailer
As a mature and famed manufacturer of semi-trailer in China. We are specialized in
this field for many years.
Huge domestic and overseas trailer market enable us to develop advanced semi-trailer technology, manufacture technique as well as efficient management. During China Semi-trailer and Dump trailer years of practice in this field, a number of high-qualified semi-trailer technical talents, staffs and workers have grown up helping us gain a good reputation in semi-trailer manufacturing and exporting from customers both at home and abroad. Our trailer has entered East Europe, Middle East, and Africa markets.
Made in China, assembly in local, our products include: Car Carrier Trailer,Flatbed Trailer,Low Bed Trailer,Dump Trailer,Canvas Trailer,Bulk Cement Trailer,Cement Mixer Trailer,Tank Trailer,Vacuum Tank Trailer, and more. Over these ten years, our semi-trailer projects have proven successful in regions like UAE and Saudi Arabia. All the main part of the trailer will be prefabricated in our manufacturing base in China. After shipment, our qualified and experienced assembly team will go to oversea customers' workshop for assembly. Local workers will also be trained during the flatbed trailer assembly.
ag: utility semi-trailer, van semi trailer, cargo semi trailer, side wall semi trailer,LPG tank trailer,LPG transport tanker, Liquefied gas truck
drop side semi trailer, cargo trailer, box trailer,container semi-trailer, flat container semi-trailer, flat bed trailer, flat bed semi trailer, semi trailer,
straight frame trailer,platform semi trailer,skeleton semi-trailer
