150hp Aerial Work Truck 17m Telescopic Foldable Aero Vehicle Boom Lifter Wheeled Elevator
Aerial Work Truck 17m Straight Arm Telescopic Aerial Work Vehicle 150hp Engine Special Vehicle For Aerial Work 4x2
Description:
The upper loading form is a straight arm telescopic type, the working bucket can be rotated 360°,
and the lifting distance of the working bucket is 540mm;
Optional with small arm structure, this model has a single all-round multi-function operating handle, with start, stop
Automatic deceleration device; the working arm and outrigger have interlocking function, which has a larger span and improves the working stability of the whole machine.
Qualitative. The imported hydraulic proportional valve is used on the car, which has good fretting performance and can perform compound actions, thus greatly improving the
Increased operating comfort. The car is equipped with a high-power radiator, which can ensure that the oil temperature does not change when the crane works under heavy load for a long time.
high.
Specification:
| Vehicle parameters | ||
| Vehicle curb weight | kg | 7155 |
| Maximum total mass kg | 7350 | |
| Dimensions (L×W×H) | mm | 6130x2050x3620 |
| Minimum ground clearance | mm | 237 |
| Approach / departure angle | ° | 20/15 |
| Chassis parameters | ||
| Chassis model, category, manufacturer | ||
| Number of passengers | 个 | 3 |
| Engine rated power | Ps | 150hp |
| engine maximum net power | Kw | 107 |
| engine model | D25TCIF1 | |
| wheelbase | mm | 3300 |
| job performance | ||
| maximum working height | m | 17.2/16.9 |
| Maximum working range | m | 11.6/14.6 |
| Maximum rated load Kg | 200 | |
| Rotation angle | 360° full rotation | |
| Working bucket size | mm | 1100x740x900 |
| Longitudinal outrigger span | mm | 3610 |
| Lateral outrigger span | mm | 3500 |
| Insulation class | Kv | 46 |
| Driving performance | ||
| top speed | km/h | 89 |
| maximum climbing angle | % | 30 |
| Braking distance (full load 30km/h) | m | ≤10 |
| Minimum turning diameter | m | 13.9 |

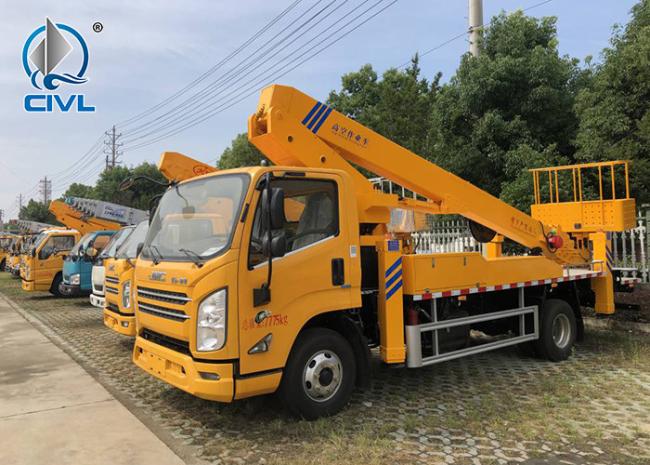

Photos:

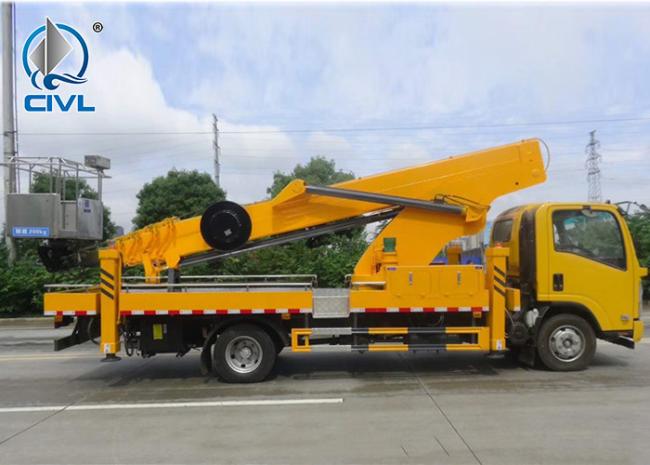

vehicle mounted type:

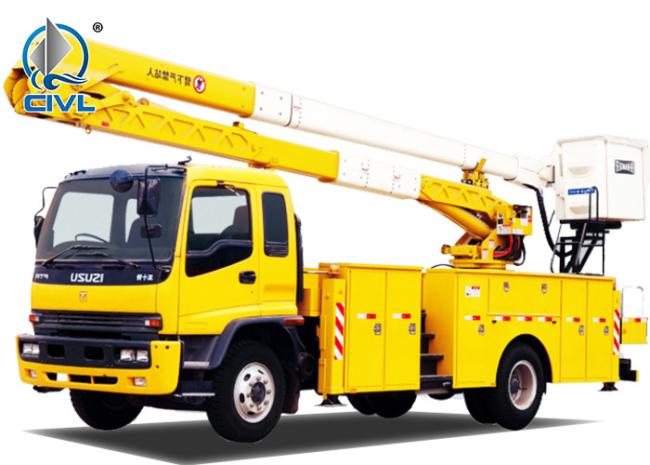

Heavy tpye with boom above 25m

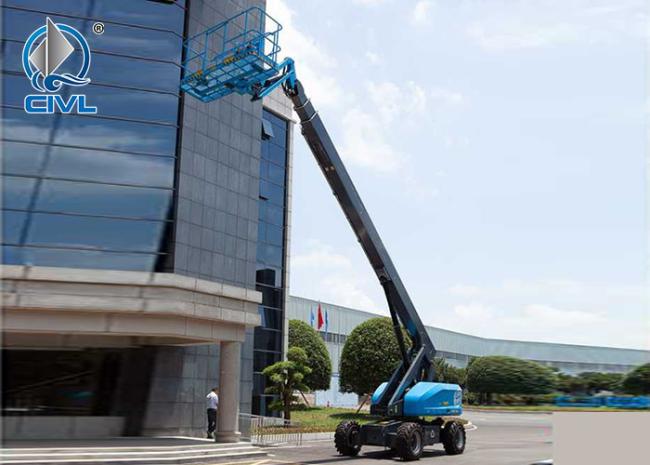

Working scene
Scope of application
The product is suitable for working environment: it is suitable for electric power repair and other operations in the site with wide ground and enough operating space.
Ambient temperature is required, and the road slope is less than 30%.
