38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine 40% Grade ability/ Cherry Picker /Long Arm Bucket Truck cherry pick
Description:
heavier load
- The platform height is 16m-32m, the rated load is 454kg, and the work efficiency is higher.
full-time floating
- Both non-working state and working state have floating function: can work on inclined, uneven ground. There is no need for electrical detection and control, and the reliability is higher.
Intelligent maintenance and inquiry
- Intelligent 7-inch display large screen, displaying fault and status information, which is convenient for operators to inquire. It is convenient for managers to query machine information and maintenance information
Precisely approaching the job target
- The upper stage control box is equipped with 3 full-scale handles for gradual control, boom luffing, boom telescopic, turntable rotation and walking speed, the movement starts and stops smoothly, and accurately approaches the job target
Specification:
| size | |
| maximum platform height | 38.4m |
| maximum working height | 40.4m |
| Maximum horizontal extension (restricted/unrestricted) | 19.5m/21.0 m |
| A Length - stowed | 13.8m |
| B width - stowed | 2.49m |
| C height - stowed | 3.1m |
| D wheelbase | 3.6m |
| Ground clearance | 0.43m |
| Platform Dimensions (L × W × H) | 2.44×0.91×1.1 m |
| performance | |
| Platform Rated Carrying Capacity (Limited / Unrestricted) | 454kg/300kg |
| Turntable rotation | 360° continuous |
| Platform rotation | 160° |
| Maximum travel speed - stowed | 0~4.4 km/h |
| Maximum travel speed - lifted | 0~1.1 km/h |
| Gradeability | 40% |
| Inside turning radius | 2.56m |
| outer turning radius | 5.57m |
| Turntable tail sweep | 1.86m |
| Allowable inclination when working | 5° |
| maximum allowable wind speed | 12.5m/s |
| Maximum allowable lateral force (limited/unlimited) | 600N/400N |
| Drive × Steer | 4WD×4WS |
| Tire Size / Type | 385/65-22.5(foam tires) |
| power | |
| Engine (Power/RPM/Spec/Brand/Emission) | Cummins QSF2.8t3TC72, 54KW, |
| Emission Standards | |
| Hydraulic tank volume | 250 L |
| Diesel fuel tank volume | 200 L |
| hydraulic system pressure | 28MPa |
| Battery Specifications ( Quantity × Voltage , Capacity ) | 2×12 V 110 Ah |
| control voltage | 12 VDC |
| weight | |
| weight | 20,700 kg |

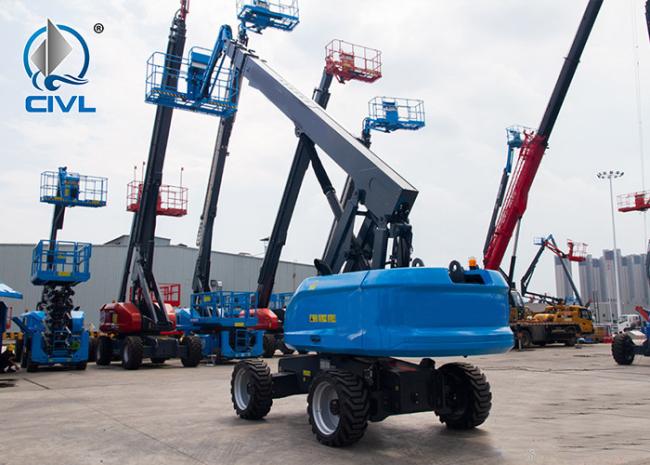

Photos:

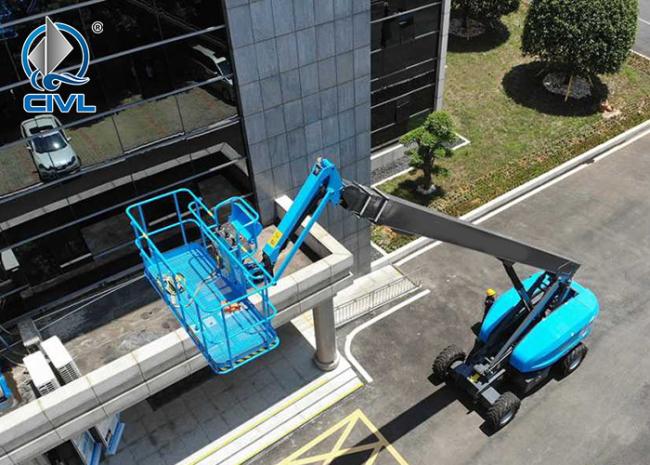

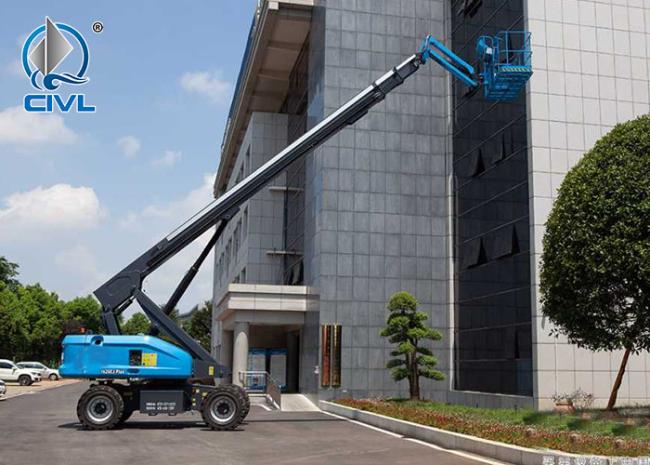

Working scene
Application
Adopting the design concept of sturdiness and durability, excellent and reliable performance,
it provides users with a safe aerial work platform to meet the needs of challenging working conditions.
Widely used in large steel structure, construction engineering, shipbuilding industry, curtain wall engineering,
petrochemical and other industries.
