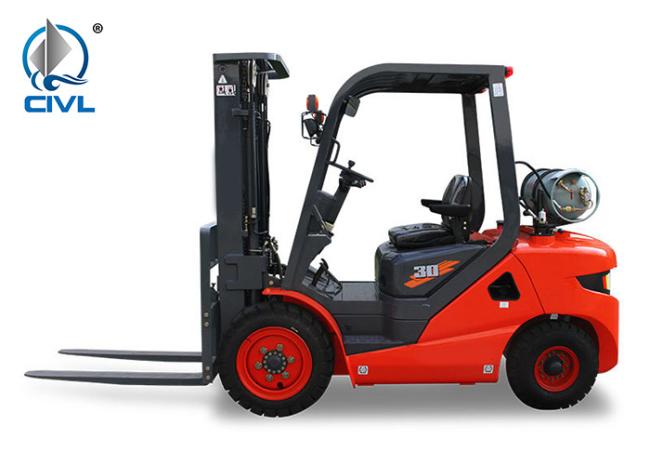

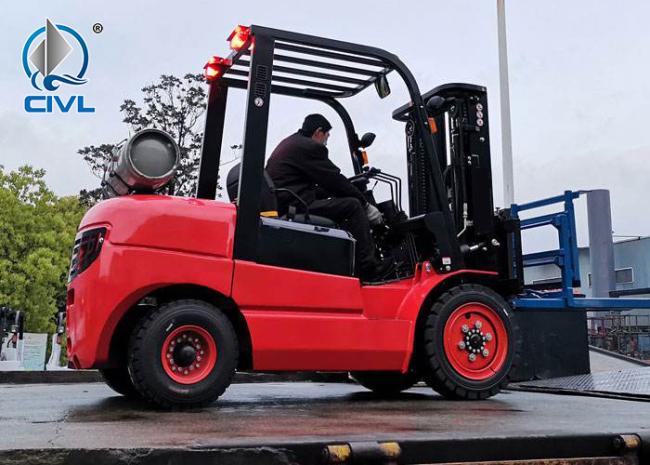

Lpg Forklift With Side Shift Can Go Inside Container 3/3.5 Tons Forklifts Fuel Gas Engine Color Option
Lpg Forklift With Side Shift Can Go Inside Container 3.5 Tons Forklifts Fuel Gas Engine
Description:
Counterweight Liquefied Petroleum Gas Forklift (LPG for short)
That is, the counterweight gasoline forklift is equipped with a liquefied petroleum gas conversion device, which becomes an LPG forklift, and the use of gasoline and liquefied gas can be switched through the changeover switch.
The biggest advantage of LPG forklifts is that the exhaust emissions are good, carbon monoxide (CO) emissions are significantly less than gasoline engines, and fuel costs are low (15KG liquefied gas is equivalent to 20 liters of gasoline),
It is suitable for indoor operations with high environmental requirements.
Specification:
| model | LG30 | ||
| Rated lifting capacity | kg | 3000 | |
| load center | mm | 500 | |
| Standard lifting height | mm | 3000 | |
| Standard free lift height | mm | 165 | |
| Lifting speed | no load | mm/s | 530 |
| fully loaded | 500 | ||
| The rate of decline | mm/s | ＜600 | |
| Gantry angle | degree | 6月12日 | |
| Driving speed | no load | km/h | 20 |
| fully loaded | km/h | 22 | |
| Turning radius | mm | 2450 | |
| length | mm | 2100 | |
| width | mm | 1225 | |
| Gantry height, drop | mm | 2077 | |
| Gantry height and maximum height | mm | 4217 | |
| Top shield height | mm | 2079 | |
| vehicle weight | kg | 4320 |
1. Comfort
Full-floating shock absorber for engine; adjustable steering wheel; wide legroom; high-strength overall hood with built-in sound-absorbing and heat-insulating material.
2. Reasonable and stable low center of gravity
Low center of gravity, the car body is precision welded with high-light steel plates, which is stable and reliable during handling and walking.
3. Security
The lifting system adopts a wide-view gantry,
4. Cooling system
The large-capacity copper water tank is used to ensure that the vehicle has good heat dissipation performance.
5. Electrical system
The use of technical wiring harness and waterproof plug-in, multi-way fuse arrangement, greatly improves the safety and stability of the circuit system.

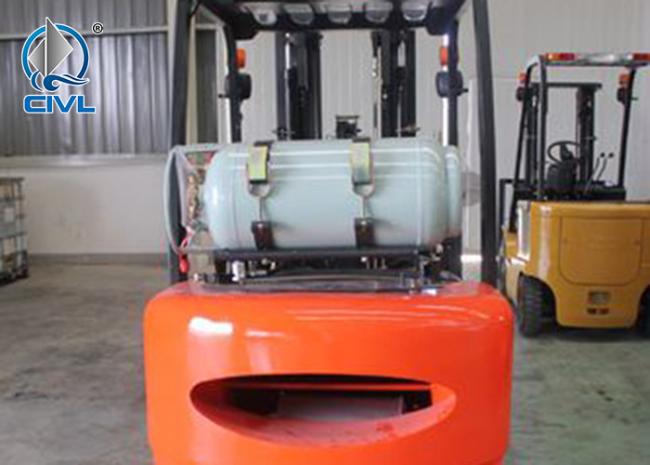

6. LPG system
Adopt imported liquefied gas kit, reliable quality and stable performance....
