ISO Certificate STC 370,STC 440 JIS G3473 Carbon Steel Tube for Hydraulic Cylinder

Quick Detail

Standards: JIS G3473

Grade: STC 370,STC 440,STC 510A,STC 510B,STC 540,STC 590,STC 590A,STC 590B

Outer Dimensions: 6mm ~ 350mm

Wall Thickness: 0.8mm ~ 35mm

Length: max 24000mm

Description:

Standards: JIS G3473

Grade: STC 370,STC 440,STC 510A,STC 510B,STC 540,STC 590,STC 590A,STC 590B

Size (mm):

Outer Dimensions: 6mm ~ 350mm

Wall Thickness: 0.8mm ~ 35mm

Length: max 24000mm

Application: JIS G3473 carbon steel tubes for cylinder barrels, machinery, automobiles, bicycles, furniture, appliances and other machine parts.

Packing: Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatment:Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark: As requested.

Delivery Condition:Annealed, Normalized, Normalized and Tempered

1. Scope

This Japanese Industrial Standard specifies the carbon steel tubes, hereinafter referred to as the "tubes",

used for manufacturing cylinder barrels of pistion type hydraulic cylinders and pneumatic cylinders whose internal surfaces anr furnished by cutting or honing

2. Grade and Designation

The tubes shall be classified into 7 grades, and their designations shall be as given in Table 1.

Table 1 Designation of Grade

3.Chemical Composition

The tube shall be tested in accordance with the resulting ladle analysis values shall conform to Table 2.

4.Appearance

4.1Both ends of the tube shall be at right angles to the axis of the tube.

4.2The inside and outside surfaces of the tube shall be well-finished and free from defects detrimental to

practical use.

Applications

JIS G3473 carbon steel tubes mainly used for cylinder barrels

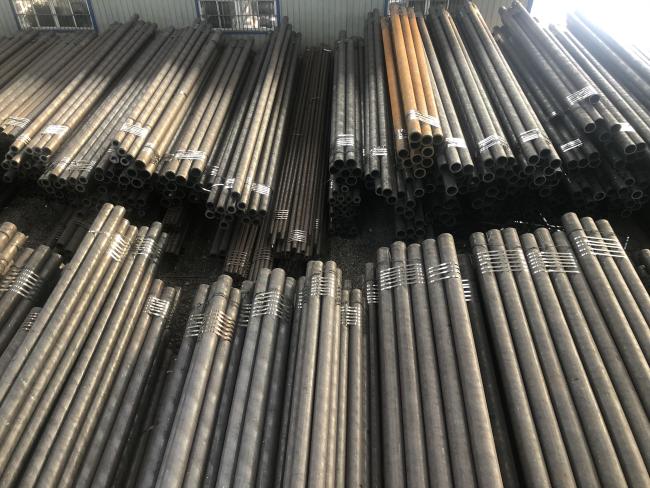

Product Photo

Factroy Pictures

Pipe & Tube Processing

Steel Pipe & Tube Application

Packaging and Shipping

Certificates

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4:CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
