ASTM A179 / A213 / A519 Carbon Steel Hot Dipping Galvanized Tube For Construction
ASTM A179 / A213 / A519 Carbon Steel Hot Dipping Galvanized Tube For Construction
Product Description
Carbon steel seamless steel pipe is a kind of long steel.
The steel pipe has a hollow section and is widely used as a pipeline for transporting fluids, such as pipelines for transporting oil, natural gas, gas, water and certain solid materials.
|
Product Name:
|
ASTM A179 / A213 / A519 Carbon Steel Hot Dipping Galvanized Tube For Construction |
|
Outer Diameter:
|
10mm-1219mm
|
|
Wall Thickness:
|
1.0mm-60mm
|
|
Length:
|
1m~12m or as customer require
|
|
Production Standard:
|
ASTM A213, ASTM A335, JIS G3462, ASTM A179 / A213 / A519,etc.
|
|
Material Grade:
|
P1, P2, P12, P11, P22, P5, P9, P91, P92,T1, T2, T11,T12, T5, T9,T22,ST52,
X42, X46, X52, X60,X70,X80,X100, 15CrMo,Cr5Mo,10CrMo910,12Cr2Mo, 13CrMo44,12CrMo195,42CrMo,42CrMO4,x12CrMo91,12CrMo,etc. |
|
Surface Treatment:
|
Painted, Oiled, galvanized, phosphate etc to prevent rust
|
|
Usage:
|
Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc; The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, |
|
Certificates:
|
ISO9001-2000, API 5L API 5CT certificate
|
|
Payment Terms:
|
L/C,T/T, Western Union
|
|
Note:
|
We can produce other standard as the customers' requirement
|
Factory test and other terms
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Grade and Chemical Composition (%)
| STANDARD | GRADE | CHEMICAL COMPOSITION | |||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
| ASTM A179 | A179 | ≤0.06-0.18 | / | 0.27-0.63 | ≤0.035 | ≤0.035 | |||||
| ASME SA106 | SA106B | 0.170.25 | ≥0.1 | 0.701.00 | ≤0.030 | ≤0.030 | ≤0.035 | ||||
| ASTM A106 | A | ≤0.25 | ≤0.10 | 0.270.93 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 |
| B | ≤0.30 | ≤0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 | |
| C | ≤0.35 | ≤0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 | |
| ASTM A53 | A | 0.25 | / | 0.95 | 0.05 | 0.045 | 0.40 | 0.15 | 0.40 | 0.40 | 0.08 |
| B | 0.3 | / | 1.2 | 0.05 | 0.045 | 0.40 | 0.15 | 0.40 | 0.40 | 0.08 | |
Mechanical Properties
| Mechanical properties | |||
| Material |
Min Tensile strenght N/mm2 |
Min. Yield strengh N/mm2 |
Min Elongation % |
| A179 | 325 | 180 | 35 |
Detailed Photo

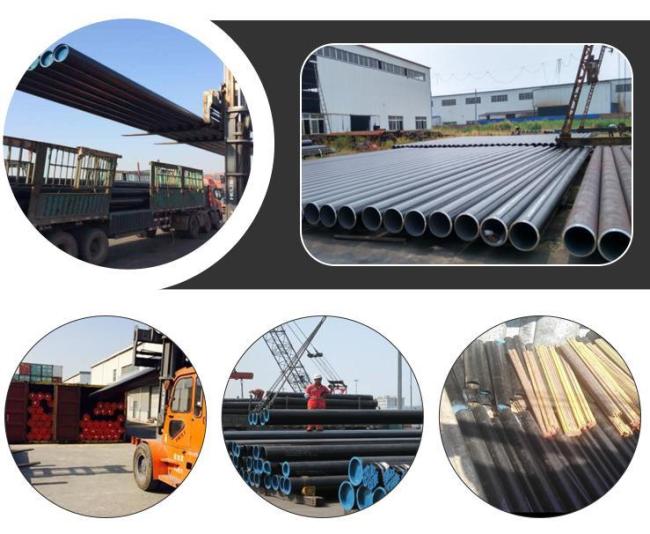

Factory Photo
Processing
Applications:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Packaging & Shipping:
Certificates:
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
