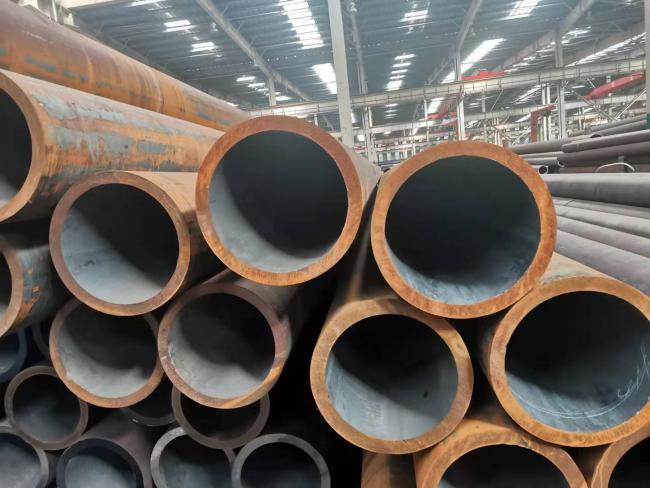

Thick Wall A53 Hot Rolled Seamless Steel Tubes Thickness 3.91mm
E355 EN10297 A53 Q235 STPG42 Hot Rolled Steel Tube Thickness 3.91mm - 59.54mm
Our Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.
With good quality and competitive price, we believe we could be your reliable supplier.
Quick Detail
Standard: ASTM / DIN / EN / GOST / SAE / JIS etc
Process method: Hot rolled/ Hot expansion/ Cold drawn
Size: (mm)
O.D : 60.3mm-914.4mm
W.T : 3.91mm-59.54mm
Length: 5-12m as per customer's requirements
Material: A53, A106 Grade B, A106 Grade C, Q235, Q345, ASTM A519 37Mn, 34CrMo4.
(10, 20, 30, 35, 45,16Mn, 5MnV, 40Cr, 30CrMnSi, 45Mn2, 40MnB, etc)
Description
(1) Product Name : Hot Rolled / Hot expansion Seamless Carbon Steel Pipe
(2) Brand : WuXI SYLAITH
(3) Specification: O.D : 60.3mm-914.4mm W.T : 3.91mm-59.54mm
(4) Standard :
ASTM A106-B ASTM A53-B API 5L-B
API 5L, X42, X52, and 5CT ,J55 ,K55
SAE1020 ,SAE1045
JIS G4051, S20C ,S45C, JIS G3454, JIS 3454 ,STPG42
DIN 17175 ST 45-8, ST 52
(5) Tolerance: OD :+1% / -1% WT: +12.5% / -10%
(6) Technics : hot rolled .or cold rolled
(7) Package: bundles,seaworthy wooden cases,container
(8) Ends:bevel or plain
(9) Coating: Internally bare, externally varnished
Specifications
Production process of hot rolled tubes :
Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.
Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.
Advantages
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed.
This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.
Regular Hot Rolled Pipe Sizes
(Or per customers’ requirements)
|
OD × WT (mm) |
OD × WT (mm) |
OD × WT (mm) |
OD × WT (mm) |
OD × WT (mm) |
|
12×1.5 |
133 ×4～12 |
406.4×6～25 |
73×4-4.5-5-6-7-8-9-10-12-15 |
219×30-40 |
|
14×1.5-2.5-3 |
141.3×4～12 |
426 ×6～25 |
76×4-4.5-5-6-7-8-9-10-12-14 |
245×8-10-14-17-20-22 |
|
16×1.5-2.5-4 |
159 ×4～12 |
457 ×6～38 |
83×4.5-5-10/ 12 14 16 18 20 |
245×25-28-30-34-40 |
|
18×2.3-4-5 |
165 ×4～20 |
508 ×6～38 |
89×4.5-8-10/12-14 16 -18 20 |
273×7-9-12-15-18-20-25 |
|
20×2.5-3-5 |
168.3×4～20 |
530 ×6～40 |
95×4.5-6-8/10-12-14-16-20 |
273×30-35-38-40 |
|
24×2.5-3-4-5-6 |
177.8×4～22 |
559 ×6～40 |
102×4.5-5-6-7-8-10-12-14-16-20 |
299×8-12-16-20-24-28 |
|
25×2.5-3-4-5-6 |
323.8×6～25 |
610 ×6～40 |
108×4.5-5-6-7-8-10/12-14-18-20-22 |
299×30-32-36-38-40 |
|
28×3-3.5-4-5-6 |
340 ×6～25 |
630 ×6～40 |
114×4.5-5-6-7-8-10-12-14-18-20 |
325×8-12-14-18-38 |
|
32×3.5-4-5-6-8 |
355.6×6～25 |
>630×6～44 |
121×4.5-5-6-7-8-10-12-14-16-20 |
325×28-32-34-38 |
|
34×4-5-6-8 |
377 ×6～25 |
<914×6～60 |
127×4.5-5-6-7-8-10-12-14-16-20 |
351×10-16-20-25-40 |
Applications
Transportation of oil,gas or fluid,Construction,Electricity,Machine building industy,Chemical industy,Petroleum,Traffic, etc
Product Application
Packing&Shipping
Certificaion
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
