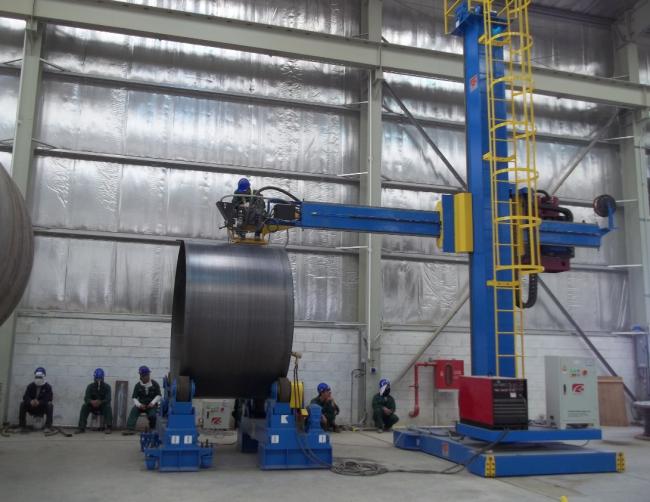

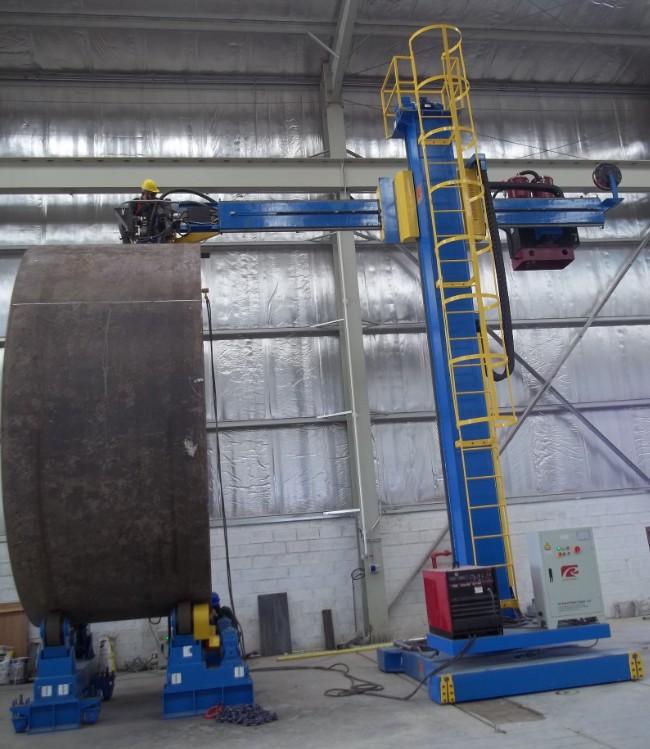

Tank Straight Seam Welding Column Boom Manned Chair SAW Welding Manipulator

Brief introduction:

• Purpose: Used to handle welding machine automatically complete certain welding job with constant & stable welding speed;

• Configured components: Welding machine, flux recovery system(for SAW), welding rotator;

Seam welding column boom feature:

• Automatic welding column boom can be adopted with various welding power (Chinese or international famous brand) .

• Stretching of cross boom adapts AC frequency converter stepless speed control and run with steady speed .

• Head equipped with electric cross slides, can adjust position of welding .

• Chain break-resistant and anti-slip device in boom to guarantee safety.

• Braking device can ensure column work in safe environment.

• Customized manipulator requirements are accepted.

• Automatic flux feeding, recovering devices, wire feeder device, working platform and  chair ( Optional ).

Description of seam welding column boom:


• Welding column boom structure including stationary type, the stationary and rotating type, and the all orientation type.

• The movement of the boom is adopted with frequency conversion control, and also you can select PLC programming controller, which is good in mechanic precise, is accurate in positioning.

• We are able to design and manufacture special manipulators for our customers.

•  The welding column boom can be used together with welding rotator or welding positioner.

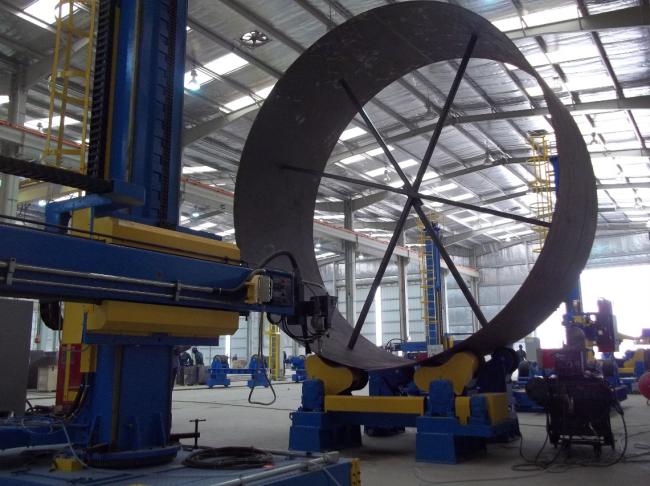

• It is widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.

•  It has the advantage of in advanced structure,complete function, easy operation, which ensures improving of welding quality.

• According to the requirement, it can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device.

Technical parameter list:

Option:

• Welding seam tracker;
• Welding oscillator;
• Flux recovery & convery machine;
• Lincoln welding power;
• China welding power;

Video link

https://www.youtube.com/c/RonniewellAutomatedWeldingSolutionProvider

Welcome to follow us on following social media:

Facebook: https://www.facebook.com/weldingrotatorcn

LinkedIn: https://www.linkedin.com/in/automatedwelding

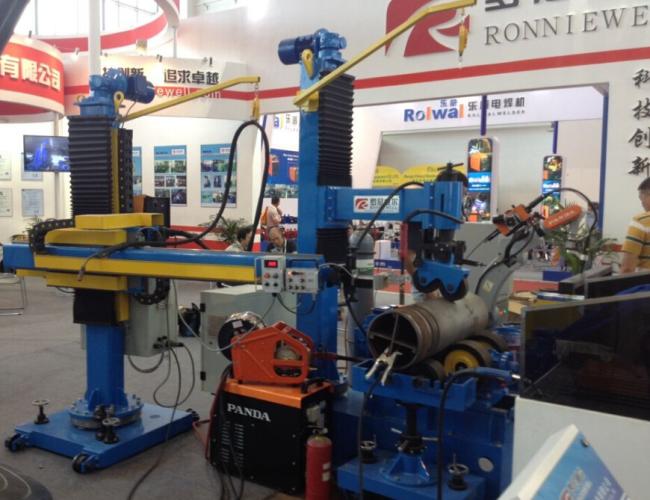

Exhibition:
