Dual Head Dual Wire Weld Manipulator For T Type Stiffening Ring SAW Welding

Price Negotiable

Price: pls confirm with us

MOQ: 1set

Delivery Time: 30working days

Brand: Ronniewell

Product Description

Dual Head Dual Wire Weld Manipulator For T Type Stiffening Ring SAW Welding

Brief introduction:

Special designed dual welding head welding manipulator used for stiffening ring automated SAW welding.

Welding manipulator feature:

Equipped with two welding head simultaneously welding both sides of the stiffening ring.
Dual wire SAW welding with LINCOLN welding power source(optional), more welding efficiency.
Gear rack pinion transmission of the boom with VFD speed control, working motion stable & smooth.
Anti-fall device and limit switches for all motions.
Column with smooth 360 degree lockable rotation.
Designed and robustly build to withstand severe work environments.

Technical parameters :

Model	LH4040	LH5050	LH6060	LH8080
Structure:	Travel & Rotation
Boom horizontal stroke(mm)	4000	5000	6000	8000
Boom vertical stroke (mm)	4000	5000	6000	8000
Boom horizontal speed (mm/min)	150-1500	150-1500	150-1500	150-1500
Boom vertical speed (mm/min)	1000	1000	1000	1000
Boom horizontal motor power (kW)	0.55	0.55	0.55	0.75
Boom vertical motor power (kW)	2.2	3	3	4
Column rotating angle	±180°	±180°	±180°	±180°
Column rotating speed (rpm)	0.75	0.75	0.75	0.75
Column rotating motor(kW)	0.75	0.75	0.75	1.1
Column rotating locking method	By manual	By manual	By manual	By manual
Boom end max. loading (kg)	300	300	300	300
Trolley traveling speed:mm/min	3000n	3000	3000	3000
Rail inner span(mm):mm	G-G2000	G-G2000	G-G2000	G-G3000

Detail description of welding manipulator:

Used to locate welding torch to a desired position for welding in a stable and secure manner.
Motorized trolley can be included for varying length weldments and procedures.
Robust structure boom holding weld head over welding seam in a stable manner during weld procedure. It is able to achieve the consistent welding results.
With movable trolley, one set welding manipulator can work with multi welding station. Minimize the idler time of welding head during job preparation.
With special design, one boom is able to install two welding head. By two welding head working simultaneously, the working efficiency would be double with normal welding mode.
Relay on flexible co-work with different working station, it increases arc-on time and overall productivity.
It reduced operator fatigue & consumable costs.
Rework time will be reduced and part scrap will be cut.
These benefits greatly reduce the time to prepare a part for welding and the time to finish a part after welding.

Wind tower fit up & growing line project video link:

https://youtu.be/iQVQ4st_fsY

Factroy ISO certification:

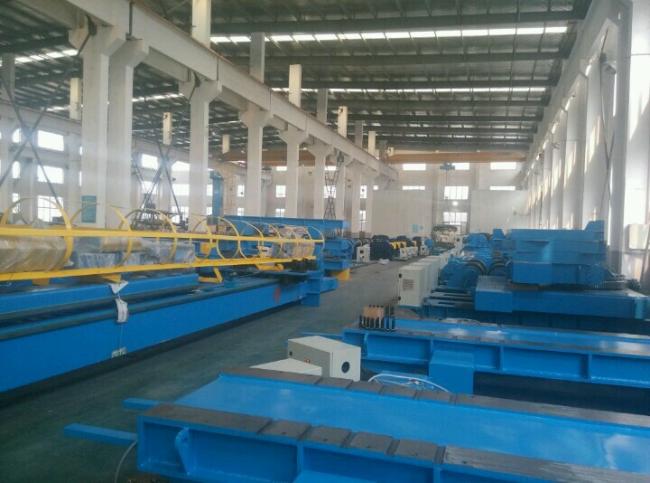

Workshop photo:
