Low pressure AC 12 V Diaphragm Mini Air vacuum Pump , 15L/m 30KPA For Fish Tank
Low pressure AC 12 V Diaphragm Mini Air vacuum Pump 15L/m 30KPA
This diaphragm mini air pump is applied for fish tank, big air flowrate 15L/m, 30kpa.
Quick Detail:
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-15 |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Air Pump | Usage: | Air Pump |
| Power: | Electric | Flowrate: | 15L/m | Fuel: | Electric |
| Pressure: | 30KPA | Application: | pressing air |
Specifications:
| ITEM | SPECIFICATION |
| Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
| Pump Design: | Double diaphragm, duckbill valves |
| Outlet & Inlet Dia: | 0.3"(7.6mm) |
| Electrical Connections: | 1-ft(300mm)Insulated wire pair |
| Noise Level: | 40db unconnected, connected operation will reduce db level |
| Dimension(LxWxH): | 4.2"x3"x2.9"(106x76x74mm) |
| Net Weight: | 0.62kgs |
Pump Body: Aluminium Air Output: 30SCFH(15Lpm)
Pump Pressure: 4.5PSI(30kpa) Power Consumption:10W
Applications:

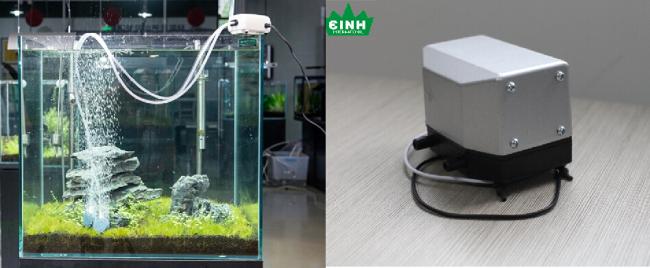

Fish Tank (as picture)
In addition,the micro air pump is supplied every field,such as intermittend pneumatic ,compression(medical),compression therapy,ozone generator,aquarium,recovery system,fragrance,diffuser,air bed,Atmospheric Detection,Dosing chemical material
air cloth,medical applications,industrial applications,balloon,medical,humidifier,blood pressure,
gas monitor,breast and so on.
Performance Curve
