Electric Dual Diaphragm Air Pump Low Noise For Fish Tank With 30 KPA
Electric Dual Diaphragm Air Pump Low Noise For Fish Tank With 30 KPA
Quick Detail:
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-15 |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Air Pump | Usage: | Air Pump |
| Power: | Electric | application: | pressing air | Fuel: | Electric |
| Weight: | 0.62kgs | Size: | 106x76x74mm |
This is Dual Diaphragm Air Pump , 15L/m air flowrate and 30kpa pressure, it has AC220V model, AC110V model, AC24V model, AC12V model. The equipment manufacturers can apply this air pump to make small breathing system, portable and available when urgent, or increase filter system, the users can get fresh air from this system at home each day.
Specifications:
| ITEM | SPECIFICATION |
| Air Output: | 30SCFH(15Lpm) |
| Pump Pressure: | 4.5PSI(30kpa) |
| Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
| Power Consumption: | 10W |
| Pump Design: | Double diaphragm, duckbill valves |
| Pump Body: | Aluminium |
| Outlet & Inlet Dia: | 0.3"(7.6mm) |
| Electrical Connections: | 1-ft(300mm)Insulated wire pair |
| Noise Level: | 40db unconnected, connected operation will reduce db level |
Applications:

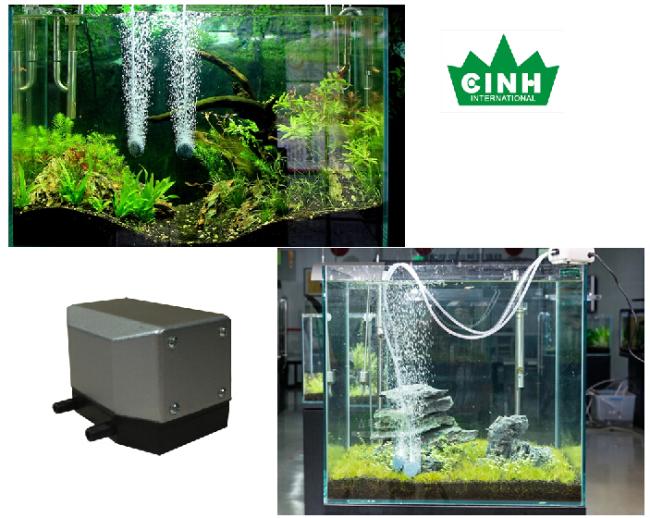

The Dual Diaphragm Air Pump is apply for Fish Tank
In addition,The Dual Diaphragm Air Pump is also applied in many field. such as medical applications,
industrial applications,balloon,medical,humidifier,blood pressure,gas monitor,dosing,water heater ......

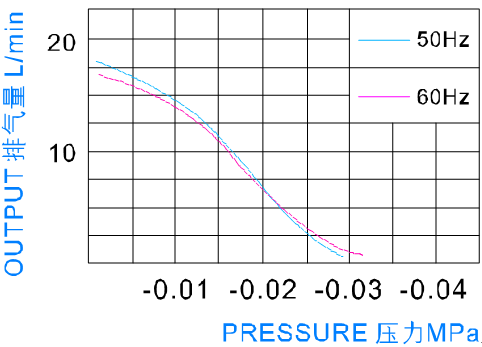

Performance Curve
