AC12V Electric Portable Dual Diaphragm Air Pump 50HZ / 60HZ For Gas Monitor
AC12V Electric Portable Dual Diaphragm Air Pump 50HZ / 60HZ For Gas Monitor
This is one electrical Dual Diaphragm Air Pump it is widely applied to gas monitor industry, it has 15L/m air flowrate output, and 30kpa pressure, stable operating, more than 20,000hours lifetime, 2mm thickness aluminum box cover, prevent electromagnetic escaping.
Quick Detail:
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-15 |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Air Pump | Usage: | Air Pump |
| Power: | Electric | pplicatiAon: | pressing air | Fuel: | Electric |
| Weight: | 0.62kgs | Size: | 106x76x74mm |

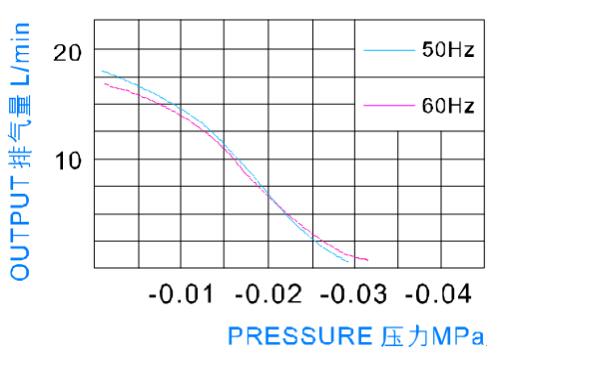

Performance Curve
Specifications:
| ITEM | SPECIFICATION |
| Air Output: | 30SCFH(15Lpm) |
| Pump Pressure: | 4.5PSI(30kpa) |
| Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
| Power Consumption: | 10W |
| Pump Design: | Double diaphragm, duckbill valves |
| Pump Body: | Aluminium |
| Outlet & Inlet Dia: | 0.3"(7.6mm) |
| Electrical Connections: | 1-ft(300mm)Insulated wire pair |
| Noise Level: | 40db unconnected, connected operation will reduce db level |
Applications:
ozone generator
aquarium
recovery system
fragrance diffuser
air bed
Atmospheric Detection
Dosing chemical material
air cloth
medical applications
industrial applications
balloon
medical
humidifier
blood pressure
gas monitor
dosing
cooling system
ink
water heater
boiler
boat
gas boiler
breast
fridge
pillow and mattress
beauty equipment
For more favorable price and more comprehensive information, please contact us, we will provide the timely feedback!
