Rehabilitation Equipment Dual Diaphragm Air Pump 0.03MPA Electric 10W

Rehabilitation Equipment Air Diaphragm Pumps 0.03MPA Electric 10W

Quick Detail:

Specifications:

  Air Output: 30SCFH(15Lpm)                                            Pump Pressure: 4.5PSI(30kpa)

  Power Consumption: 10W                                                Pump Body: Aluminium

  Outlet & Inlet Dia: 0.3"(7.6mm)                                         Net Weight: 0.62kgs

  Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)

  Pump Design: Double diaphragm, duckbill valves

  Electrical Connections: 1-ft(300mm)Insulated wire pair

  Noise Level: 40db unconnected, connected operation will reduce db level

  Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Applications:

The Dual Diaphragm Air Pump Mainly by the repeated charge of multi-cavity airbag sequential deflated, formed the cycle stress of body and organization, and to promote the flow of blood and lymph, and the
function of improve microcirculation; Can directly or indirectly treatment of many diseases associated with blood lymph circulation, the technology has won the international medical community recognition, and is widely used in clinical orthopedics, surgery, endocrinology, families, oncology and other multi- disciplinary field of rehabilitation.



Features:

·   Compact size

·   Steady air outputs with low noise

·   Very low vibration

·   Low power consumption

·   Economical

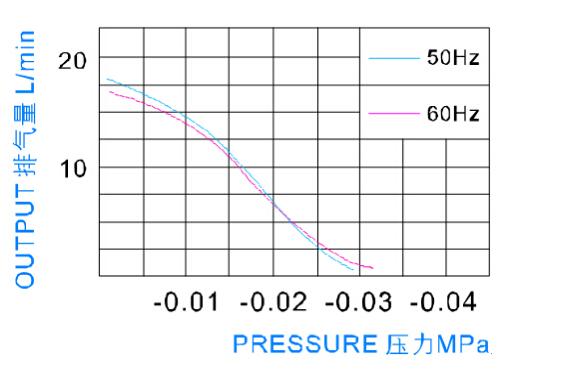

Performance Curve
