10 Watt  Electromagnetic Air Pumps High Pressure 30KPA With Flowrate 15L/M

Specifications:

1.  Pump Body: Aluminium

2.  Pump Pressure: 4.5PSI(30kpa)

3.  Power Consumption: 10W

4.  Outlet & Inlet Dia: 0.3"(7.6mm)

5.  Air Output: 30SCFH(15Lpm)

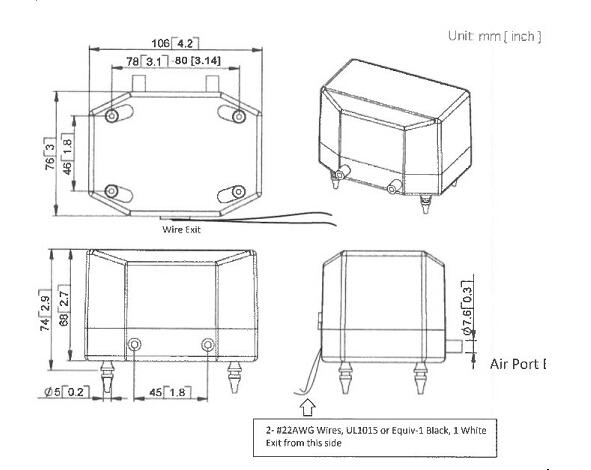

6.  Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)

7.  Pump Design: Double diaphragm, duckbill valves

8.  Electrical Connections: 1-ft(300mm)Insulated wire pair

9.  Noise Level: 40db unconnected, connected operation will reduce db level

10. Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Applications:

The Dual Diaphragm Air Pump is apply for  every fields, as follows:

.compression therapy

.ozone generator

.aquarium

.recovery system

.fragrance diffuser

.air bed

.Atmospheric Detection

.Dosing chemical material

.air cloth

.medical applications

.industrial applications

Performance Curve

PRODUCT  SHOW

Description:

CINH Electromagnetic Air Pump QBF-15 series have the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive,Steady air outputs with low noise, Low power consumption .
