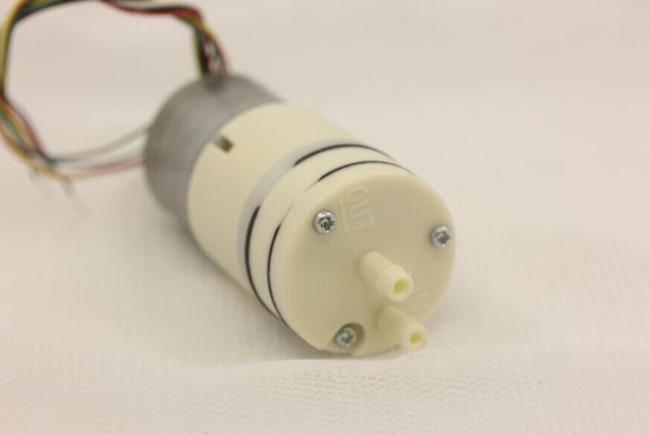

Gas Analyzer Mini DC Air Pump Corrosive Resistance Advanced Pump Film
DC24V Low Pressure Small Electric Air Pumps Electromagnetic For Gas analyzer
|
Model: |
PBA12-1.5S |
|
Type: |
Brushless mini dc air pump |
|
Rated Voltage: |
DC12V, DC24V |
|
Flowrate: |
1.3- 1.5L/m |
|
Consumption current: |
320mA |
|
Vacuum achievement degree: |
More than -40kPa |
|
Max pressure: |
more than 90 kPa |
|
Coil insulation classfication: |
A type |
|
Endurance time: |
more than 8000 hours |
|
Operating noise: |
Less than 30dB |
|
Starting voltage: |
8V |
|
Weight: |
60g |
|
Operating Environmental Temperature: |
5-50.c |
|
Operating Environmental Humidity: |
0-90%RH |
Features
| 1. High temperature performance, good consistency |
| 2. Oil resistance and easy installation |
| 3. DC brush motor |
| 4. Long life span, low heat. |
|
5. Heavy duty work for 24 hours and Continuous operation |
| 6. The key parts are imported |
| 7. Can work for long hours |
Applications:
| Electric pumps | electronic blood pressure monitor |
| The monitor | The head massager |
| A tourniquet | Massage goggles |
| Alcohol detector | The coffee machine |
| Breathing machine | Analyzer |
| Ozone machine | Gas analyzer |
| Beautiful leg massager | Treadmill medical apparatus and instruments, etc. |
Instructions to use air pump
1, Do not submerge the air pump into the water.
2, Air pump must be above water level
3, Do not oil any time
4, Disconnect the plug if the pump fails down
5, Clean or replace air tubble or stone regulary to abtainmaximum air outlet and longer life.
6, Make sure to use the proper valtage
Important safe guard:
Disconnect all the plugs of the electrical appliances before putting hands into the water.
We recommend that air pump and other electrical devices,should be connected to power supplies with ground fault circuit interrupters.
