5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting
Price:
Negotiate
MOQ:
1
Delivery Time:
7-10 working days
Brand:
Sunshineopto
Product Description
5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting
High-performance LED light module featuring TYPEII optic lenses and 5050 SMD LEDs for outdoor lighting applications.
Product Overview
The 5050 SMD LED Light Module with IP65 waterproof rating and 150lm/W luminous efficacy is designed for outdoor lighting applications, offering high brightness, energy efficiency, and durability. Made for commercial and industrial sectors, this module is ideal for projects requiring weatherproof lighting, such as street lighting, floodlights, security lighting, landscape lighting and so on.The 5050 SMD LED provides exceptional light output while consuming minimal power, making it a reliable and cost-effective solution for large-scale lighting installations. Whether you are lighting up urban streets, highways, or building exteriors, this outdoor LED module guarantees long-lasting performance, even in the most demanding environments.This LED module is designed to meet the needs of customers in the lighting manufacturing, wholesale distribution, and contractor sectors, offering high-efficiency, IP65 waterproofing, and versatile compatibility with different lighting systems.
Product Specifications
| Model No. | SUN-SL118X113-24-5050-TYPEII |
| Output Power | 30W/50W/60W/100W |
| Luminous Efficacy | 150LM/W |
| Beam Angle | TYPE2 |
| Lens Size | 118x113x7.7mm |
| Color Rendering Index(Ra) | 80 |
| Waterproof | IP65 |
| Transmittance | 93% |
| Lens Material | PC |
| Match LED | 5050 SMD LED |
| Kit Components | Array lens + silicon gasket + PCB + Heat sink |
| PCB Board Circuit | 2 series 12 parallel / 48v |
| Woking Hours | 50000 hours |
| Warranty | 3 years |
Product Details Drawing
Beam Angle Diagram:

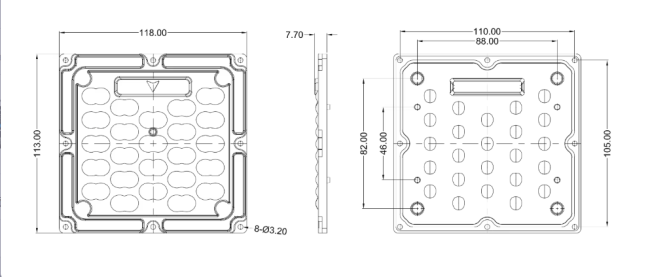

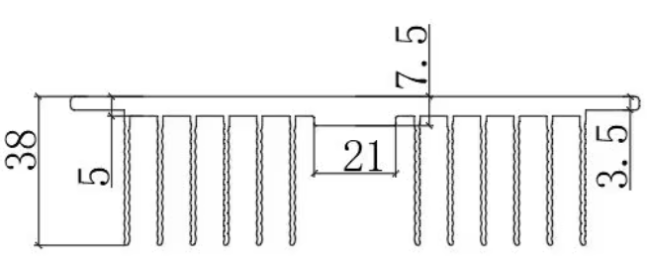

Lens and Heat Sink Dimensions Drawing:
Key Features
- LED CHIP: 5050 SMD, high light output for bright illumination
- Optical Grade PC Lens: Transmittance up to 93%, ensuring clear visibility
- Beam Angle: Type2, suitable for wide area lighting needs
- IP65 Waterproof Rating for Outdoor Durability
- The heat sink of the module is optimized to ensure that it remains cool even during prolonged operation, making it ideal for high-power outdoor lighting systems
- Lowest Total Cost Solution: Replaces old lamps efficiently, reducing costs
- Industry-Leading Thermal Management
- With high luminous efficacy, this module is designed to provide superior light output in street lights, floodlighting, security lighting, and other outdoor lighting applications.
Applications
- Tunnel lights
- Industrial lights
- Parking lights
- Warehouse lights
- Street lamp
- High bay light
- Stadium lights
Shipping & Delivery Informations
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB | EXW | CIF | CNF |
| Sample Availability | YES |
| Standard Delivery Time | 3-4 working days |
