Wholesale 20W 36 Points SMD LED PCB Module IP65 Rated High Power LED Board for Street Light / Outdoor Lighting
Price:
Negotiate
MOQ:
100
Delivery Time:
7-10 working days
Brand:
Sunshineopto
Product Description
Wholesale 20W 36 Points SMD LED PCB Module IP65 Rated High Power LED Board for Street Light / Outdoor Lighting
Product Overview
This 20W 36 Points SMD LED PCB Module with 36V DC input is a premium lighting core solution developed by Shenzhen Sunshine Opto‑Electronics Technology Co., Ltd., tailored for LED street lights, flood lights, garden lights, industrial luminaires, and retrofit lighting projects. The module combines 36 pieces of high‑efficiency SMD 3030 LED chips, robust PCB layout, and an optical grade lens to deliver reliable, bright illumination with wide beam control and long service life, all in a compact IP65 waterproof package.
Product Specifications
| Model No. | SUN-LD36H1-3030 |
|---|---|
| Power (W) | 20 | 25 | 30 |
| Voltage (Vf/V) | 35.25 | 35.91 | 36.55 |
| Current (If/mA) | 599.9 | 719.9 | 839.9 |
| Color Temp Tc (K) | 5000 |
| Efficiency (Im/W) - Without Lens | 168.48 | 160.82 | 155.65 |
| Luminous Flux (φv/lm) - Without Lens | 3563 | 4158 | 4779 |
| Color Index (Ra) | >70 |
| Lens Beam Angle | 30/60/90/150/60×60/90×90/145×63/143×50/157×90 degree |
| LED Configuration | 36pcs 3030 LEDs |

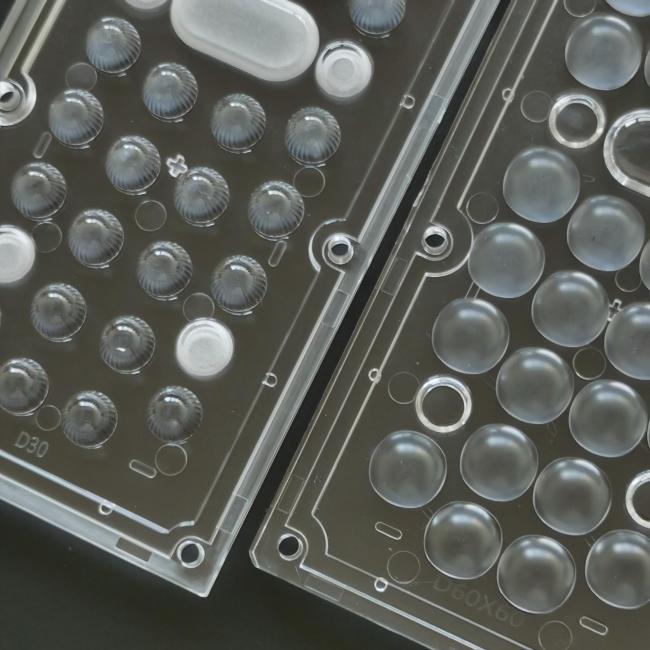

| Lens Size | 173×71.4×6.6mm |
| PCB Size | 145×45×1.5mm |
| PCB Circuit | 9 series 4 parallel or 6 series 6 parallel |
| LED Type | SMD 3030 LED |
| Transmittance | 91% |
| Protection Level | IP66 |
| Working Temperature | -30°C to 50°C |
| Storage Temperature | -30°C to 65°C |
| Service Life | 50,000 hours |
Key Features
- High Luminous Efficiency: 150-170lm/watt for superior brightness output
- Wide Angle Options: Multiple beam angles including 30/60/90/150 degrees for versatile applications
- Extended Longevity: 3-year warranty ensures reliable performance
- Compact Design: 173×71.4mm dimensions for easy installation and replacement
- Durable Lens: 91% transmittance optical grade PC lens for optimal light output
- IP65 waterproof rating ensures module reliability in outdoor lighting, resisting dust and water spray.Perfect for street lighting, parking lot luminaires, landscape lighting, and industrial outdoor fixtures.
Product Applications
-
LED street and urban road lighting
-
Highway and industrial park road lighting
-
Tunnel, bridge, and underpass lighting
-
Parking lot, square, and garden lighting
-
Retrofit projects for existing street lights and energy-saving upgrades
Shipping & Delivery
| Shipping Method | Delivery Time |
|---|---|
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB | EXW | CIF | CNF |
| Sample Availability | YES |
| Standard Delivery Time | 3-4 working days |
