COB Led Reflector 50mm Diameter 38 Degree Beam Angle For CXA 1304 CXA 1512
COB led Reflector, 50mm Diameter reflector with 38 degree for CXA 1304 CXA 1512
Quick Detail:
1. Dia 50mm Height 30mm
2. Angle 10,23,38 degree
3. materials : PC
4. Match for 10-100w LEDs
5. with PC holder, light pipe
6. Bottom hole: diameter 21.3mm
Specifications:
|
Model : |
SD5021-38 |
|
Dimension |
Dia 50mm Height 30mm |
|
materials : |
PC |
|
Beam Angle |
10,23, 38 degree |
|
Accessories |
with PC holder, light pipe |
|
Led chips |
For 10-100w COB LEDs |
|
Applications |
for Spot Light / Miner lighting / Flood light / High bay light |
Contact details:
June
Sunshine Opto-Electronics Enterprise
Email/Skype :aftersales@sunshineopto.com
Mobile: +86-13556836177(wechat/Whatsapp)

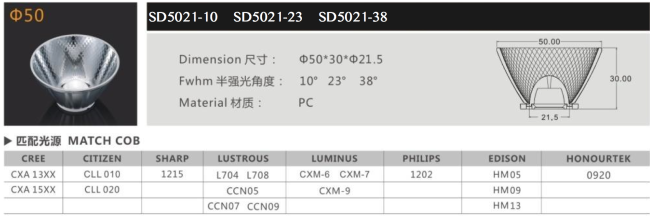

Dimension:
Competitive Advantage:
1. One-Stop Service of led components and 6 years specializing in High Power LED industry
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules for led street light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
Production line:
