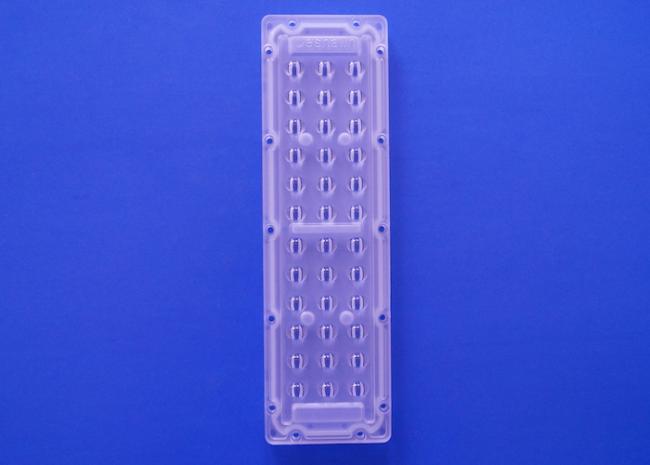

High Luminous LED Street Light Lens High Power LED 3535 LED LENS 36 IN 1 250x70mm
High Luminous high power LED 3535 LED LENS 36 IN 1 250x70mm Urban street light LENS
Product Feature:
1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use CR3535 leds ,High quality leds guarantee long life .
3. We have a competitive price for CR3535 leds .
4. We can according your requirements to desion new Lens and Board.
5. This SKD 36 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 100W,110W and so on .
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
1, Product Name | High Luminous high power LED 3535 LED LENS 36 IN 1 250x70mm Urban street light LENS |
2, Model No | SUN-LD3x12-3535-65x150 |
3, Main parts | 36 Array lens , silicon gasket+PCB+ CR3535 LED |
4, Lens Material | PC |
5, Lens size | 250X70MM |
6, Transmittance | 91% |
7,LEDS | XPE/XPG/XPE 3535 LED |
8, Sample | 3-4 work day |
9, Delivery | 5-7 work days for 10000 sets |
10, Angle | 65X150 DEGREE |
11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
12, Main market | Europe, South America,North America, Asia |
Related products:
Model No. | Power(W) | Angle( degree) | Lens size(mm) | PCB size(mm) | Circuit |
SUN- LD3X12-3030-45X150 | 25-30W | 45X150 | 272x70x7.43 |
| |
SUN-LD3x12-3030-140x70 | 25-30W | 140X70 | 250X70 |
| |
SUN-LD3x12-3030-90x90 | 25-30W | 90X90 | 250X70 |
| |
SUN-LD6X6-3030-60X140 | 25-30W | 60X140 | 120x110 | 89x89x1.5 | 6S6P |
LENS Dimensions :
