18.5KW 25HP High Pressure Common Rail Pump Test Bench With Fuel Tank Capacity 80L 2000 Bar

ADMTECK

ADM8719,18.5KW 25HP High pressure Common Rail Pump Test Bench with Fuel tank capacity 80L 2000 bar

Quick Details

1. Main motor power:18.5KW(25HP)；

2. Working voltage: 3 phase 220/380/415V,    50HZ/60HZ；

3. Speed range: 0—4000rpm；

4. Supply pressure of the testing fuel: 0—4bar；

5. Fuel tank capacity: 80L；

6. Currency control range: 0—3A；

7. Injection width control range: 100--3000µs；

8. Injection volume range: 0.1ML—2000ML/1000times；

9. Backflow measuring range: 6—400L/H；

10. Pressure control range: 0—2000BAR；

11. Fuel temperature range: 30--60℃；

12. Cooling method: Compressor cooling

13. Cooling capacity: 5000KAL

MAIN FUNCTIONS:

1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4, DELPHI and SIMENS

2. Test the flow control valve of the common rail pumps.

3. Test the sealing of the CR injectors, the injection flow volume under full loaded, emission point, idling

and the pre-injection, also back flow volume.

Competitive Advantage:

• Condition
• High Quality
• Reasonable Price
• Good after Service
• More Than 10 Years Experience
• Transport Terms: By Sea
• Packing : wooden box

 ADM8719 common rail test bench is our latest independent researched special device to test the

performance of high pressure common rail pump and injector, it can test common rail pump and injector ofBOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported high precise flow

meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also obtained by computer. 19 LCD screen display makes the data more clear. ADM8719 can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced technology, steady performance, precise measurement and convenient operation.

Technical Specifiion:

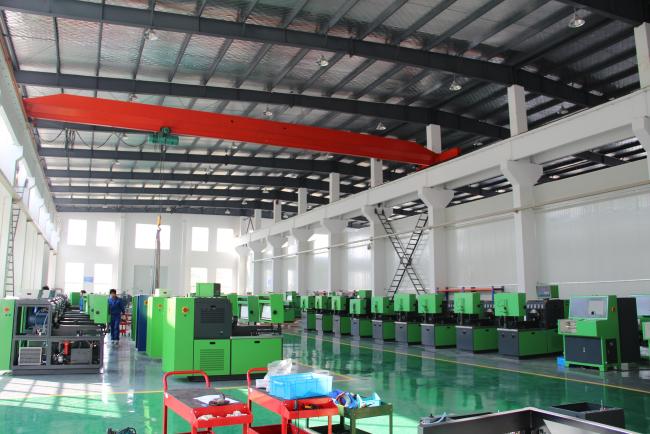

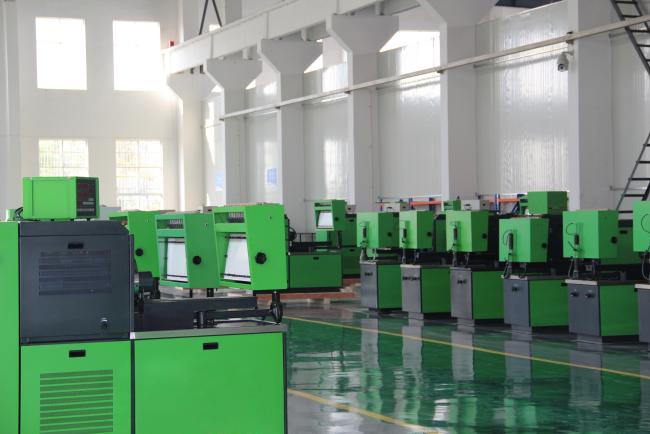

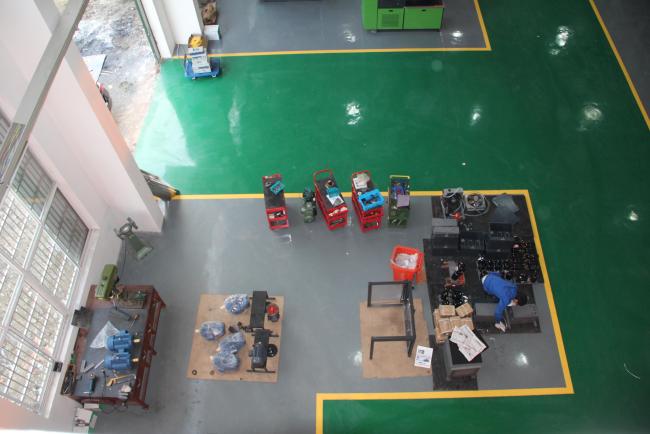

Factory Pictures:
