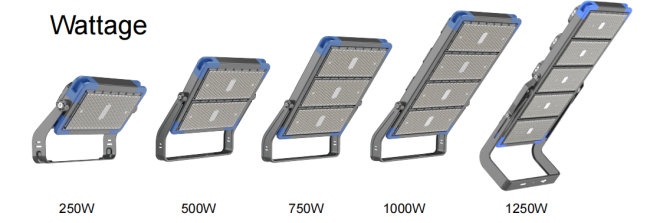

250W/500W/750W/1000W/1250W LED Flood Light IP66 Outdoor Flood Light Fixtures Waterproof
500W IP66 67200lm±5% 3000K-6500K Ironman Family LED High Mast Light for Sport Court/Airport/Parking Lot
Product Description:
- IP66 500W LED High Mast Light
- Input: AC100-277V 50-60Hz
-
Beam Angle: 10/25/45/60/90° 130*30*60/65*25*60°
- CCT: 3000K-6500K
- PF: >0.95
- Lifespan: >=50000Hrs
Technical Spec:
| Model No. | MF-1RF-250w | MF-1RF-500w | MF-1RF-750w | MF-IRF-1000w | MF-IRF-1200w | |
| Itrput Voltage | AC100-277v 50/6Hz | AC100-277v 50/6Hz | AC100-277v 50/6Hz | AC100-277v 50/6Hz | AC100-277v 50/6Hz | |
| Output Voltage | Dc42v | DC42v | DC42v | DC42v | oC42v | |
| Rated Power |
240W
|
480W | 720W | 960W | 1200W | |
|
Qty of LED
|
343PCS*3030
|
686PCS*3030
|
1029PCS*3030
|
1372PCS*3030
|
1715PCS*3030
|
|
| PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | |
| LED BRAND | Lu-mileds | Lu-mileds | Lu-mileds | Lu-mileds | Lu-mileds | |
| Luminous Flux | 33600lm±5% | 67200lm±5% | 100800lm±5% | 134400lm5% | 168000lm±5% | |
| CRI | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,9o | |
| CCT | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | |
| Beam angle |
10°/25°/45°/60°/90°/130*30*60°
|
|||||
| Driver Brand | Mean-Well/So-Sen | |||||
| THD | <10% | |||||
| IK RATE | IK08 | |||||
| IP RATE | IP66 | |||||
| Life span | 50000Hrs | |||||
| U-L/ETL/DLC/TuV/CB/ENEC/CE/SAA/FCC/RoHS/coc | ||||||

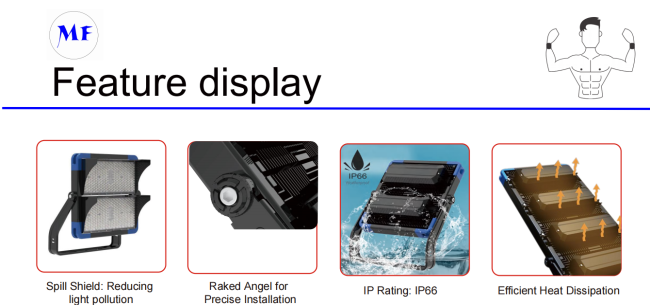

Main Features:
International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V,DALI2.0)
Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light decay.
Optical UV resistant PC lens with 94% light transmitance, IK08. Light Distribution: 10°/25°/45°/60°/90°/130*30*60°/65*25*60°
Bracket Installation, operation temperature: -35C- +50C

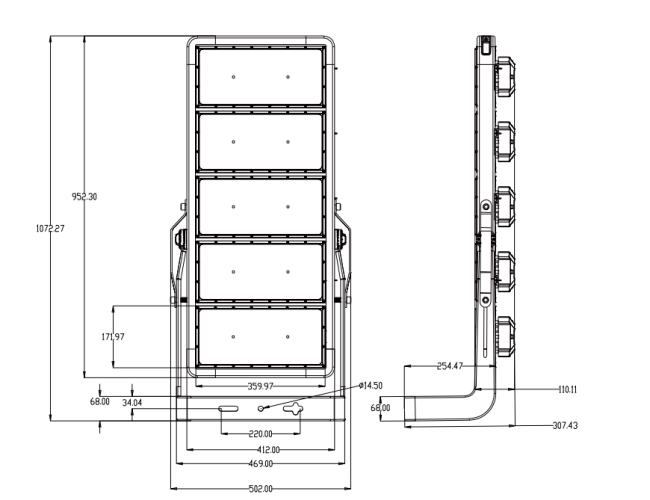

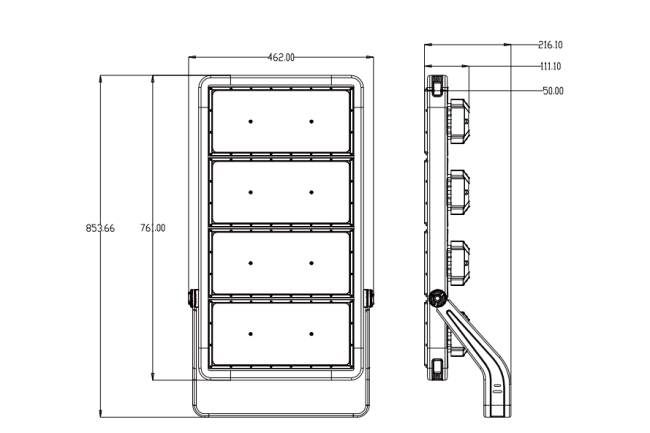

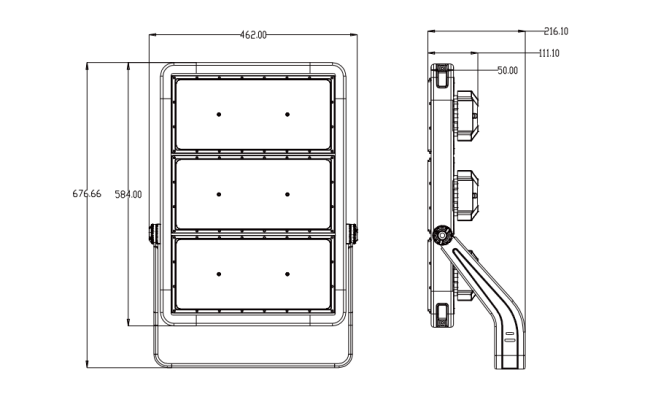

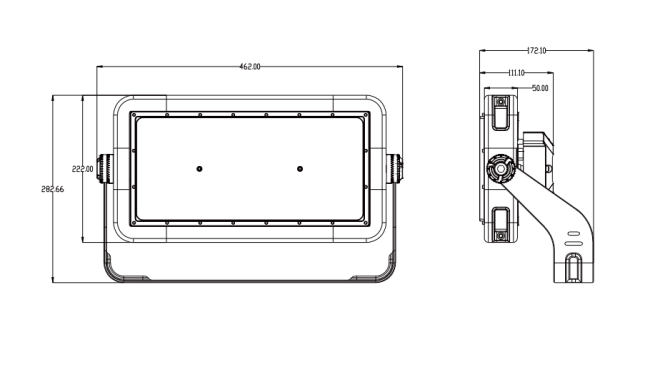

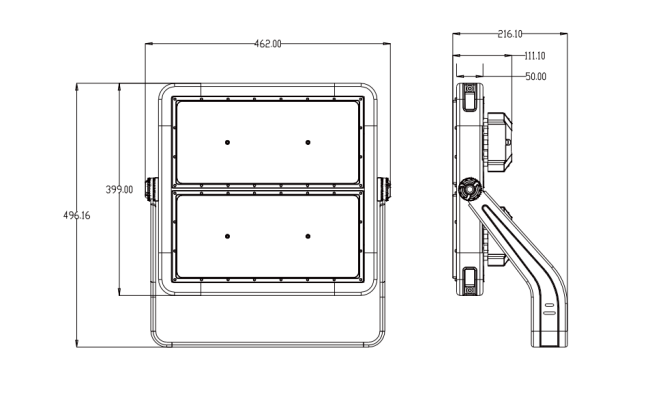

Dimensions:
250W
500W
750W
1000W
1200W
Accessories:
Anti-light Cover, 10KV Lighting Arrestor

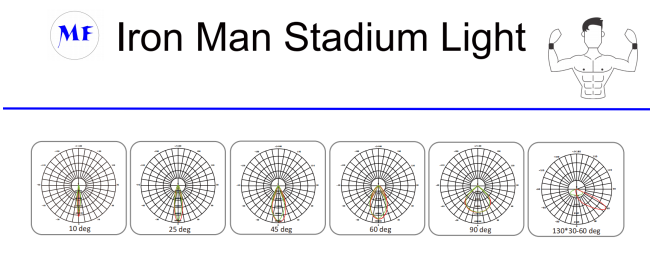

Light Distirbution Curve:

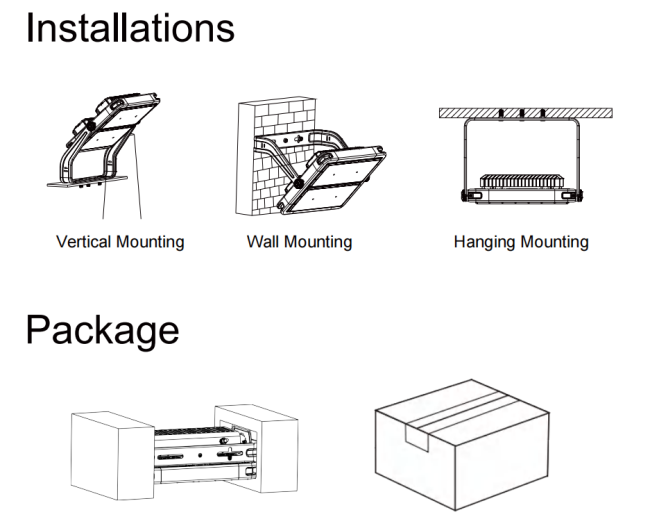

Installation & Package:

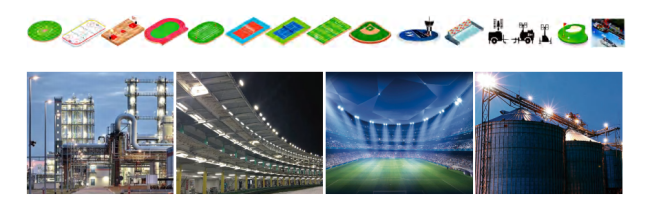

Application Area:
Roads and highways
Parking lots
Sports stadiums
Railroad yards
Shipyards
Warehouses
Truck stops and rest areas
Outdoor parks and recreation areas
Playgrounds
Storage facilitie
FAQ:
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
