IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power
IP66 Sport Court Football Stadium Light Flood Lamp Asymmetric Beam Angle Wind Resistant High-Power LED Projector Light
MF LED floodlight is equipped with a die-casting heat sink that provides excellent thermal management and a compact structure. It features a single module that ranges from 50W to 60W, and up to five modules can be combined into a powerful 300W unit. The high-strength polycarbonate lens ensures superior light transmission and is rated IK08, while the optional tempered glass cover makes it suitable for harsh conditions. The embedded cable raceway optimizes cable layout for a neat and tidy appearance. With a racked angle that allows for precise installation up to 270°, this floodlight can be easily adjusted to suit any situation. The 4mm thickness L shape bracket provides excellent wind resistance with a rate of 17. The photometry options include symmetrical beams of 30°, 45°, 60°, and 90°, as well as asymmetric beams of 150°*80°/120°*90°, making it a versatile solution for a wide range of outdoor lighting applications.
| Electrical Data | |
|
Driver
|
Meanwell/Sosen
|
|
Input Voltage
|
AC100-277V,50-60Hz
|
|
Power Factor
|
>0.95
|
|
Output Voltage
|
DC45V
|
|
Total Harmonic Distortion
|
<15%
|
|
Driver Eciency
|
92%
|
|
IP Rating
|
IP66
|
|
Lifespan
|
60,000Hrs
|
|
Housing
|
ADC12
|
|
Lens Material
|
Polycarbonate
|
|
Fixture Size
|
L486xW372xH97mm (250W/300W)
|
|
Carton Size
|
432*546*148mm(250W/300W)
|
|
Net Weight
|
5.5KG(250W/300W)
|
|
Gross Weight
|
6KG (250W/300W)
|
| Optical Data | |
|
Power
|
50W/60W/100W/120W/150W/180W
200W/240W/250W/300W |
|
LED Chips
|
O-SRAM
|
|
Luminous efficiency
|
140~150lm/W
|
|
Luminous Flux
|
Refer to IES
|
|
CCT
|
3000K~6500K
|
|
Beam Angle
|
25/45/60/90/80*150/90*120° |
| CRI(RA) |
70+/80+
|

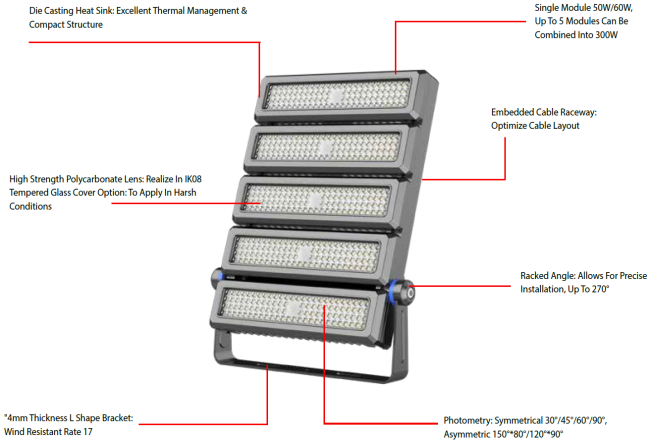

* Die Casting Heat Sink: Excellent Thermal Management & Compact Structure
* Single Module 50W/60WUp To 5 Modules Can Be Combined Into 300W
* Hiah Strenath Polvcarbonate lens: Realize In lk08
* Tempered Glass Cover Option: To Apply In Harsh Conditions
* Embedded Cable Raceway:Optimize Cable Layout
* Racked Angle: Allows For Precise Installation, Up To 270°
* "4mm Thickness L Shape Bracket: Wind Resistant Rate 17
* Photometry: Symmetrical 30°/45°/60°/90°
Asymmetric 150°*80°/120°*90°
50W 60W 100W 120W 150W 180W
200W 240W 250W 300W
Vertical Horizontal Suspended
Spill Shield

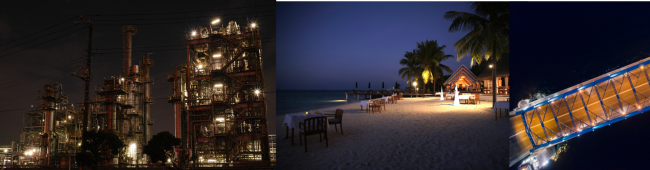

Roads and highways / Parking lots / Sports stadiums / Railroad yards / Shipyards / Warehouses / Truck stops and rest areas /
Outdoor parks and recreation areas / Playgrounds / Storage facilities
Any Outdoor place,Etc
