120W 25W 50W 75W IP65 Waterproof Outdoor Public LED Street Light for Garden Road Backyard Courtyard
25W 50W 75W 120W IP66 IK08 3000-5700K AC100-277V Bear Family LED Street Light for Highway/Street/Roadside
Quick Details
1. IP65 25W 50W 75W 120W LED Street Light
2. Input: AC100-277V 50-60Hz
3. Beam Angle: Type III Type IV Type V
4. CCT: 3000K-5700K
5. CRI: 70/80/90
6. Warranty: 5 years
Technical Specification
North America Market:
| Replace MHL Up to | Watts | Initial Delivered Lumens | Distribution Type | IP & IK | N.W | Certificate |
| 150W | 50W | 6750LM | Type V | IP65 IK08 | 19.6lbs (8.9kg) |
CUL DLC |
| 200W | 75W | 9750LM | Type V | IP65 IK08 | 21.8lbs (9.9kg) |
CUL DLC |
| 350W | 120W | 15000LM | Type V | IP65 IK08 | 22.5lbs (10.2kg) |
CUL DLC |
European Market:
| Replace MHL Up to | Watts | Initial Delivered Lumens | Distribution Type | IP & IK | N.W | Certificate |
| 75W | 25W | 3625LM | Type V | IP65 IK08 | 19.6lbs (8.9kg) |
ENCE CB CE RoHS |
| 150W | 50W | 6750LM | Type V | IP65 IK08 | 21.8lbs (9.9kg) |
ENCE CB CE RoHS |
| 200W | 75W | 9750LM | Type V | IP65 IK08 | 22.5lbs (10.2kg) |
ENCE CB CE RoHS |
| 350W | 120W | 15000LM | Type V | IP65 IK08 | 22.5lbs (10.2kg) |
ENCE CB CE RoHS |

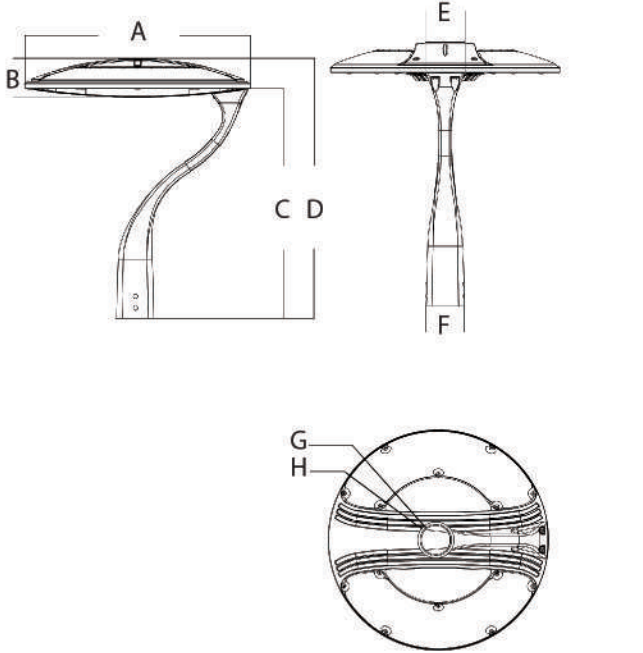

Dimensions
| A | B | C | D |
| 460mm/18.11" | 80mm/3.15" | 468mm/18.44" | 530mm/20.86" |
| E | F | G | H |
| 78mm/3.08" | 76mm/2.99" | 66mm/2.6" | 76mm/2.99" |

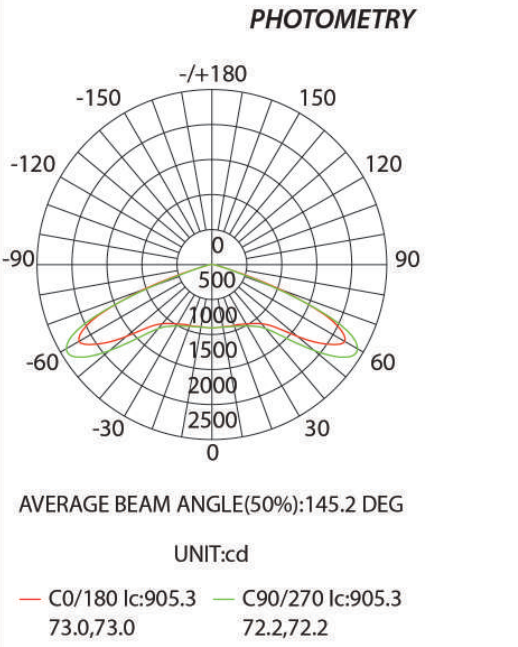

Light Distribution Curve

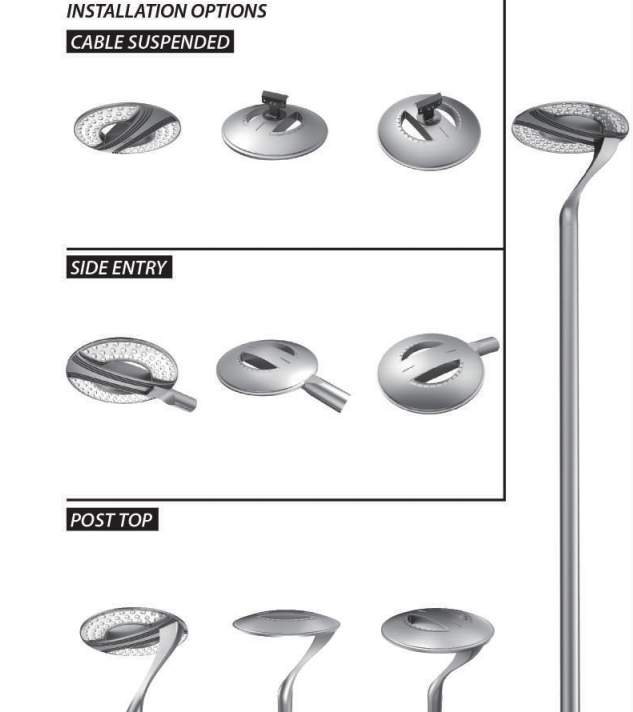

Installation
Applications
Ideal for highways, viaducts, urban streets, overpasses, sidewalks, squares, schools and other outdoor lighting place.
FAQ
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
