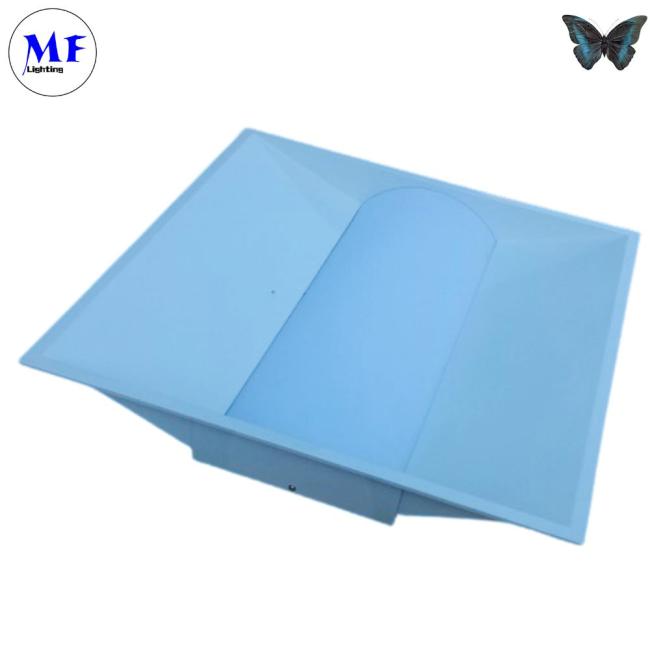

Square Drop Ceiling 35W Supermarket Plastic LED Center Basket Troffer Panel Light For Hospital School Office Hotel
26W/35W/50W 130lm/w Warm White/Pure White/Cool White IP40 LED Troffer Panel Light for Indoor Areas
Technical Specification
| Model NO. | MF-26W-22-40K | MF-35W-22-40K | MF-35W-22-40K | MF-50W-22-40K |
| Watt | 26W | 35W | 35W | 50W |
| Size | 595*595 | 1195*595 | ||
| N.W | 2.0 kg/pc | 4.2 kg/pc | ||
| Input Voltage | AC200-240V, 50Hz | |||
| Lumen | 130lm/W | |||
| LED | SMD2835 | |||
| CCT | Warm White/Pure White/Cool White | |||
| Beam Angle | 120° | |||
| CRI | >80 | |||
| THD | <20% | |||
| PF | >0.9 | |||
| Material | Plastic+PC | |||
| Working Temp. | -20ºC-+45ºC | |||
| Storage Temp. | -25ºC-+65ºC | |||
| IP Grade | IP40 | |||
| Lifespan | 30,000H | |||
Product Features
- CE & RoHS certificate
- AC 200-240V
- LED Source: SMD2835, CRI>80, LM80 report
- PF>0.90, THD <20 %
- Plastic frame + PC
- Ideal replacement for traditional troffer with over 80% energy saving!
- 3 years warranty
Fire-Resistance
Dimensions
| Model NO. | MF-26W-22-40K | MF-35W-22-40K | MF-35W-22-40K | MF-50W-22-40K |
| Size(mm) | 595*595 | 1195*595 | ||
INstallation & Packing
Product Show

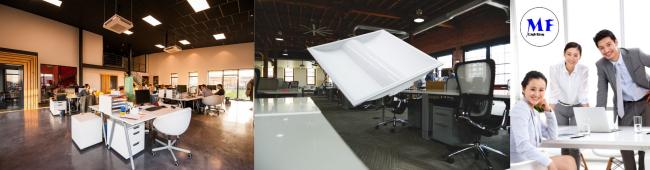

Applications
Offices / Classrooms / Malls / Hotel / Lobbies / Back of house / Restaurants / Bus Stations / Medical Facility, etc.
FAQ
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
