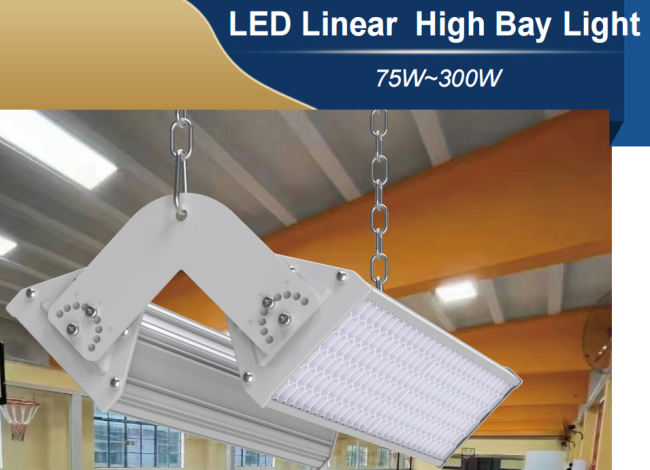

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages
Features
1. Materials: Dia-casting Aluminum.
2. House color: White.
3. 100W,150W One Module; 150-400W Two Modules.

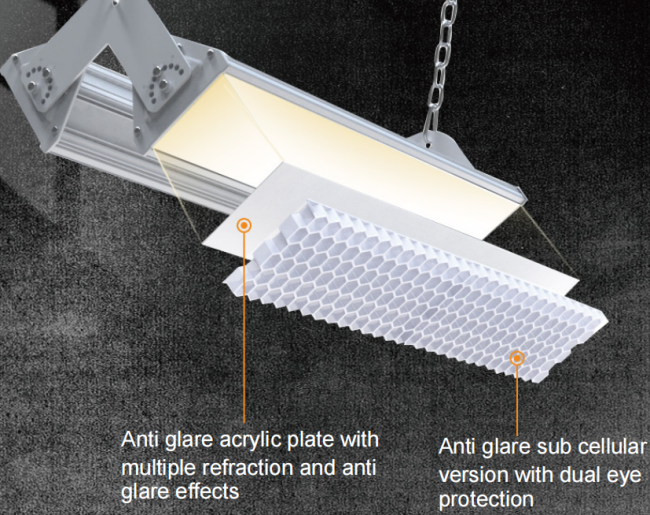

4. UGR<19 Anti-glare design with Honeycomb reflector.

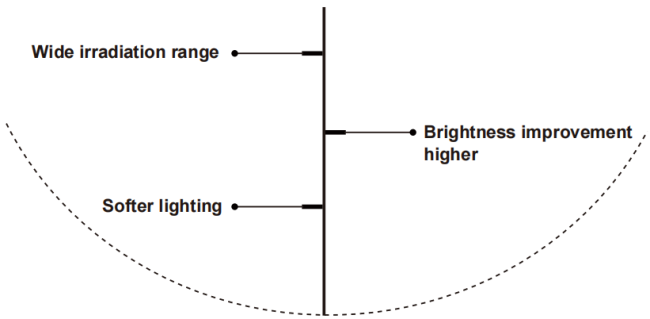

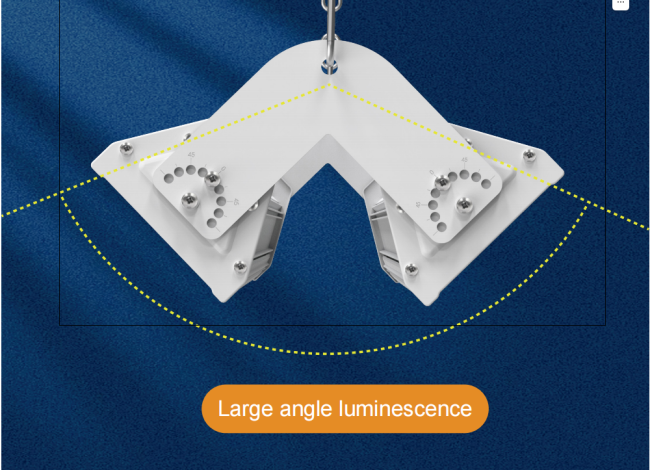

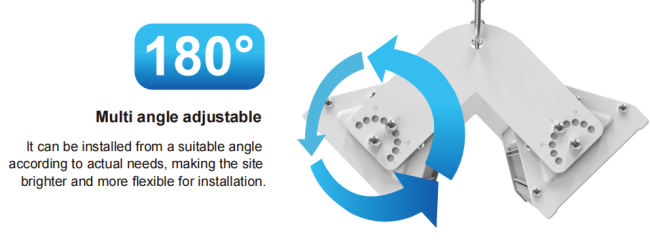

5. Beam angle adjustable
Introduce
1.Use SMD3030 LED,high light efficacy high CRI,the lamp fixture light eficacy is up to 130lm/W.
2.AC85-265V input costant voltage constant current power drive,which has short circuit/overvoltage/over current/over-temperature protection.
3.1060 aluminum,module design,appearance oxidation powder treatment,whole lamp IP65 waterproof and dust proof,corrosion resistance.

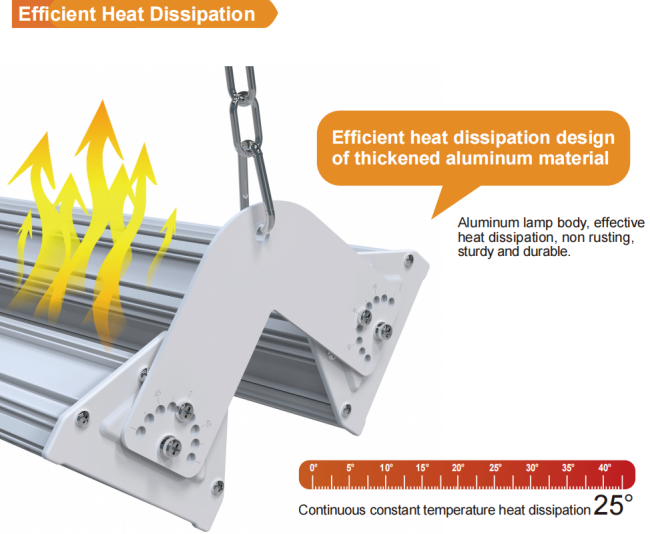

4.Multi-module 3D stereo heat dissipation,long strip moduleshaped,Air convection duct design,uniform heat dissipation,forming 3D
stereo heat dissipation to dissipate heat to the maximum.
energy saving eye protection
|
Item |
One module | One module | One module | Two module | Two module | Two module |
| 75W | 100W | 150W | 150W | 200W | 300W | |
| Power | 75W | 100W | 150W | 150W | 200W | 300W |
| Lumen | 6300lm | 8400lm | 12600lm | 12600lm | 16800lm | 25200lm |
| Efficacy | 84lm/W | |||||
| CCT | 2700-6500K | |||||
| CRI | ≥80Ra | |||||
| LED | San'an/Lumileds/SMD 3030 | |||||
| PF | >0.97 | |||||
| Input voltage | AC100-277V | |||||
| THD | 15%<THD<20% | |||||

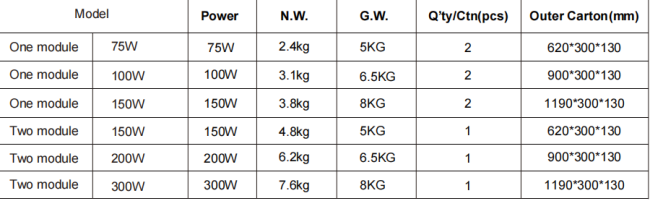

| N.G. | 2.4KG | 3.1KG | 3.8KG | 4.8KG | 6.2KG | 7.6KG |

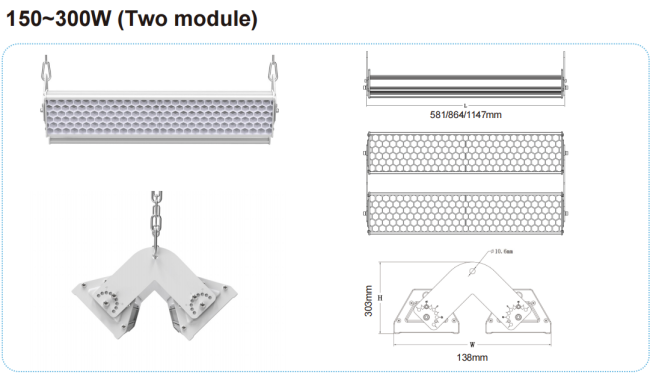

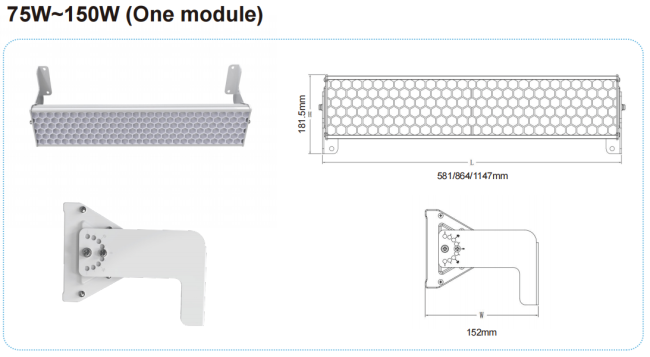

| Size(mm) | 581*181.5*152 | 864*181.5*152 | 1147*181.5*152 | 581*303*138 | 864*303*138 | 1147*303*138 |

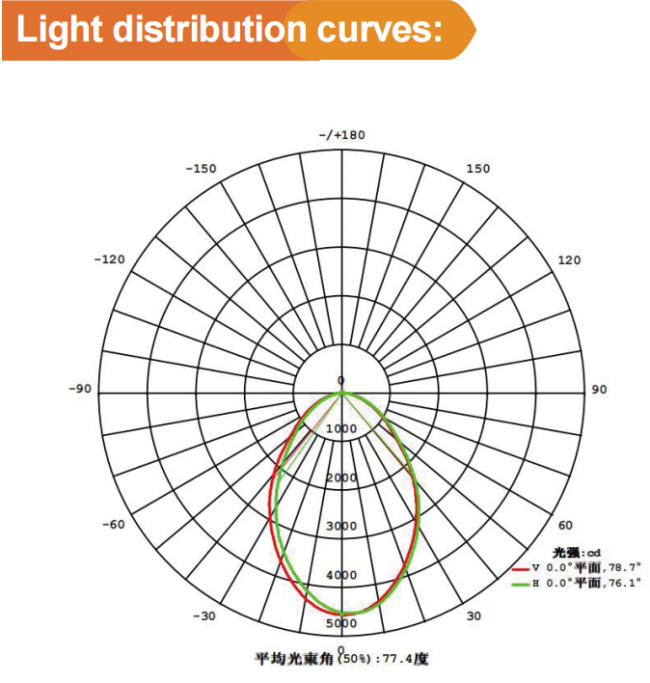

| Beam Angle | 75° | |||||
| Work Temp | -20~+40ºC | |||||
| Humidity | 15%~90%RH,nocondensing | |||||
| Surface | Sprayed with outdoor special powder | |||||
| Life span | ≥50000 Hrs | |||||
| IP | IP40 | |||||
| IK | IK08 | |||||
| Product Material | ||
| Power Wire | Body material | Electronic security level |
| Cable(3*0.75mm²) L=1.5m | Aluminum+PC | Class I |
Manufacturing Facilities: In manufacturing plants, where precision and safety are paramount, linear LED high bay lights offer exceptional lighting conditions. They diminish shadows and glare, enabling workers to execute intricate tasks with precision and accuracy. The superior quality of light enhances productivity among workers while minimizing the risk of accidents.
Gymnasiums and Sports Facilities: Linear LED high bay lights are extensively deployed in sports arenas, gymnasiums, and indoor stadiums. They provide bright and even illumination across the playing area, ensuring optimal visibility for athletes and spectators alike. The instant-on capability of LED lights proves advantageous during sports events and competitions.
Retail Stores and Supermarkets: Linear LED high bay lights are increasingly embraced in retail settings to create an inviting and well-illuminated shopping experience. They accentuate merchandise displays, improve color rendition, and foster a pleasant ambiance, enhancing the overall customer experience.
Exhibition Halls and Convention Centers: Linear LED high bay lights are commonly employed in large exhibition halls and convention centers to deliver adequate lighting for trade shows, conferences, and events. They provide uniform and consistent illumination, guaranteeing effective showcasing of exhibits and presentations.
Parking Garages: LED high bay lights find utility in parking garages and car parks, enhancing visibility and ensuring the safety of drivers and pedestrians. They provide bright and uniform lighting, substantially reducing the risk of accidents and improving overall security.
Indoor Agricultural Facilities: Linear LED high bay lights are extensively used in indoor farming operations, such as vertical farms or greenhouses, to provide the necessary light spectrum for optimal plant growth. LED lights can be customized to emit specific wavelengths of light, effectively optimizing photosynthesis and increasing productivity.
