IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine

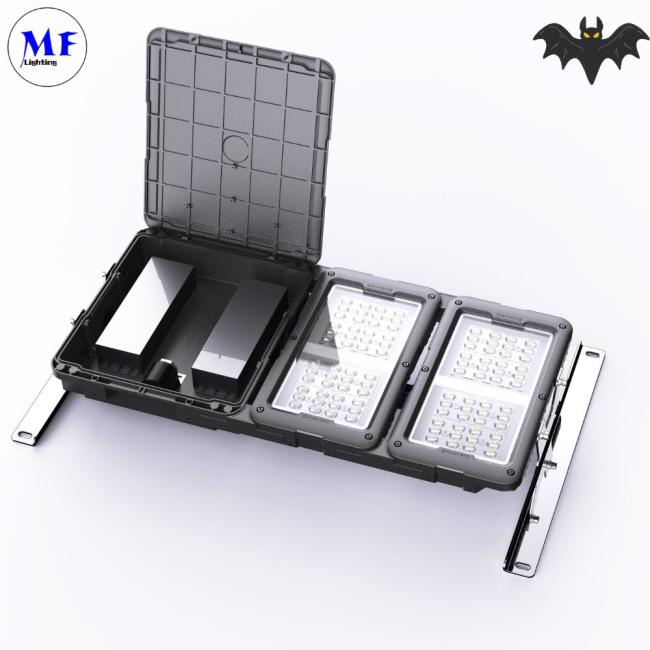

The MF Tunnel Light T9 series is an efficient lighting solution designed specifically for underground spaces such as tunnels and bridges. The product range includes 10 power specifications from 40W to 450W, utilizing high-quality Lumiled' LED beads to ensure a long service life of up to 80,000 hours. The product offers three color temperature options: warm white, cool white, and natural white, with a color temperature range of 3000K to 6000K and a luminous efficacy of 140lm/W to 150lm/W. With an IP67 protection rating and an aluminum alloy housing, the product is suitable for various harsh environments.
 |
Enhanced Insulation Design

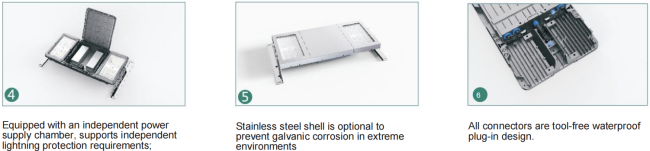

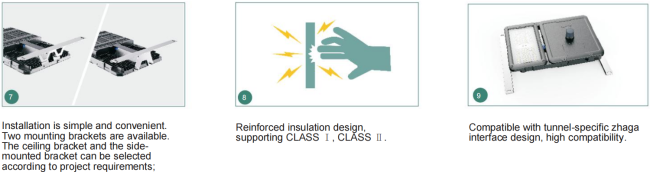

The product features a reinforced insulation design that supports both Class I and Class II power supplies, ensuring electrical safety. Optional Stainless Steel Housing An optional stainless steel housing is available to effectively prevent electrochemical corrosion in extreme environments, thereby extending the service life. Next-Generation High-Brightness Outdoor LED The use of a next-generation high-brightness outdoor LED with lower current drive enhances the overall luminous efficiency by approximately 10% and reduces light decay. Simple and Convenient Installation The product offers simple and convenient installation with two mounting bracket options: ceiling and side wall, allowing for flexible selection based on actual needs. |
| Powe | 40W | 50W | 60W | 80W | 100W | |||
| Luminous Flux | 5600±5%Im | 7000±5%Im | 8400±5%Im | 11200±5%Im | 14000±5%Im | |||
| LED Quantity | 48 pcs | 48 pcs | 48 pcs | 48 pcs | 48 pcs | |||
| Luminous Efficacy | 150 Im/W | 140 Im/W | ||||||
| LED | 5050 | |||||||
| Module Quantity | 1 module | |||||||
| Power | 120W | 150W | 180W | 200W | 240W | |||
| Luminous flux | 16800±5%Im | 21000±5%Im | 25200±5%Im | 28000±5%Im | 33600±5%Im | |||
| LED quantity | 48 pcs | 96 pcs | 96 pcs | 96 pcs | 96 pcs | |||
| Luminous Efficacy | 140 Im/W | 140 ImN | ||||||
| LED | 5050 | 5050 | ||||||
| Module quantity | 1 module | 2 modules | ||||||
| Power | 270W | 300W | 350W | 400W | 450W | |||
| Luminous flux | 37800±5%Im | 42000±5%Im | 49000±5%Im | 56000±5%Im | 63000±5%Im | |||
| LED quantity | 144 pcs | 144 pcs | 192 pcs | 192 pcs | 192 pcs | |||
| Luminous Efficacy | 140 Im/W | 140 ImW | ||||||
| LED | 5050 | 5050 | ||||||
| Module Quantity | 3 modules | 4 modules | ||||||
| color | Warm White | Natural White | Cold white | Cold white | ||||
| color temperature | 3000±300K | 4000±300K | 5000±300K | 5700±300K | ||||
| color rendering index | 70 | |||||||
| Beam angle | 85°x155°;102°x155°;125°x148°;23°×105° | |||||||
| Main material | Alloy aluminum,optical PC,stainless steel | |||||||
| Service life | >80000h | |||||||
| Storage temperature | -30ºC~+60ºC | |||||||
| Operating temperature | -30°ºC~+50ºC | |||||||
| input frequency | 47~63HZ | |||||||
| nput voltage | -100~240V AC | |||||||
The MF Tunnel Light T9 series is the ideal choice for applications that demand extensive and premium lighting solutions, including tunnels, underground parking garages, urban overpasses, and highways. Boasting superior luminous efficiency, an extended lifespan, an IP67 rating for robust protection, and a modular build, this series ensures steadfast and dependable illumination tailored to diverse environments. Its versatile design and user-friendly installation further streamline project execution. Engineered to excel in challenging settings, the T9 series is especially adept at enhancing tunnel, overpass, and highway lighting, delivering consistent illumination that enhances traffic safety and efficiency.

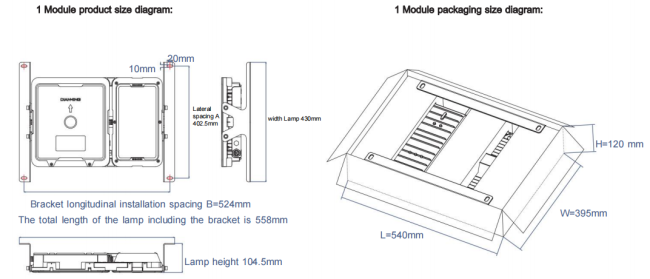

| Model | Power | Module Qty |
PACKING(LxWxH) | B | EPA | Weight | Packaging size (Ix wxh) |
|
| MFTL-T9-040 | 40W | 1pc | 558*430*104.5 | 402.5mm | 524mm | 0.2399m² | 8.92kg | 540*395*120(mm) |
| MFTL-T9-050 | 50W | 8.92kg | ||||||
| MFTL-T9-060 | 60W | 9.03kg | ||||||
| MFTL-T9-080 | 80W | 9.03kg | ||||||
| MFTL-T9-100 | 100W | 9.03kg | ||||||
| MFTL-T9-120 | 120W | 9.16kg | ||||||
| MFTL-T9-150 | 150W | 2pcs | 748*430*104.5 | 402.5mm | 714mm | 0.3216m² | 11.30kg | 730*395*120(mm) |
| MFTL-T9-180 | 180W | 11.34kg | ||||||
| MFTL-T9-200 | 200W | 11.34kg | ||||||
| MFTL-T9-240 | 240W | 11.51kg |
Q1: What products do you offer?
A: We offer a wide range of products, including LED Indoor light and LED Outdoor light.
Q2: Do you offer customization services?
A: Yes, we offer customization services for many of our products.
Q3: What are your payment terms?
A: Our payment terms are typically 30% deposit and 70% balance before shipment,depends on product.
Q4: What is your lead time?
A: Our lead time varies depending on the product and order quantity.
Q5: What is your quality control process?
A: We have a strict quality control process in place to ensure that every product meets our high-quality standards.
after-sales issues
- We offer a free 5-year warranty from the date of purchase, which covers any defects in materials and workmanship. This warranty does not cover damage caused by mishandling or improper use, such as failure and damage caused by unpacking the product, or failure caused by falling and touching during handling and use.
- It is important that the product is operated in accordance with the instructions provided to prevent any failure that may occur due to improper use. Therefore, any failure caused by the failure to operate the product in accordance with the instructions is not covered by the warranty.
- After the warranty period, we offer maintenance services at the cost of materials only for any parts that may need to be replaced. However, any additional labor costs incurred during the maintenance process will not be covered by the warranty.
- We are committed to providing exceptional customer service and support, and our team is available to answer any questions or concerns you may have regarding the product warranty or maintenance process.
- We believe that our warranty policy demonstrates our commitment to providing high-quality products and ensuring customer satisfaction. With our warranty, you can be confident in the quality and reliability of our product.
