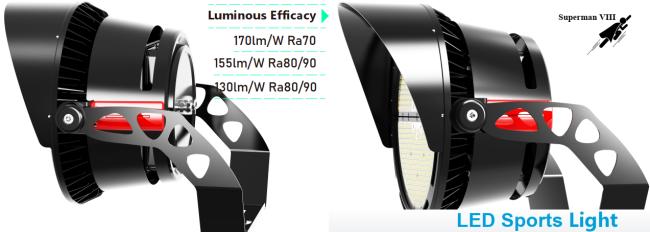

300W 6 Years Warranty Stadium LED Sports Flood Light 155LM/W 3000K/4000K/5000K/6500K For Tower Crane

300W 6 Years Warranty Stadium LED Sports Flood Light 155LM/W 3000K/4000K/5000K/6500K For Tower Crane

Key Features:
· Multiple CCT options:3000K, 4000K, 5000K, 5700K, 6500K.
· High color rendering index: >90/>80/>70
· Wide input voltage range: 100-277V/277-480V
· High power factor: 0.95
· Low total harmonic distortion: <15%
· Durable ADC12 Aluminum alloy construction
· Wide operating temperature range: -40°C TO +50°C
· Excellent IP66 rating for dust and water resistance
· Dimming control options: 0-10V, 1-10V, DMX, DALI
· Long lifespan exceeding 50000 hours
· Different beam angle options: 30D, 60D, 90D, 15D
· Compliance with CE, CB, ROHS, IP66, IK10 standard.
· Comes in different wattages: 300W, 400W, 480W, 600W, 960W, 1200W
· Interchangeable lenses for customized ligt distribution.

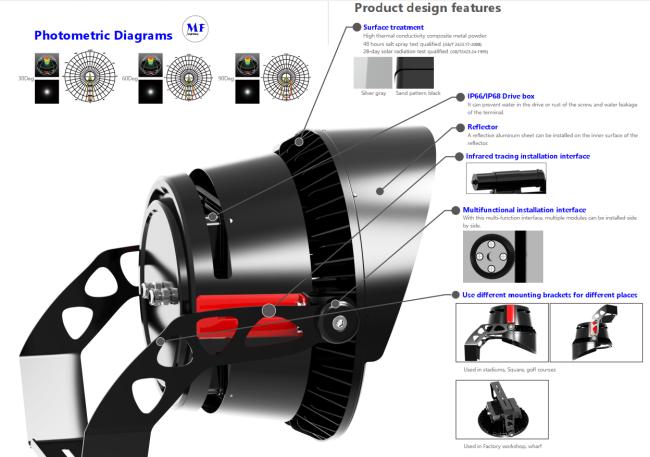

· Optimal thermal management for efficient performance.
· Suitable for various applications including stadium, squares, golf courses, workshops,and wharfs.
· Lighting protection features: 10KV to 20KV

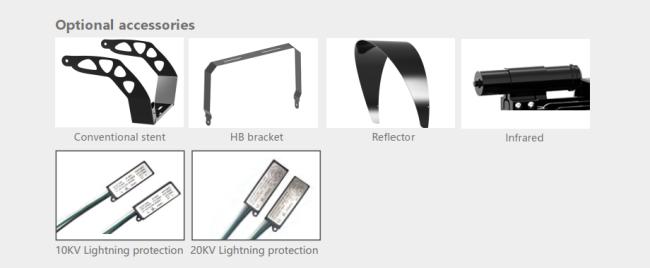

· Optional accessories for tailored installations.

Specifications:

Power

300W

400W

480W

600W

960W

1200W

Lumen output

39000LM

46500LM

52000LM

62000LM

64200LM

74400LM

78000LM

93000LM

124800LM

148800LM

156000LM

186000LM

CCT

3000K, 4000K, 5000K, 5700K, 6500K

CRI

70+/80+/90+

Export Carton Size

670*500*290mm 11kg

670*500*290mm 12kg

750*580*380mm 23kg

750*580*380mm 24kg

750*580*380mm 25kg

875*705*385mm 29kg

Dimensions(mm)

435*400*480

435*400*480

515*478*571

515*478*571

515*478*571

630*601*690

Input Voltage

AC100-277V/277-480V

Power Factor

>0.95

THD

<15%

Fixture Material

ADC12 Aluminum alloy

Operating temperature

-40°C to +55°C

IP Rating

IP66

Dimming Control (optional)

0-10V 1-10V DALI DMX

Lifespan

>50,000Hrs

Light Distribution Options

30D 60D 90D 15D

Certification

CE CB ROHS IP66 IK10

Order Part No	Power	Input Voltage	Luminous Flux(lm)	CRI	Viewing Angle
MF-SP04A-H2835 -0942-66	300W	AC100~277 50~60Hz	39000lm(130lm/w)	80+	30°/60°/90°
MF-SP04A-H2835 -0952-66	400W	AC100~277 50~60Hz	52000lm(130lm/w)	80+	30°/60°/90°
MF-SP04A-H2835 -1272-66	480W	AC100~277 50~60Hz	62400lm(130lm/w)	80+	30°/60°/90°
MF-SP04A-H2835 -1372-66	600W	AC100~277 50~60Hz	78000lm(130lm/w)	80+	30°/60°/90°
MF-SP04A-H2835 -1472-66	960W	AC100~277 50~60Hz	12480lm(130lm/w)	80+	30°/60°/90°
MF-SP04A-H2835 -1848-66	1200W	AC100~277 50~60Hz	12600lm(130lm/w)	80+	30°/60°/90°
MF-SP04C-H3030 -0466-66	300W	AC100~277 50~60Hz	46500lm(155lm/w)	80+	30°/60°/90°/15°
MF-SP04C-H3030 -0476-66	400W	AC100~277 50~60Hz	62000lm(155lm/w)	80+	30°/60°/90°/15°
MF-SP04C-H3030 -0716-66	480W	AC100~277 50~60Hz	93000lm(155lm/w)	80+	30°/60°/90°/15°
MF-SP04C-H3030 -0726-66	600W	AC100~277 50~60Hz	186000lm(155lm/w)	80+	30°/60°/90°/15°
MF-SP04C-H3030 -0736-66	960W	AC100~277 50~60Hz	148800lm(155lm/w)	80+	30°/60°/90°/15°
MF-SP04C-H3030 -0924-66	1200W	AC100~277 50~60Hz	186000lm(155lm/w)	80+	30°/60°/90°/15°

Optional Installation

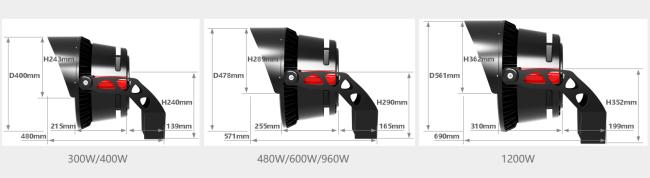

Dimension

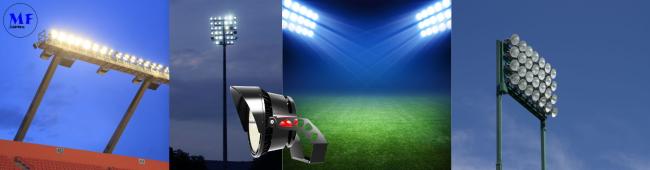

Application:

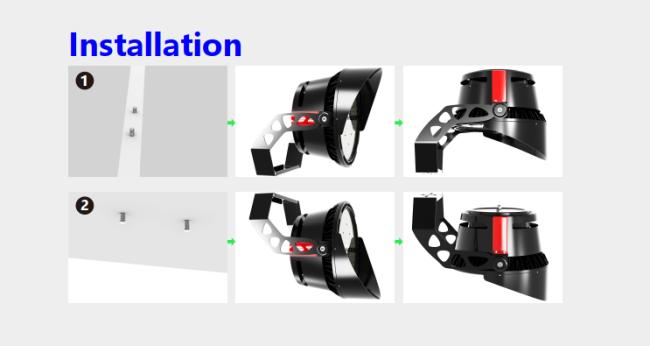

Installation

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
