Driver Emergency Power Supply Ballast Battery Kit Light Backup 3A IP65 10W 15W Black White
Price:
USD30.2~52/PCS
MOQ:
1
Delivery Time:
7~21
Brand:
MF
Product Description
| Product Characteristics | |||||||||||||

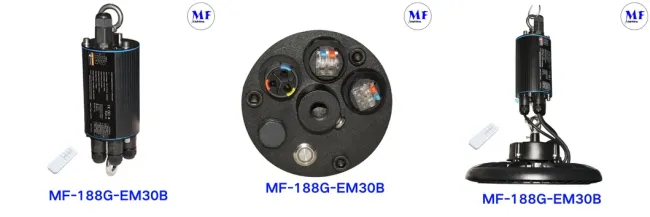

| Model No. | MF-188G-EM30B |
| Power | 10~20W |
| Frequency Range | 50Hz--60Hz |
| Size | 200*88*88mm, 275*88*88mm |
| Discharge Time | 3h |
| Material | LiFeP04, Li-ion, Lithium, Nickel-Cadmlum, Sealed Lead-Acid, Optional |
| Waterproof Rating | IP65 |
| Input | AC100~277V |
| Output | DC 220~240V |
| Certificates | CE, ROHS, CB,MSDS, etc. |
| Output Current | ≤ 3A |
| Applicable for The Types of Lamps | Industrial and mining lamps, etc. |
| Driver Standard | EU Standard |
self-detect:
constant power emergency output,
Suits for LED fitting with external LED driver,
Built-in battery:Li-Fep04
With multi-protection function;
battery overcharge prote ction;
battery over-discharge protection;
output overload prote ction;
short-circuit protection.

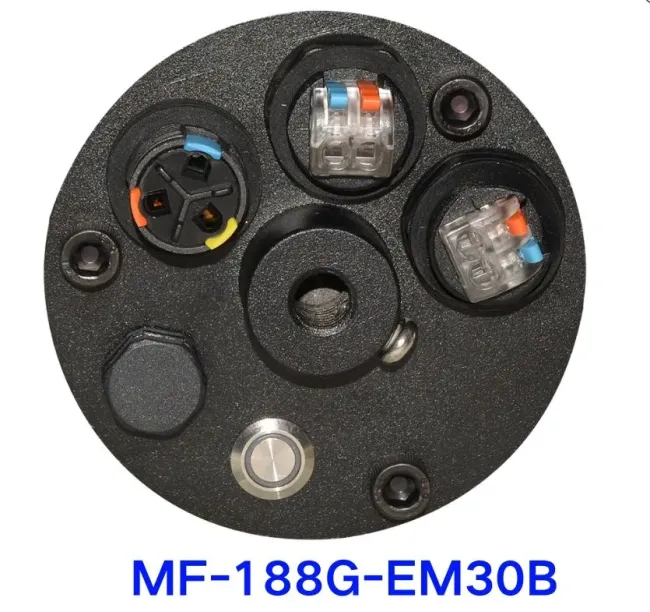

Accessories: integrated waterproof
button and indicator light, remote control
In the state of the power off,to connect with the battery, static current at the battery terminal is OuA
constant power emergency output,
Suits for LED fitting with external LED driver,
Built-in battery:Li-Fep04
With multi-protection function;
battery overcharge prote ction;
battery over-discharge protection;
output overload prote ction;
short-circuit protection.
Accessories: integrated waterproof
button and indicator light, remote control
In the state of the power off,to connect with the battery, static current at the battery terminal is OuA

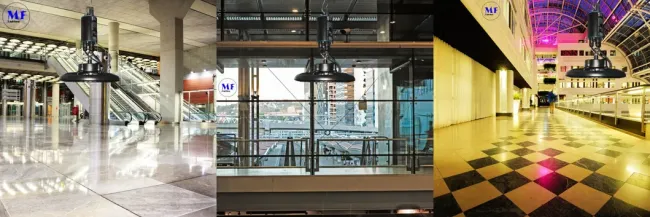

| Applications | |||||||||||||
This power supply is mainly used for emergency lighting fixtures.
But our this series of power supplies also can be used in various types of lamps, such as flat panel lights, panel lights, Tri- proof lights,
Can be use in indoor and outdoor hanging lights, such as industrial and mining lamps etc., whose external drive output current is ≤3A.

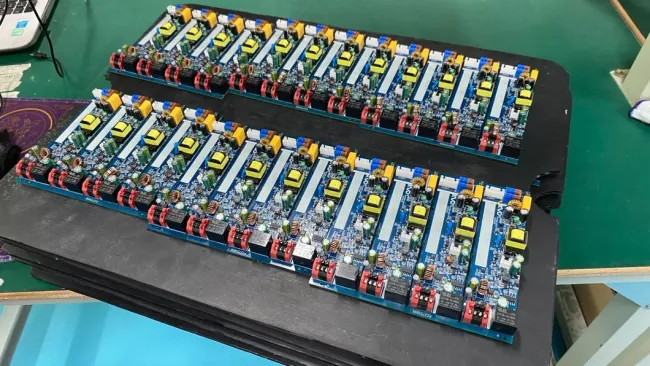

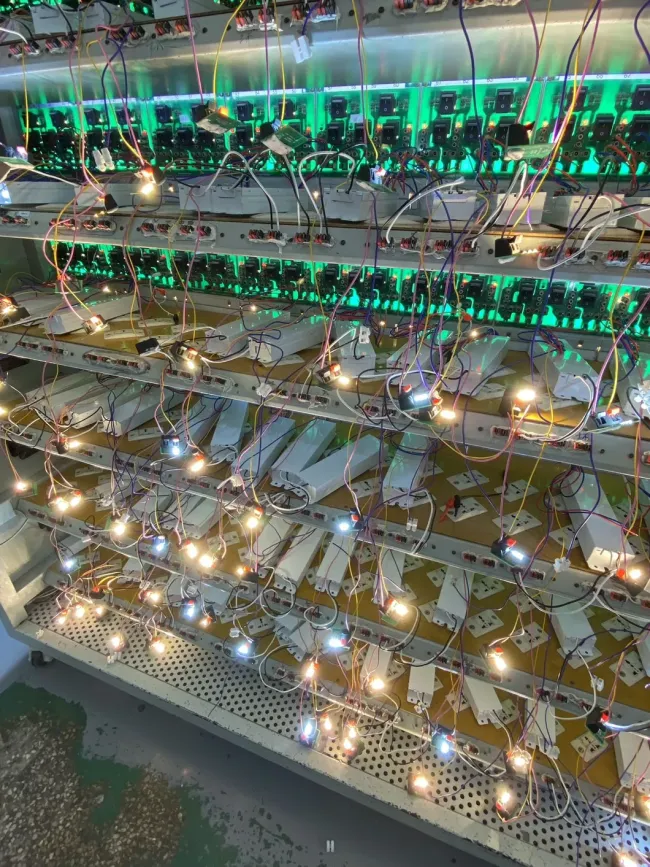

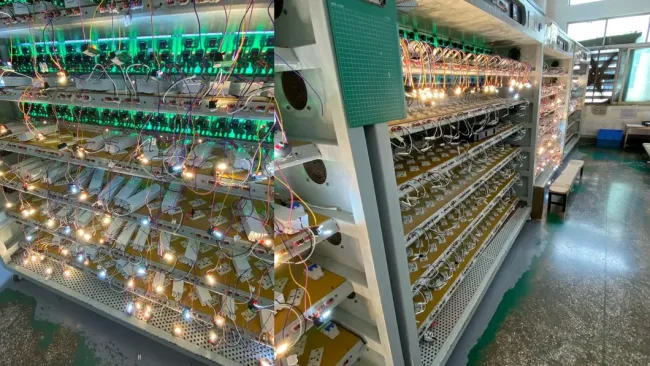

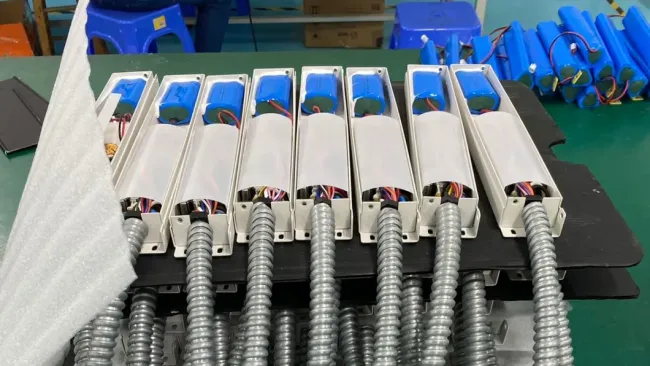

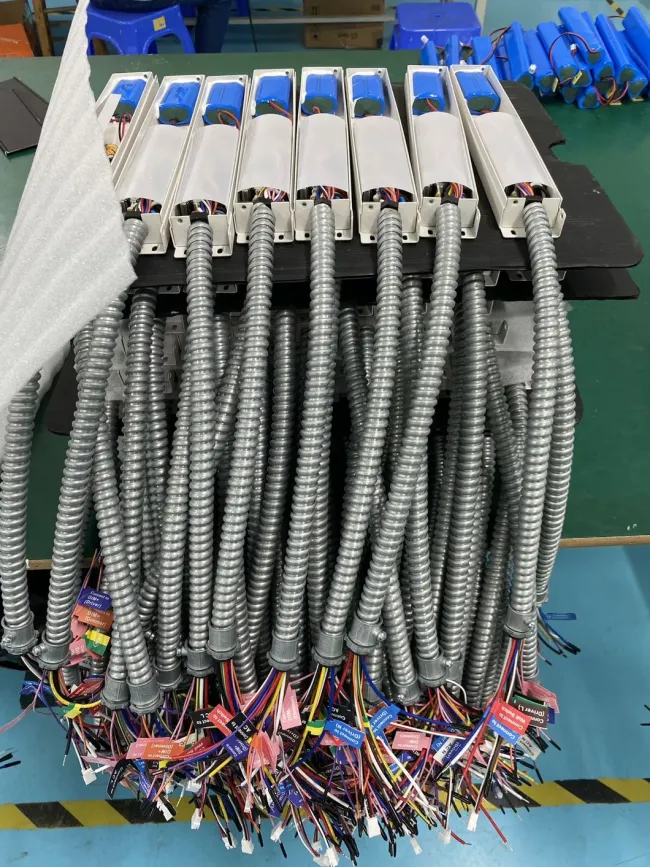

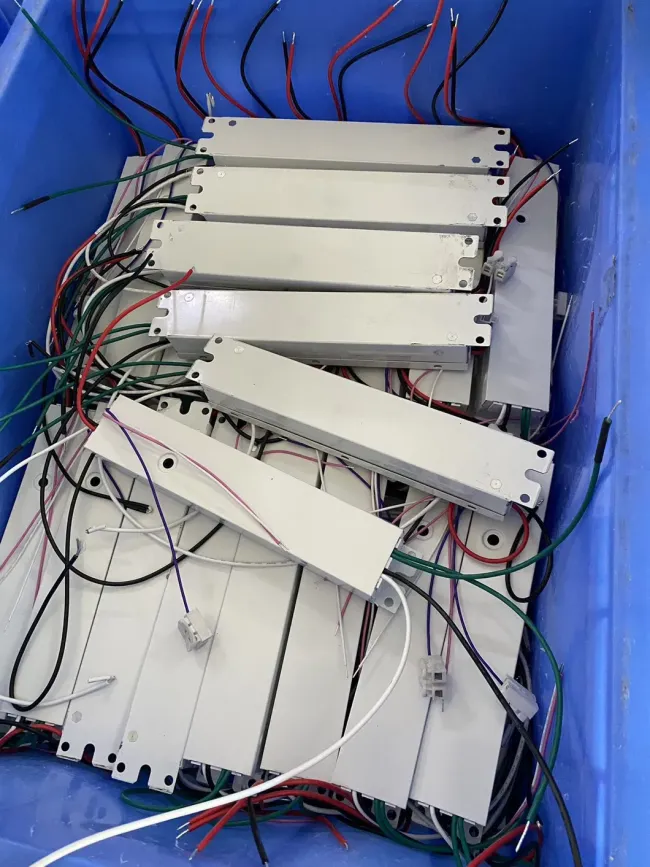

| Production Line | |||||||||||||

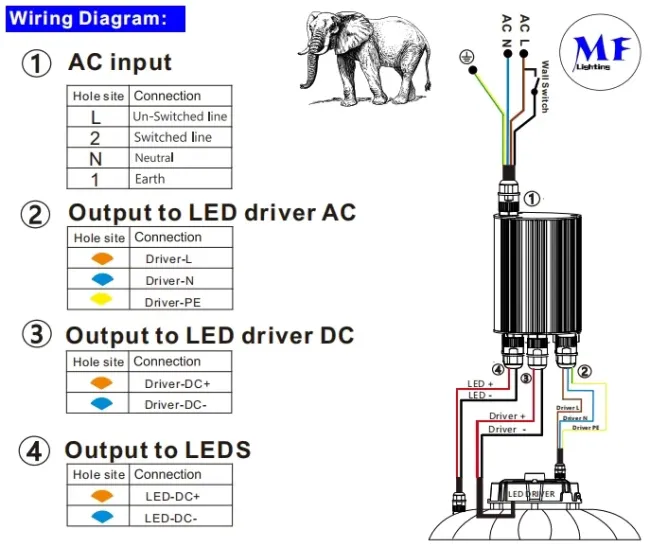

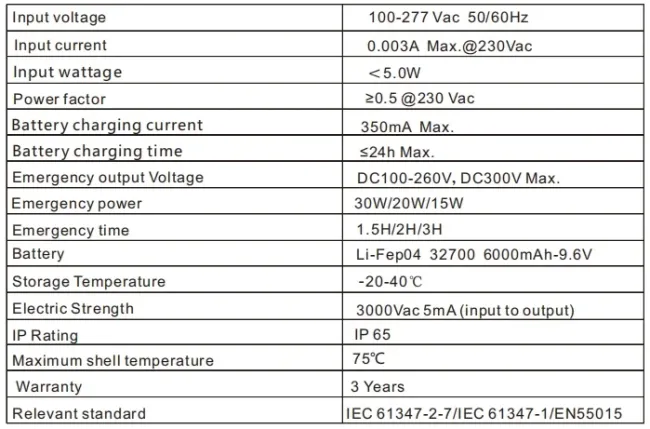

| Specifications: | |||||||||||||

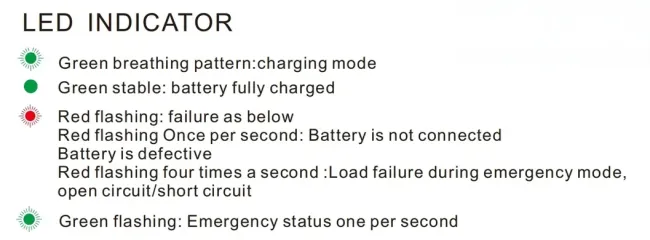

| LED and Test Button Status | |||||||||||||
TEST BUTTON:
1: 0S<Key ON ≤1S,Enter a simulated state of emergency,the green indicator blinks once every second,
2: 0S<Key OFF ≤1S,In simulated state emergency situation, return to the nomal charging state,
3: 0S<Key ≤1S,In the emergency state, the emergency state is turned off.
SELF-TEST:
when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.
when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.
| Attention Indication | |||||||||||||
Installation and Notifications:
1: If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.
1: If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.
| Tailor Products for U Market | |||||||||||||
| Q1: If you feel that this product is higher than your market demand, resulting in you selling this product without any profit at all??? A1: Then please contact us as soon as possible, our professional team will order more suitable products for you! Q2: If you need higher performance products to meet your needs??? A2: Then please contact us as soon as possible, we will order the most suitable products for you in the shortest time! A3: If you want a totally different design of outter shape??? Q3: No Problem! Calling us, we customize a private Light for U! Q4: Can I print my logo on the led light? A4: Yes, we provite OEM service to our customers. We can help to make the label and color box according to our reqirements. Q5: What if I receive defective products? A5: The defective rate of our lights is less than 0.2% according to our shipment records. If there is any defect during the warranty period, please call for us and provide us the evidents of the defective one in working situations, and we will ship new lights to you witnin a few days or together with your next order. Q6: Do you have own factory? A6: Yes, we specialize in research and development for LED Lights over 14 years, as well as manufacturer, and operate based on iso quality management since 2009. Q7: Can I order several samples testing by myself? A7:Yes, we welcome sample orders to test and check the quality of our products. Mixed sample can be acceptable. |
