30W DLC LED Roadway Lights with 0-90° adjustable bracket, Dia-casting Aluminium
30W IP66 LED Roadway Lights with 0-90° adjustable bracket, Dia-casting Aluminium
Description:
Module LED Roadway lights embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.
The Module led street lights source use 120M/W SAMSUNG/ , the luminaire reach 110LM/W, High efficiency driver system from Meanwell, Power box free tool to open, easy installation and maintenance, photocell function for optional, adjustable juction available, DLC, CE, GS ,Rohs certificated, provide 5 years warranty. Wildly use for Free way, Main road, Secondary main road and so on.
Specifications:
Item | MF-ST030 |
Input voltage | 85-265Vac 50Hz/60Hz |
LED Power | 30W |
Rated Power | 30±3W |
Delivered Flux(Tj80°c) | 3000lm |
IP Rating | IP66 |
LED QTY | 24 pcs |
Color temperature | 3000K-6500K |
LED Chip | SAMSUN/ |
LED Driver | Meanwell |
Color Rendering Index | Ra>75 |
Power Factor | >0.9 |
Lifespan | ≥50,000hrs |
Operation Environment | Temperature:-40°C~50°C/Humidity:10%~95% |
Material | Aluminum Alloy |
Product Size(mm) | 410(L)*298(W)*79(H) |
Net Weight | 4.3Kg |
Certificate | CE/RoHS/DLC |
Warranty Period | 5 years |
Competitive Advantage:
1. Modular design, the light efficient reach 110lm/W
2. The light source use 120M/W SAMSUNG/ , the luminaire reach 110LM/W
3. Non-image optics system, improves lumen output ratio
4. High efficiency driver system from Meanwell
5. Power box free tool to open, easy installation and maintenance
6. Elegant appearance, open air ventilation design, good heat dissipation function
7. “Tool free” locking design to open and close the driver compartment simply, easy installation and maintenance
8. Photocell and 0-90degree ajustable bracket available.

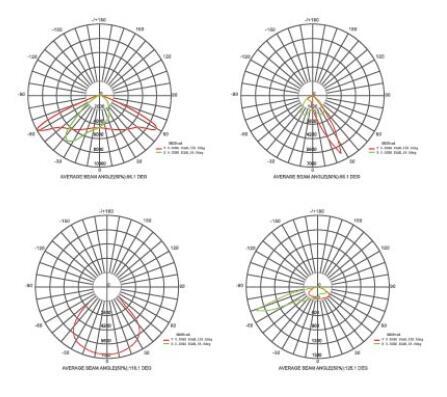

Light Discurve:

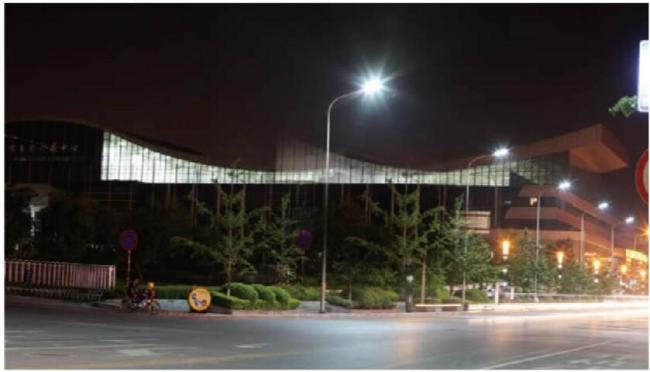

Applications:
Wildly use for Free way, Main road, Secondary main road and so on.
