130LM/W LED Parking Lot Lighting IP66 80Watt For Car Parking shoe box lighting

 PF> 0.98 130LM/W LED Parking Lot Lighting IP66 80Watt For Exterior Car Parking

 Description:

Our this module design led parking lot lighting is allocated with top grade led chip of Cree XTE /SAMSUNG 351B and HLG series Meanwell driver, the whole lamp efficiency can up to 130lm/w, PF> 0.98,  which guarentees a working lifetime over 100,000h hours and a warranty of 5 years.

this parking lights with IP65 waterproof, 90°, 120°, 90*120°, 85*135° different beam angle, Grey/ Black/Silver body color for choose, Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.6 different kinds of bracket avaiable for pole, wall...etc installation.



Specifications:



Competitive Advantage:

1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP65.

4. Beam Angle: 90°, 120°, 90*120°, 85*135°.

5. Warranty: Five years.

6. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.

7. Body color : Grey/ Black/Silver.

8. 6 different kinds of bracket avaiable for pole, wall...etc installation.

9. Built-in Meanwell driver, meet IEC standard.

10. Hollow out heat sink design make the lamp lighter and good heat dissipation

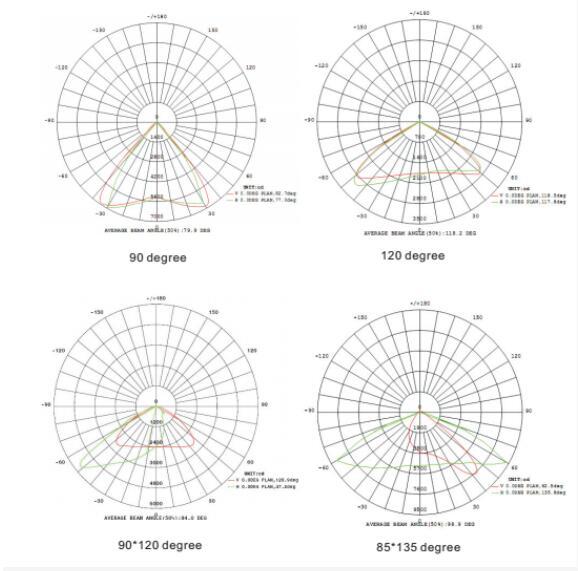

Light Distribution Curve:

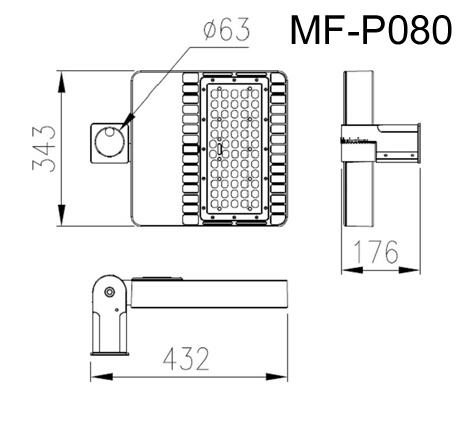

Dimension:

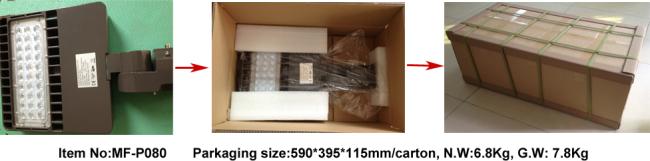

Packaging:
