72W 60 X 120CM 7200LM 100LM / W Dimmable High CRI Long Lifespan LED Flant Panel Light
72W 600*1200MM 7200LM 100LM/W Dimmable High CRI Long Lifespan LED Flant Panel Light
Quick Detail:
- 72W LED Panel Light
- Input: AC 100-240V, 50/60Hz
- Luminous Flux: 7200Lm
- CRI: >80 RA
- Beam Angle: 1200
- Life-span: ≧35000Hrs
Description:
As a professional LED panel light manufacturer, MingFeng are specializing in providing high quality LED panel light for customers.
The 72W LED panel light , using the newest LED technology, is a new LED indoor lighting product developed by MingFeng. With special art design, we use thickness aluminum housing,this make our prouduct 30% heavier than common product and get a better heat dissipation.Back cover with our product is duct proof, can avoid light leak as well so we can get a high light effective rate:99%. MingFeng led light bulb has a long lifespan more than 35,000 hours.
Specifications:
|
Optical
|
Light Source | SMD4014 |
| CCT | 3000K/4000K/5000K | |
| CRI | >80Ra | |
| Beam Angle | 120° | |
| SDCM | <5 | |
| Lifespan | ≧50,000Hrs | |
|
Electrical
|
Power Input/frequency | 220-240Vac,50/60Hz |
| Dimmable | Yes, Traic Dimming | |
| Power Factor(PF) | >0.9 | |
| Start Time | 0.5S | |
|
Mechanical
|
Material | AL Frame+ Pmma LGP+ PS Diffuser |
| IP Rating | IP40 | |
| Others | Working Temperature & Humidity | -25~50℃,10%~90%R.H |
| Storage temperature & Humidity | -40~85℃,40%~80%R.H | |
| Cerlificate | GS,TUV,CE,RoHS,CB,S |
Product Features:
1. Alu body: Excellent design, 30% heavier than common product, better heat dissipation;
2. Light Guide Plate(LGP): Mitsubishi LGP, 90% light transmittance, good light distribution;
3. LED Chip: Epistar or LumenMax Chip, high lumen, high CRI, Long lifespan;
4. PCB Board: Alu PCB board, longer lifrspan and better dissipation than FPC PCB;
5. LED Driver: Unique design, Constant IC driver, Stable, Long lifespan.

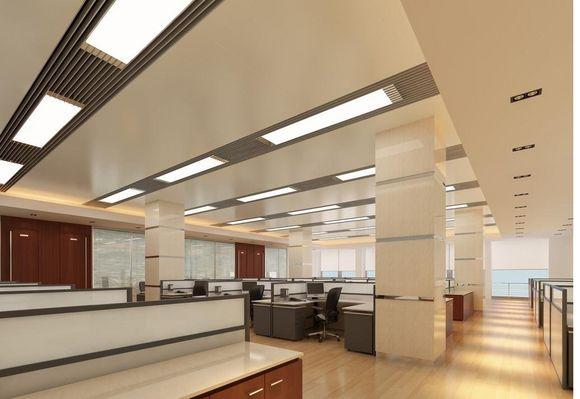

Applications:
Commercial, Decorative, Residential Sales areas, shop windows, office and corridors museums, office, exhibitions and galleries reception rooms, kitchens and living areas.

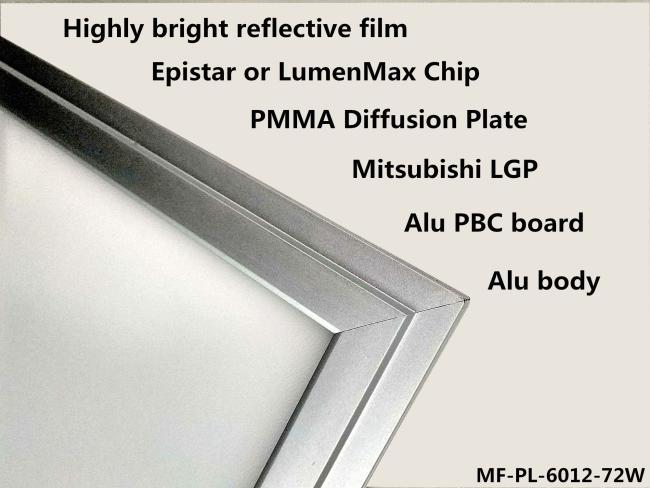

Detail:
Excellent design, thickness Alu body,better heat dissipation.
Epistar or LunmenMax Chip, high lumen, high CRI, Long lifespan.
Alu PCB board, longer lifespan and better dissipantion than FPC PCB.
MIT SUBISHI PMMA Plate, high light transmittance, light is more soft and no glare.
Mitsubishi LGP, 90% Light Transmittance, Good light distribution.
Highly bright reflective film.
Duct proof, avoid light leak, the light effective rate:99% waterproof standard:IP 40.
Package:
2pcs/inner packing, 6pcs/outer packing.
