Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Quick Detail:
- 1W / 3W Mini Dimmable LED Down Light
- Input: 12-24Vdc, 12Vac
- Luminous Flux:95-240lm
- CRI: >80
- Beam Angle: 30°,60°,120°
- LED chip: Bridgelux 45mil
- IP: 67
- Dimmable: Yes
Description:
Ming Feng lighting co.,ltd 2015 IP67 Mini Dimmable LED down light main body color are silver sand, white, black.
Color options 2700K, 3000K, 4000K, 6000K. Waterproof as the led down light / led spot light special for outdoor application.
The Mini dimmalbe led down light could both one piece package and series package. like six, even more than ten pieces together package. For series package version, they must be used for series connection.
Specifications:
|
Model No: |
MF-3W12V |
|
Input voltage |
12-24Vdc, 12Vac |
|
Power(watt) |
1W / 3W |
|
Dimension |
D35*49mm |
|
Color temperature |
WW(2700-3000K) ,PW(4000-4500K) ,CW(5500-6500K), Red, Green, Blue |
|
LED Chip |
Bridgelux 45mil |
|
PF |
>0.92 |
|
Luminous Flux (lm) |
95-240lm |
|
CRI(Ra) |
≥80 |
|
Lifespan |
≥35000hrs |
|
Beam Angle |
30°,60°,120° |
|
Material |
Aluminum Alloy |
|
Operating Temperature |
-200C ~450C |
|
Dimmable |
Y |
|
IP |
67 |
|
Dimension Package |
10×5.3×5.3cm/pcs |
| Carton Size | 26×24×20cm/24pcs |
|
Weight Package |
8KG |
|
Certificate |
CE/RoHS |
|
Warranty Period |
3 years |
Competitive Advantage:
- High output Bridgelux 45mil LED chips ,stable performance and patented product.
- Beam angle 30 degree / 60 degree / 120 degree options,
- The lamp body is small, flexible application.
- Choose white, red, blue, golden Light, Purple.
- IP67 degree of protection.
- 6063 pure aluminum as heatsink material, Excellent heat dissipation performance which brings the light real long life.
- High power factor>0.92.
- 3 years guarantee
Dimension:

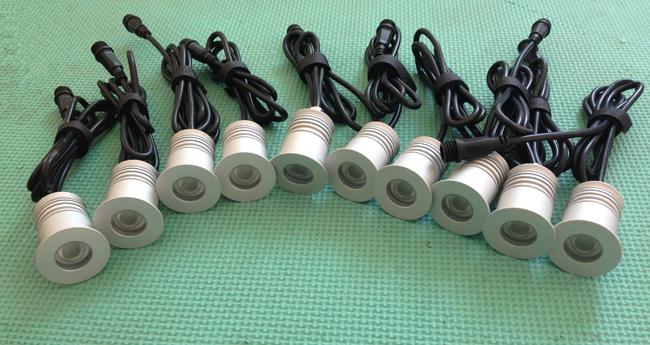

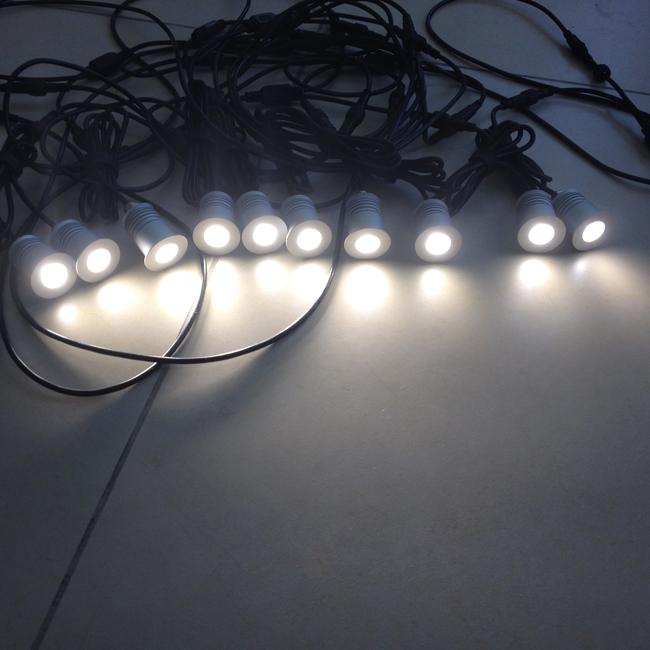

Product Picture:

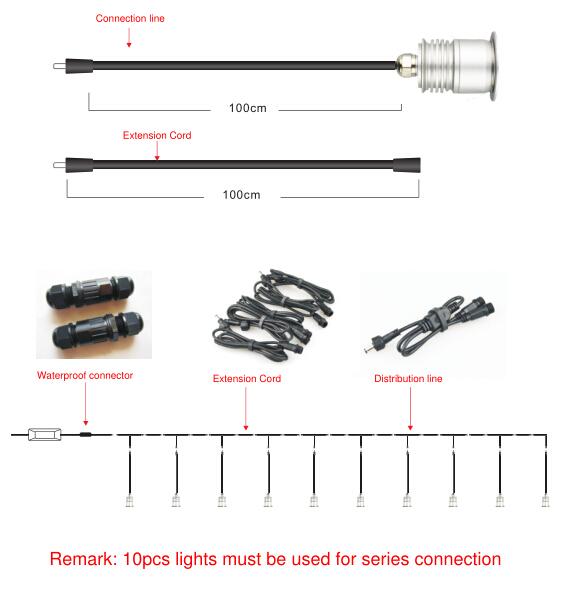

Connection Diagram:

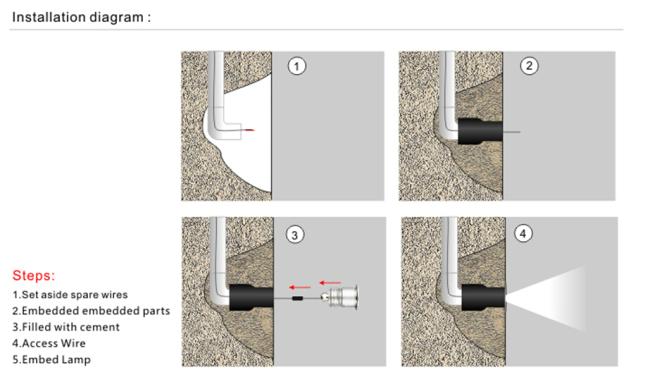

Installation Diagram:
Packing:

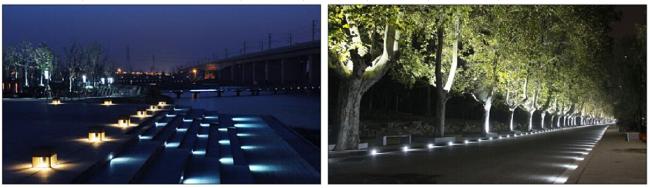

Applications:
Widely used in Roads, Squares, Walkways, Gardens, Swimming pools, Bridges, and other outdoor venues... etc
