90 - 305Vac IP67 Waterproof Led Flood Lights Sliver / Black / Grey Shall Cover
90 - 305Vac IP67 Waterproof Led Flood Lights, Sliver / Black/Grey shall cover
Description:
Ming Feng Lighting Co.,Ltd IP67 High power led flood light use USA CREE LED, Customized higher
efficiency 130-165lm/w are available.Biggest cooling area. Japan calculusoptical lens improve the utilization of led fllood light chips effictively. Unit-design approach improve the luminous area of led floodlight greatly.
This product perfectly supports 0-10V dimming signal, comes with a signal input lineand output line, make wiring quick and easy. saving installation costs. remote control via remote control, you can wirelessly control the LED stadium floodlight brightness from 10%-100% be adjusted effective energy savings. One controller can simultaneously control multiple sets of led floodlight. And remote support four-channel, can control four independent controllers, multiple led stadium floodlight.
Ming feng LED Flood Light widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, roads, high-rise buildings, light towers, parking lot, tunnels, high mast lighting and etc.
Specifications:
|
Item |
MF-FL-300W |
|
Input voltage |
90-305Vac 50Hz/60Hz |
|
LED Power |
300W |
|
System Consumption |
300±10W |
|
Delivered Flux |
40300-46500lm |
|
IP Rating |
IP67 |
|
Beam Angle |
10°, 24°, 38°, 60°, 90° , 120° |
|
Color temperature |
3000K / 4000K / 5000K / 6500K |
|
LED Chip |
CREE |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
Ra>80 |
|
Power Factor |
≧0.95 |
| Color of Housing | Silver / Gery / Black |
|
Lifespan |
100,000hrs |
|
Operation Environment |
Temperature:-40°C~65°C/Humidity:10%~90% |
| Storge Temperature | -40°C~50°C(Best 25°C) |
|
Material |
Anti-corrosion Die Cast Aluminum Alloy |
|
Product Size(mm) |
520*456*104mm |
|
Net Weight |
15.0Kg |
|
Certificate |
CE/RoHS/TUV/GS/SAA/FCC/DLC/ETL |
|
Warranty Period |
5 years |
Competitive Advantage:
1.Customized USA Packaged CREE LED, 130-150lm/w, CRI up to Ra80-95. Junction temperature <70°C. More stable than other LEDs.
2.TaiWan MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%.
3.Ultra-low light degradation in full compliance with the quality of the U.S.Energy Star requirements, L70>80,000hrs. Design lifespan 100,000hrs.
4.SONY cooling technology, 4D acive heat dissipation system. Unitized module design, biggest cooling area. Heat Sink Surface Temperature within 55℃.
5. Constant current and constant voltage design, much more reliable than other LED floodlights.
6. Japan secondary optical DIWL lens, light transmittance of PMMA up to 98%. 10°24°38°60°90° beam angles are available.
7. High strength structure with 6063-T5 aluminum alloy. Coated with corrosion resistant polyester powder, real anti-corrosion.
8. Multi-angle 10°, 24°, 38°, 60°, 90° , 120° for optional.
9. Intelligent dimming system, 0-10V, 1-10V, Dali, DMX512 dimming models are available

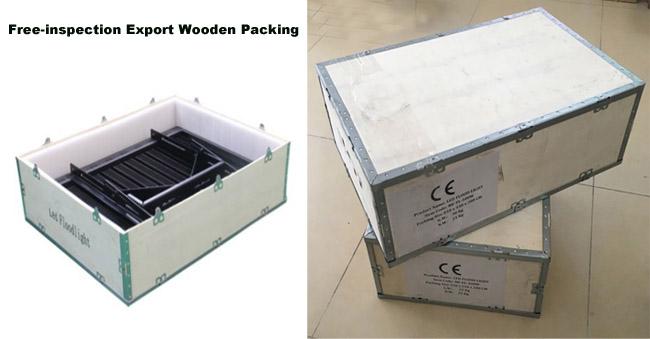

Packing:

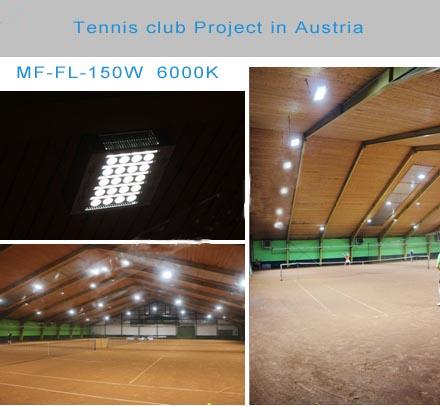

Applications:
