80W Shoebox LED Parking Lot Lighting With 130 lm Per Watt 100,000 Hrs Lifetime
80W shoebox LED Car Parking Lighting with 130lm per watt,100,000 hrs lifetime
Description:
Our this module design led parking lot lighting is allocated with top grade led chip of Cree XTE /SAMSUNG 351B and HLG series Meanwell driver, the whole lamp efficiency can up to 130lm/w, PF> 0.98, which guarentees a working lifetime over 100,000h hours and a warranty of 5 years.
this parking lights with IP65 waterproof, 90°, 120°, 90*120°, 85*135° different beam angle, Grey/ Black/Silver body color for choose, Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.6 different kinds of bracket avaiable for pole, wall...etc installation.
Competitive Advantage:
1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP65.
4. Beam Angle: 90°, 120°, 90*120°, 85*135°.
5. Warranty: Five years.
6. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.
7. Body color : Grey/ Black/Silver.
8. 6 different kinds of bracket avaiable for pole, wall...etc installation.
9. Built-in Meanwell driver, meet IEC standard.
10. Hollow out heat sink design make the lamp lighter and good heat dissipation
Specifications:
Item | MF-P080 |
Input voltage | 85-305Vac 50Hz/60Hz |
LED Power | 80W |
Rated Power | 85W |
Delivered Flux(Tj80°c) | 10400lm |
IP Rating | IP65 |
Luminous Efficiency | 130LM/W |
| LED Qty: | 36pcs |
| Pole Diameter(mm) | Dia60mm / Dia76mm |
Color temperature | 3000K / 4000K / 5000K |
LED Chip | Cree XTE/ SAMSUNG 351B |
LED Driver | Meanwell |
Color Rendering Index | 80+ |
Power Factor | >0.98 |
Lifespan | ≥100,000hrs |
Operation Environment | Temperature:-40°C~50°C / Humidity:10%~95% |
Material | Aluminum Alloy |
Product Size(mm) | 364(L)*275(W)*176(H) |
Packing Size(mm) | 400(L)*395(W)*115(H)/pcs |
Weight | N.W:4.5Kg G.W:6.0kg |
Certificate | CE/RoHS/TUV/FCC/DLC |
Warranty Period | 5 years |
Packaing and Terms:
1.Payment terms:30% of all value paid by T/T as deposit, the balance paid before loading
2.Leadtime:7 working days for samples ; 15-20working days for container order.
3.Packaging:Standard exporting package, also can be customized according to your requirements for Logo,Brand,etc.
4.By UPS/DHL/FEDEX/TNT:It takes 3- 5 days to arrive the destination
5.Air cargo: It takes about one week to arrive the destination
6.Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements

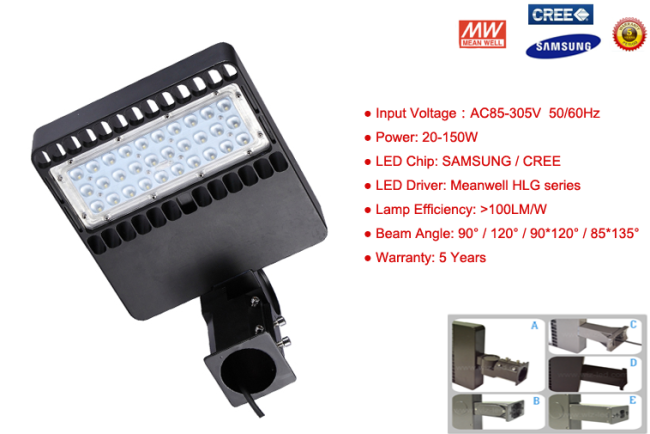

80W Shoebox led parking Light show:

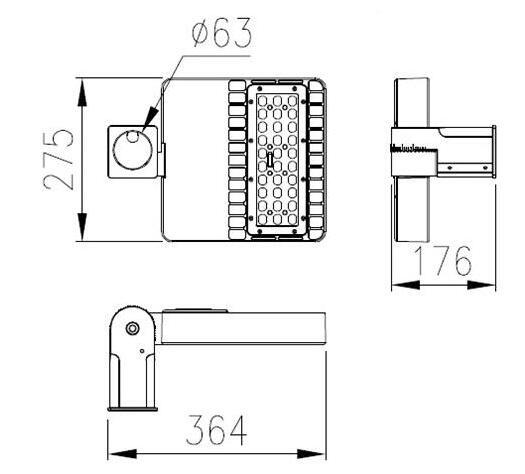

Dimension:
Application:
