100W LED Highbay light, 60/90/120deg Lens angle for Industrial and commercial lighting
100W LED Highbay light, 60/90/120deg Lens angle for Industrial and commercial lighting
Description:
Ming Feng Lighting Co., Ltd developed UFO IP65 LED LED high bay light, With different beam angle lens as 60°/90°/ 120° apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required. With 6060 Die-casting aluminum alloy materials radiator, with air duct design principle of both inside and outside ventilation, and better heat dissipation performancde. Varities of Joint, include ring, sling chain, U shapre bracket installation type. Unique design for Meanwell driver, to keep low temperature when operating. Beautiful appearance, chip is 3030, own high light efficiency, can achieve 130LM / Watt.
UFO high bay light application instructions:
-compared to traditional halogen high bay, leds will be more energy saving.
- Reliable meanwell series of driver,and the driver can be 0-10v, PWM dimming.
- Installation methods: Rings, hanging chain, U shape bracket. All accessories will be provided according to customers requirements.
-Optimuminstallation height: 8-15 meters.
-Waterproof IP65.
Specifications:
|
Item |
MF-UFO-100W-5A |
|
Input voltage |
85-265Vac 50Hz/60Hz |
|
LED Power |
100W |
|
Luminaire Efficiency |
130lm/W |
|
Delivered Flux(Tj80°c) |
13000lm |
|
IP Rating |
IP65 |
|
Color temperature |
3000K/4000K/5000K |
|
LED Chip |
PHILILPS 3030 |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
>80 Ra |
|
Power Factor |
>0.97 |
|
Lifespan |
≥50,000hrs |
|
Operation Environment |
Temperature:-40°C~50°C/Humidity:10%~95% |
|
Material |
6063 Die-casting Aluminum Alloy |
|
Product Size(mm) |
Dia 280 * 185mm |
| Packing INFO | 33 * 33 * 21cm/Carton |
|
Net Weight |
3.3Kg |
| Gross Weight | 3.9Kg |
|
Certificate |
CE/RoHS |
|
Warranty Period |
5 years |
Main Features:
1. Light and small UFO structure greatly shorten the packing space and save the freight.
2. 6063 die-casting aluminum radiator, with air duct design principle of both inside and outside ventilation,and better heat dissipation performance.
3. Protection Grade: waterproof IP65
4. Use high quality PHILIPLS3030 LED AND MEANWELL LED power supply, to ensure the product reliability and life expectancy.
5. Beam angle : 60°/90°/ 120° Lens optional.
6. More cost-effective than similar productsto meet customers various needs.
7. Kinds of installed bracket for options: rings, sling chain, U shape bracket.

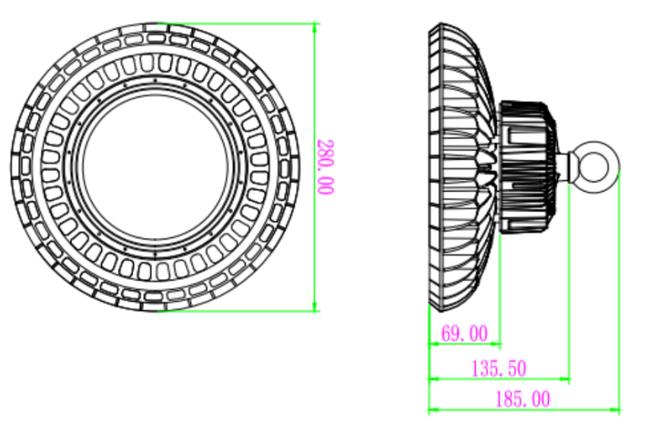

Dimensions of 100 Watt LED Highbay light(mm):

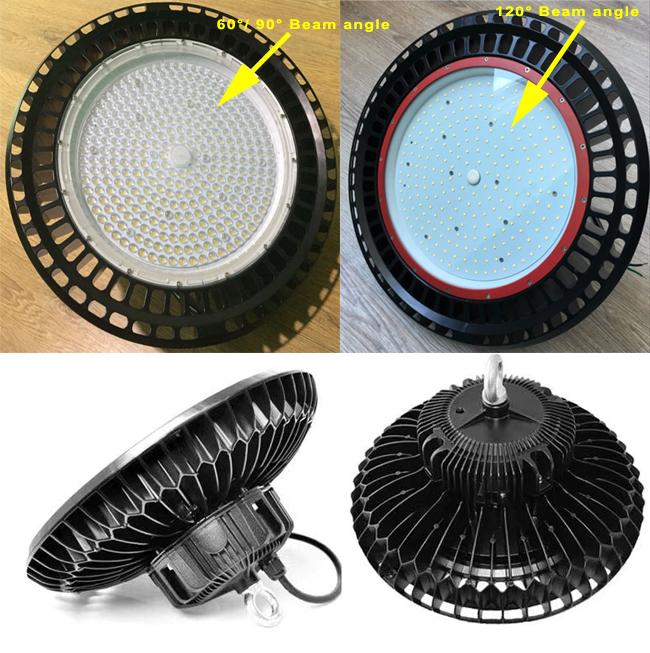

Photos show of 100 Watt LED Highbay light:
Packing INFO of 100 Watt LED Highbay light:
