900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime
900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime
900W LED sports lamp Product Features:
1. World brand chip-Lumiled and Osram as options

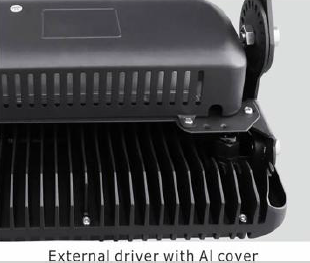

2. TaiWan MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%.Built-in Mean well drivers, make the lamp safer for operation, Intelligent dimming system, 1-10V, Dali, PWM dimming models are available, And Top class power gear covered by aluminum cover.

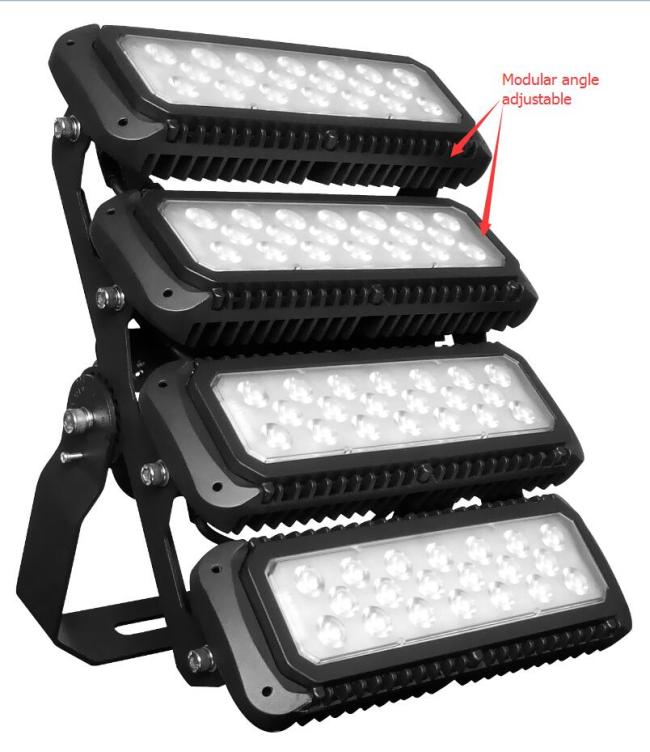

3. Module angle adjustable to project aimed lighting area accurately.

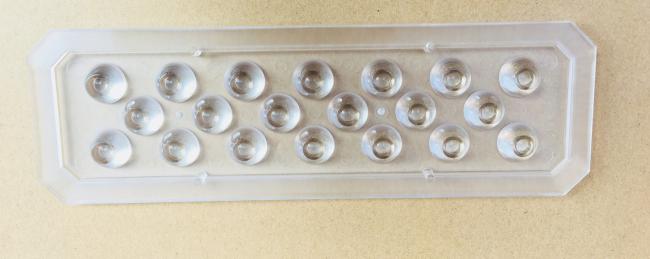

4. Japan secondary optical DIWL lens, light transmittance up to 98%.
5. L70>80,000hrs. Design lifespan 100,000hrs @ conditions.
6. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
7. 900W LED Sports light for air port lighting, mine area,auto dealership lighting,architecture lighting,industrial lighting, warehouse lighting, high mast lighting,stadium lighting,Tennis Court,Badminton hall,Hockey hall.
Specifications:
|
Item |
MF-L900W |
|
Input voltage |
85-265Vac 50Hz/60Hz |
|
LED Power |
854W |
|
System Consumption |
899W |
|
Delivered Flux |
899x130lm,899x155lm |
|
IP Rating |
IP65 |
|
Beam Angle |
25°,60°, 90° and 110° ,asymetric lens 130°x60° |
|
Color temperature |
3000K / 4000K / 5700K |
|
LED Chip |
Lumileds/Osram |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
Ra>80,70 as options |
|
Power Factor |
≧0.98 |
| Color of Housing | Black in stock, color can be customzied |
|
Lifespan |
1000,000hrs @ conditions, regular life span:50,000 hours, 9 years. |
|
Operation Environment |
Temperature:-40°C~65°C/Humidity:10%~90% |
| Storge Temperature | -40°C~50°C(@25°C) |
|
Material |
Anti-corrosion Die Cast Aluminum Alloy |
|
Product Size(mm) |
628(L)x 690(W)x 390(H) |
|
Net Weight |
29.35 Kg |
|
Certificate |
CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC |
|
Warranty Period |
5 years or 10 years @ conditions |

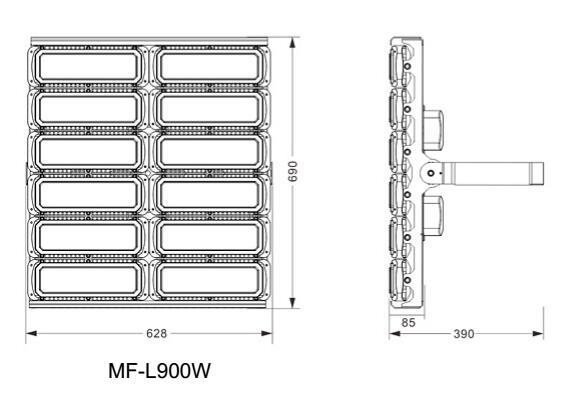

900W LED sports lamp dimension:

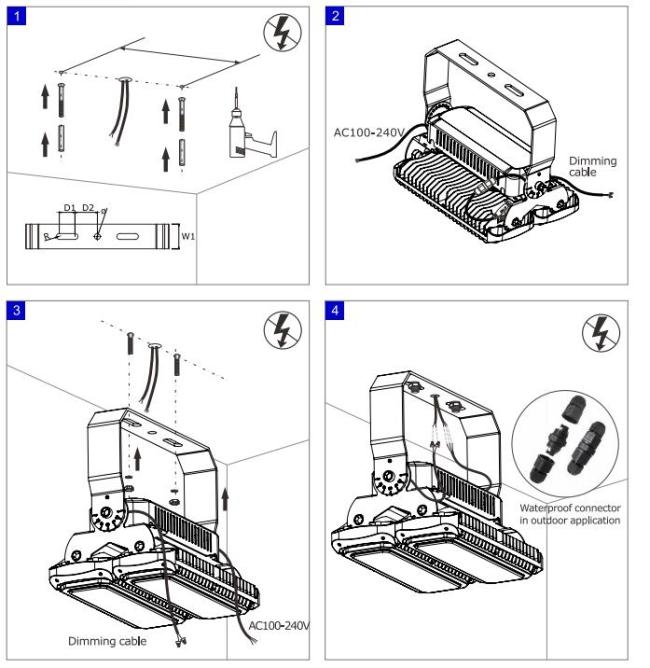

900W LED sports lamp installation:
Step1: Open the box and check your product, In case of damage contact your merchandiser.
Step2: Fasten the brackets on the wall/surface with stainless steel screws.
Step3: Adjust the floodlighttodirect the light in desired direction beforetighteningthe screws.
Step4: Be sure to connect the wires correctly. Brown-Live,Blue-Null, Yellow/Green-Grounding.
Make surepower cord was fixed for anti-pull purpose,and the connection is waterproofinoutdoor
applicaiton.
Step5: Switch the voltage on and check to see that the floodlight works properly.

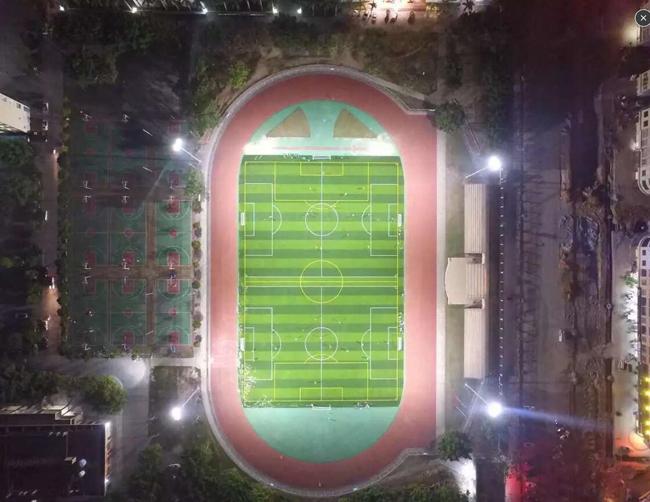

Application photos
