100W High Power LED Flood Light Outdoor 160lm/W, Varouis Mountings , IP67
100W LED contruction light for tunnels,bridges,hotels, landscapes, construction zone,disaster sight, outside building.
100W High power flood light data sheet down load:
100W High power flood light Product characteristic :
1.Top class chip brand,p Lumileds 3030 and 5050 chips acheives at 130lm/w and 160lm/w, top class driver-meanwell brand secure the life-span of the luminaire.

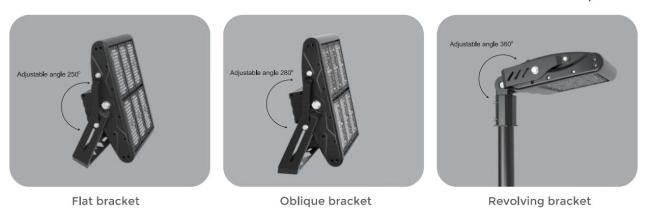

2. 3 type bracket with angle adjustable for options, heavy duty design.
3. Many options for mountings
4. lamp can be easily controlled via Zigbee, Microwave, daylight sensor, DALi, DMX512, contact with our sales engineers for more details.
Technical data:
|
Item |
MF-FL-100S |
|
Input voltage |
85-265Vac 50Hz/60Hz |
|
LED Power |
97W |
|
System Consumption |
100W |
|
Delivered Flux |
100x130lm,100x160lm |
|
IP Rating |
IP67 |
|
Beam Angle |
30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85° |
|
Color temperature |
3000K / 5000K / 6000K |
|
LED Chip |
Lumileds |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
Ra>80,70 as options |
|
Power Factor |
≧0.90 |
| Color of Housing | Black in stock, grey, white as options |
|
Lifespan |
1000,000hrs @ conditions, regular life span:50,000 hours, 9 years. |
|
Operation Environment |
Temperature:-30°C~45°C/Humidity:10%~90% |
| Storge Temperature | -40°C~+50°C(@25°C) |
|
Material |
Anti-corrosion Die Cast Aluminum Alloy |
|
Product Size(mm) |
377(L)x 321(W)x 91(H) |
|
Net Weight |
6.0 Kg/PCS. 1PCS/CTN |
|
Certificate |
CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC |
|
Warranty Period |
5 years,and 10 years @ conditions |
Description:
Ming Feng this high power flood light family ranging from 80W-600W, Advantages include custom design patented housing, multiple installation options. high lumen output and multiple application uses. Works not only as an excellent floodlight for sports elds and industrial areas but is also a perfect luminaire for billboard advertising.
The led driver comeswith 10kv SPD(Surge protection device)inside, which provides safety protection in a bad weather. With fully integrated heat sink is designed to specifically improve airflow and maximise heat dissipation to help reduce the operating temperature of the fitting, and improve reliability.
Comes with a waterproof rubber ring inside. its well-designed heat sink with fins helps air to flow and prevent waterto accumulatre. each led module is totally-enclosed. 90 deg preventing water to permeate. additionally, this 100W high power flood lightgets a IK10 impact-resistant grade, which provides better protection for outdoor usage.

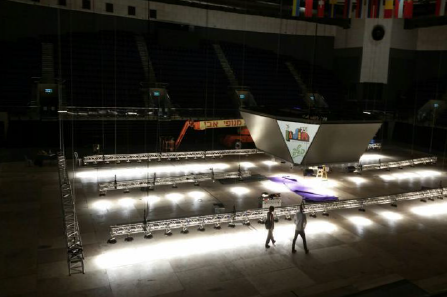

Application photos
