600W LED Construction Lamp Microwave 10KV Surge Protection For Area Lighting
600W LED contruction lights for construction zone,outside building,sporting area,sea port.
Data sheet download by clicking
Specifications:
|
Item |
MF-FL-600S |
|
Input voltage |
85-265Vac 50Hz/60Hz |
|
LED Power |
588W |
|
System Consumption |
600W |
|
Delivered Flux |
600x130lm,600x160lm |
|
IP Rating |
IP67 |
|
Beam Angle |
30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85° |
|
Color temperature |
3000K / 5000K / 6000K |
|
LED Chip |
Lumileds |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
Ra>80,70 as options |
|
Power Factor |
≧0.90 |
| Color of Housing | Black in stock, grey, white as options |
|
Lifespan |
1000,000hrs @ conditions, regular life span:50,000 hours, 9 years. |
|
Operation Environment |
Temperature:-30°C~45°C/Humidity:10%~90% |
| Storge Temperature | -40°C~+50°C(@25°C) |
|
Material |
Anti-corrosion Die Cast Aluminum Alloy |
|
Product Size(mm) |
763(L)x 506(W)x 148(H) |
|
Net Weight |
24.0 Kg/PCS. 1PCS/CTN |
|
Certificate |
CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC |
|
Warranty Period |
5 years,and 10 years @ conditions |
Competitive Advantage:
1.Lumileds chips, 130lm/w or 160lm/W, CRI up to Ra80. Junction temperature <75°C.
2.World Calss Brand, MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<15%.Built-in Mean well drivers, make the lamp safer for operation.
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.9 years @ 15 hours/day.
4.Adjustable to project aimed lighting area accurately.
5. Constant current design, much more reliable in life-span.
6. Japan secondary optical DIWL lens, light transmittance up to 92%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are available
8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
IP67 LED Construction light power range:
| Model Number | MF-FL-80S | MF-FL-100S | MF-FL-150S | MF-FL-200S | MF-FL-250S | MF-FL-300S | MF-FL-400S | MF-FL-500S | MF-FL-600S |
| Lumen Output | 10,400lm | 13,000lm | 19,500lm | 26,000lm | 32,500lm | 39,000lm | 52,000lm | 65,000lm | 78,000lm |
| Wattage | 80W | 100W | 150W | 200W | 250W | 300W | 400W | 500W | 600W |
| Luminous Efficiency | 130LM/W, 160LM/W for choose | ||||||||
| CCT | 2000K-6500K | ||||||||
| CRI | 70+, 80+ Ra for option | ||||||||
| Beam Angel | 30°, 60°, 90° , 120°, 60°x135°,85°x135° | ||||||||
| Inut voltage | 100-240Vac/180-528Vac, 50/60Hz PF>0.97 | ||||||||
| IR Rating | IP67 | ||||||||
| LED Driver | Meanwell | ||||||||
| HID Equivalent | 150-200W | 250W | 300-350W | 400-450W | 5000W | 600-700W | 800-900W | 1000-1100W | 1200-1500W |
| Certficated | ETL, SAA, CE, FCC, ROHS | ||||||||

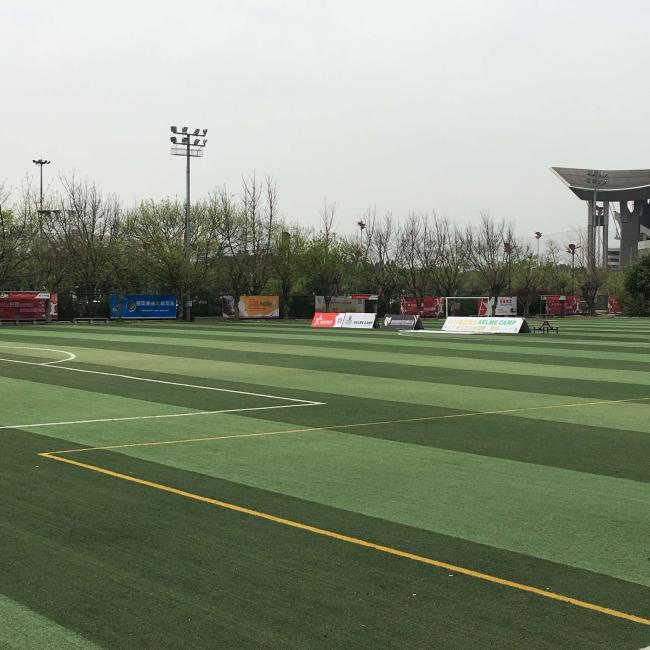

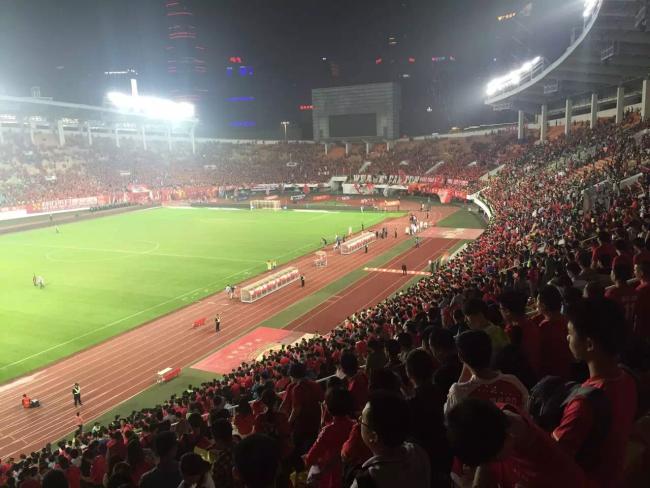

Application photos
