500W K5 87500LM Linear LED High Bay Sensor Dimming Aviation Aluminum


Quick Detail:

Product Code:MF-HB500W-K5
Power:500W
Luminous flux:170Lm/W
Color : >80Ra
LED Brand:3030SMD
Input voltage: DC36V-48V
Color temperature options: warm white (2700-3000K), neutral white (4000-4500K),
cool white (6000-6500K)
Other light color options:Customized
Protection class:IP54
Light body material: 6063 aluminum
ervice life: 100,000 hours


Description:


*High luminous efficacy up to 175lm/w.

*Separate heat sink for led driver and led chip

*Itelligent lighting: Zigbee wireless control, daylight sensor dimming, microwave sensor dimming, three in one(0-10v,PWM, resistance) dimming available.

*Colorful housing can be customized.

Specifications:




 Competitive Advantage:

Thinner and lighter housing Using high heat-conducting aviation aluminium materialsisolating light source and led driver to reduce light loss and increase power factor of led driver.

There is a junction box alongside the fixture for preventing wiring exposed outside. It is safer practice and complied with wiring code.

The lenses are fixed by snap with less screws which makes assembling very conveniently.

With integral waterproof ruber around lens and rubber plug designed in outlet terminal, IP rating up to IP54 Three-dimensional diamond light guide technoligy.

3030 SMD LED chip, high lumen 175lm/w

Aviation aluminum, customizable colors

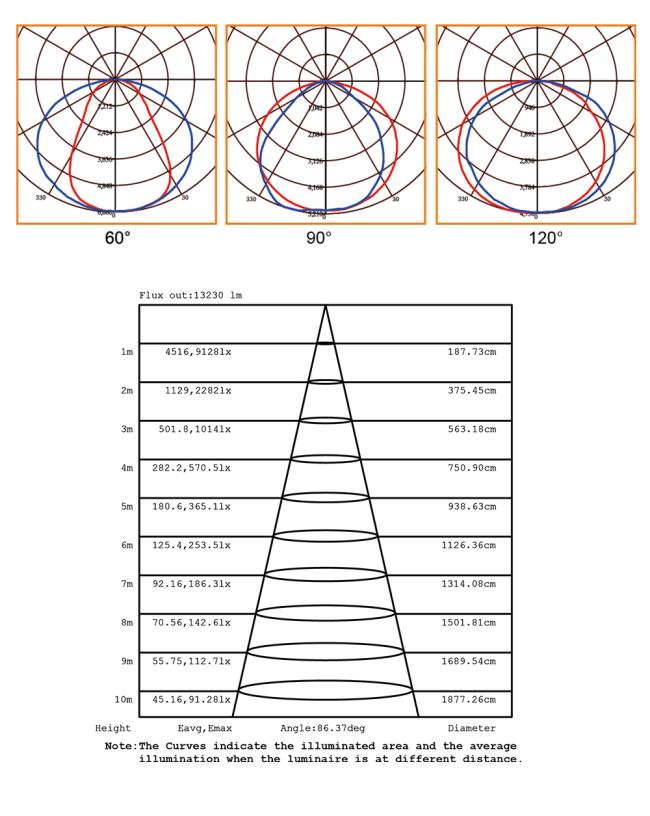

Technical data:

Applications:

Widely use in Factory, Workshop, Warehouse, Logistics Center, Exhibition Hall, Stadium, Gas Station, Supermarket ......
