PZT Piezoelectric Ultrasonic Transducer To Clean Waste Vegetable Oil

PZT Piezoelectric Ultrasonic Transducer To Clean Waste Vegetable Oil


Description

·    The piezoelectricity part of the performance is guarantees the ultrasonic converter performance the foundation.Must choose d₃₃ high,Kp high, Qm high and tgδ low of the piezoelectricity part.

·     Contains filling the type piezoelectric transducer assembly to give the stress to have enough to be big.According to"Traditional Theory"gives the stress not to be able to obtain the ultrasonic converter maximal amplitude and the optimum electricity—sound transfer efficiency~This company piezoelectric ultrasonic converter assembly gives to the stress to be at"controls"the optimum condition.

·     The amplitude pole choice of material and the melting craft are very import--obtains the low mechanical wear-transducer to give off heat as far as possible under the great oscillation amplitude active status really micro.

·      The ultrasonic converter under the supersonic power source actuation,works to resonance point nearby,this time the ultrasonic converter impedance smallest and the efficiency is highest.The ultrasonic converter another characteristic(in particular processing class transducer)must cause the resistance of resonance oppose to be as far as possible high,so the craft should take the special measure.

·     The ultrasonic converter(sonotrode)is bigger when the cross wise size,should take the many kinds of measures,eliminates the vibrate transversely,Causes ultrasonic Wave as lar as possible masny direction is launcned.

Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.


Naming methods as following:

CCH-6845D-28LA

CCH:  Cheng cheng weiye

68: Diameter of radiating face (mm)

45: Diameter of piezoceramics(mm)

D: double piezoceramics

28:Resonance frequency

L: Horn

A: No-screw hole

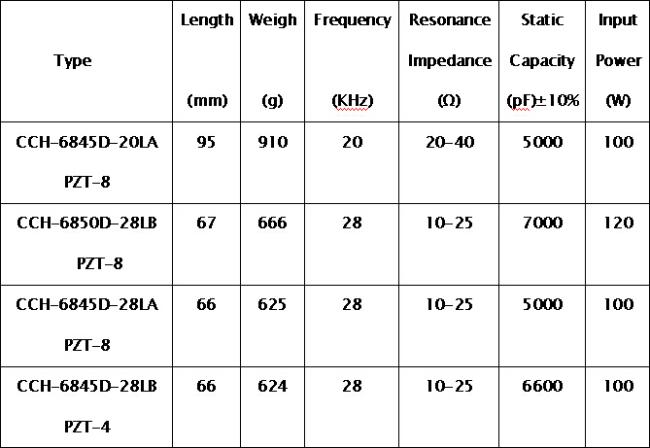

Specifications

Ultrasonic cleaning transducer for Ultrasonic cleaning machine
