Modern Moveable Accents Holiday Modular Home / Prefabricated Garden Studio For Holiday Living
Modern Moveable Accents Holiday Modular Home / Prefabricated Garden Studio For Holiday Living
Quick Detail:
|
Name |
holiday home |
Application |
Some house for holiday living |
|
Color |
Yellow,white,etc depend on customer’s request |
Feature |
1.U.K engineer approved; |
|
Material |
light steel frame and other parts material |
Certificate |
CE,ISO,SAA,ETC |
Description:
Main structure: Light Gauge Steel
Wall cladding: WPC cladding
Insulation material: glass wool or also EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Roof: EPS sandwich panel/steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet,washbasin,shower,kitchen etc.
Life time: 100 years for structure
Applications:
toilet,washbasin,shower,kitchen,study room etc.
Specifications
Home accents holiday :
ISO standard light gauge steel for main structure.one or two also three floors available.fireproof,heat insulation,wind and earthquake resistance.green,energy save. economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance:all the materials used can be fire resistance.
5)Snow resistance:max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide:dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

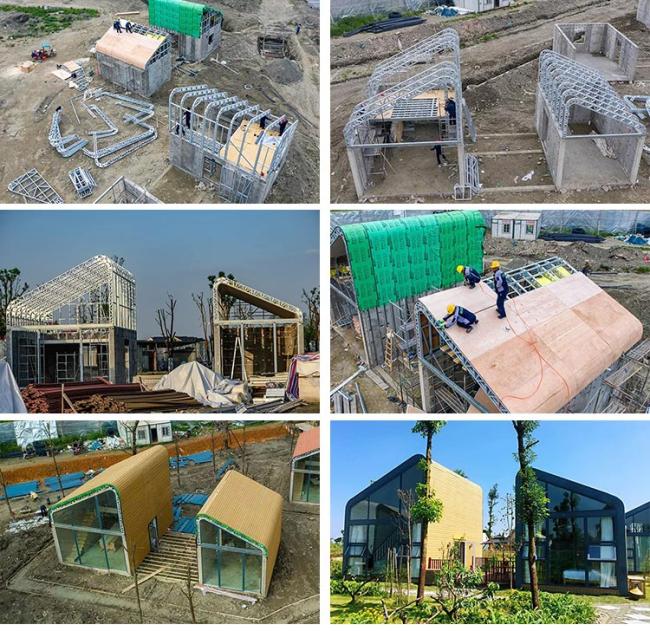

How The House Build:
Company information
Deepblue Prefab Villa is based on the most advanced Light Gauge Steel Frame Technology, our products
Service Process
customized design service & personalized option
If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.
We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.
DeepBlue Smarthouse
The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere we provide you with first-for our customers, that's our commitment to you.
Packaging & Shipping
Granny Flat's packing:well packed export quality package ,shipped by 40hq.
Your first choice,Deepblue Prefabricated house in China.
