Steel Structural Prefab Retirement Center Typhoon Resistance Light Gauge Steel Bungalow
Steel Structural Prefab Retirement Center Typhoon Resistance Light Gauge Steel Bungalow
Quick Detail:
| Name | prefabricated villa | Application | Villa for living |
| Color | According to your material choice | Feature |
1.quickly to assemble on-site; 2.good earthquake proof; 3.green, and energy saving; |
| Material | light steel and other parts material | Certificate | CE,ISO,SAA,ETC |
Description:
Main structure: Light Gauge Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
Insulation material: Insulation material-glass wool
Ceiling material: gypsum board with painting
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy window
Roofing: steel sheet roofing/asphalt shingle
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
Applications:
ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance. green, energy save. also economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm, Z275galvanized steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

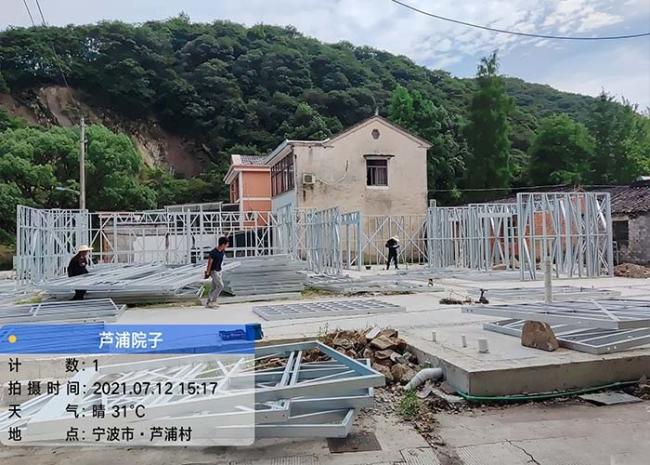

How To Assemble:
Design code:
(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area, how many floor and bedrooms,luxury or normally,or low cost configuation.
We Can Provide You:villa;bungalw; low-cost house;granny flat;apartment etc.many buildings.
Company Information
The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere, we provide you with first-for our customers, that's our commitment to you.
Packaging & Shipping
Granny Flat's packing: well-packed export quality package,shipped by 40hq.
