BLDC Planetary Gear Motor Built In Driver With 22mm OD Planetary Gearbox 12 Poles
Permissible Load Range: 0.03N.m~0.3N.m
Brushless Motor Technical Data
| TYPE | Number of poles |
Number of phase |
Operating Range |
Rated voltage VDC |
No- load speed r/min |
No- load current mA |
Rated torque g.cm |
Rated speed r/min |
Rated current mA |
Rated power W |
|||||||||||||
| B2418-1275 | 12 | 3 | 9V~ 16V | 12 | 7500 | 100 | 30 | 5800 | 320 | 1.8 | |||||||||||||
| B2418-2475 | 12 | 3 | 9V~26V | 24 | 7500 | 85 | 30 | 5800 | 200 | 1.8 | |||||||||||||

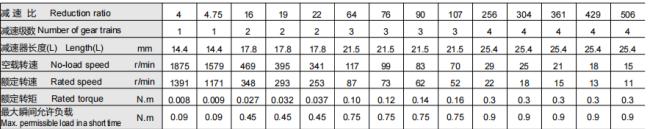

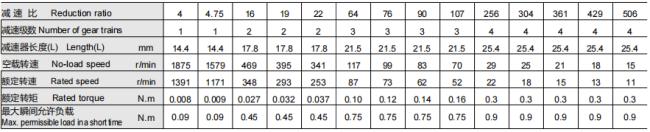

Brushless Gear Motor Technical Data
1.B2418-1275 BLDC Motor
2.B2418-2475 BLDC Motor
Wire Diagram
PIN 1# (White)PWM speed regulation: Input a 1~50kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 2# (Black)Negative pole of power supply
PIN 3# (Blue)Forward and Reverse Rotation: Suspended steering is CCW, short circuited to ground steering is CW.
PIN 4# (Yellow)Feedback n=60 * F/P, where F is the feedback frequency and P is 4 pairs of motor pole pairs.
PIN 5# (Red) Positive pole of power supply
Note:
(1) Connect the red wire to the positive terminal of the power supply, and connect the black and white wires to the negative terminal. The motor will rotate counterclockwise (CCW).
(2) Connect the red wire to the positive terminal of the power supply, and connect the black, white, and blue wires to the negative terminal. The motor will rotate clockwise (CW).
(3) Connect the white wire to the negative terminal. The motor will run at full speed. When the white wire is connected to PWM separately, the speed can be adjusted.
(4) Connection line length 100mm
