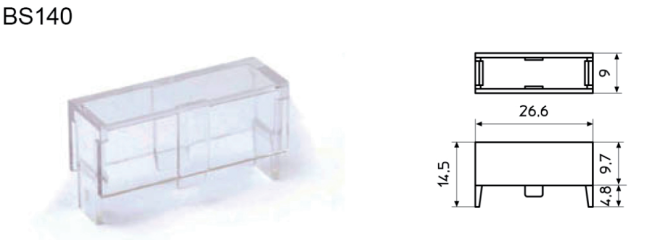

5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140
Price:
0.2~0.5 USD/PC
MOQ:
1000pcs
Delivery Time:
7 WORKDAYS
Brand:
UCHI
Product Description
5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140
Description
Fuse Clips 5x20mm glass fuses, Solder Tabs, Horizontal Mount, 22mm Pin to Pin Spacing, 10 Amp, 250 Volt,
PTF-15 are fuse clips for 5 x 20 mm glass fuses. They are economic PCB mount fuses. It has a 22mm pin to pin spacing. PTF-15 is the most cost effective solution.
Specification
| Part Number | PTF-15 |
| Color | Beige |
| Current Rating (A) | 10A |
| Mount | Horizontal Open |
| Operating Temperature | -30° - +85°C |
| Spacing | 22 mm (0.866") |

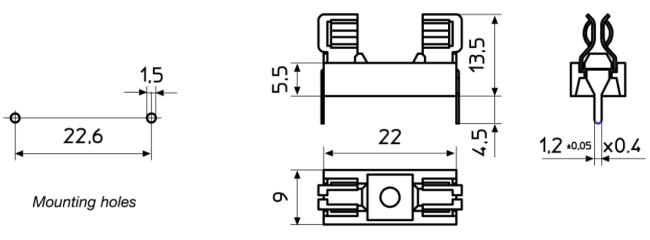

Dimension (mm)
| fuse holder | |
| cylindrical fuses | |
| THT | |
| 5x20mm | |
| -30...85°C | |
| 6.3A | |
| thermoplastic | |
| UL94V-1 | |
| 22.6mm | |
| yellow | |
| 250V AC | |
| 5mΩ | |
| ZHL31H | |
| len. 4.5mm | |
| Ø1.5mm | |
| for PCB, straight | |
| 22x13.5x9mm |
- Gross weight: 1.725 g
- Manufacturer part number: PTF/15

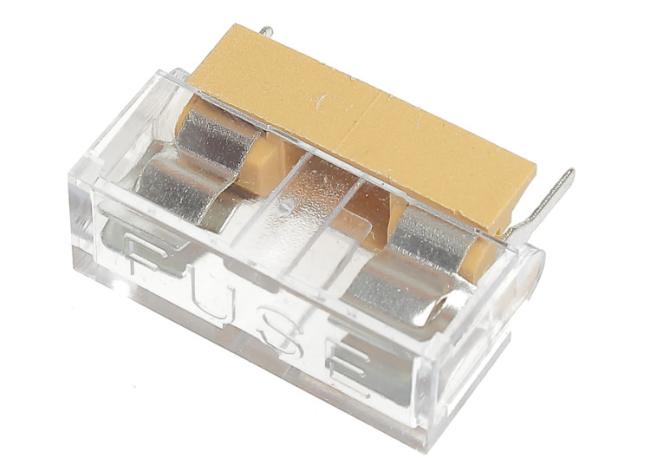

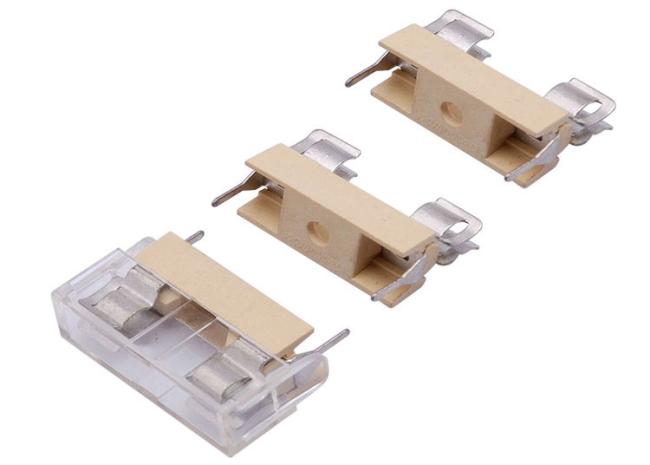

Product Photo

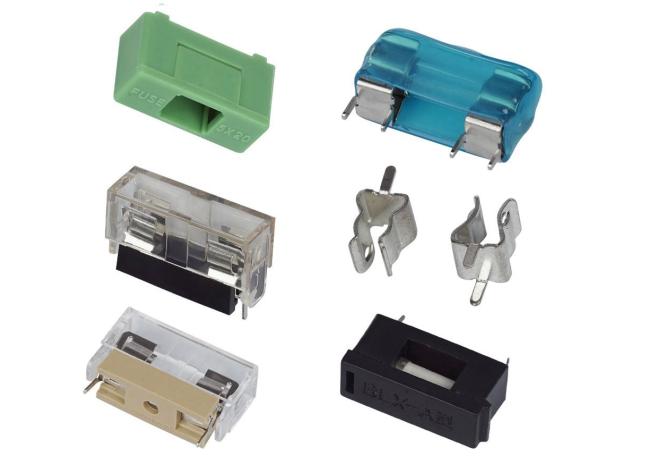

Similar Products
